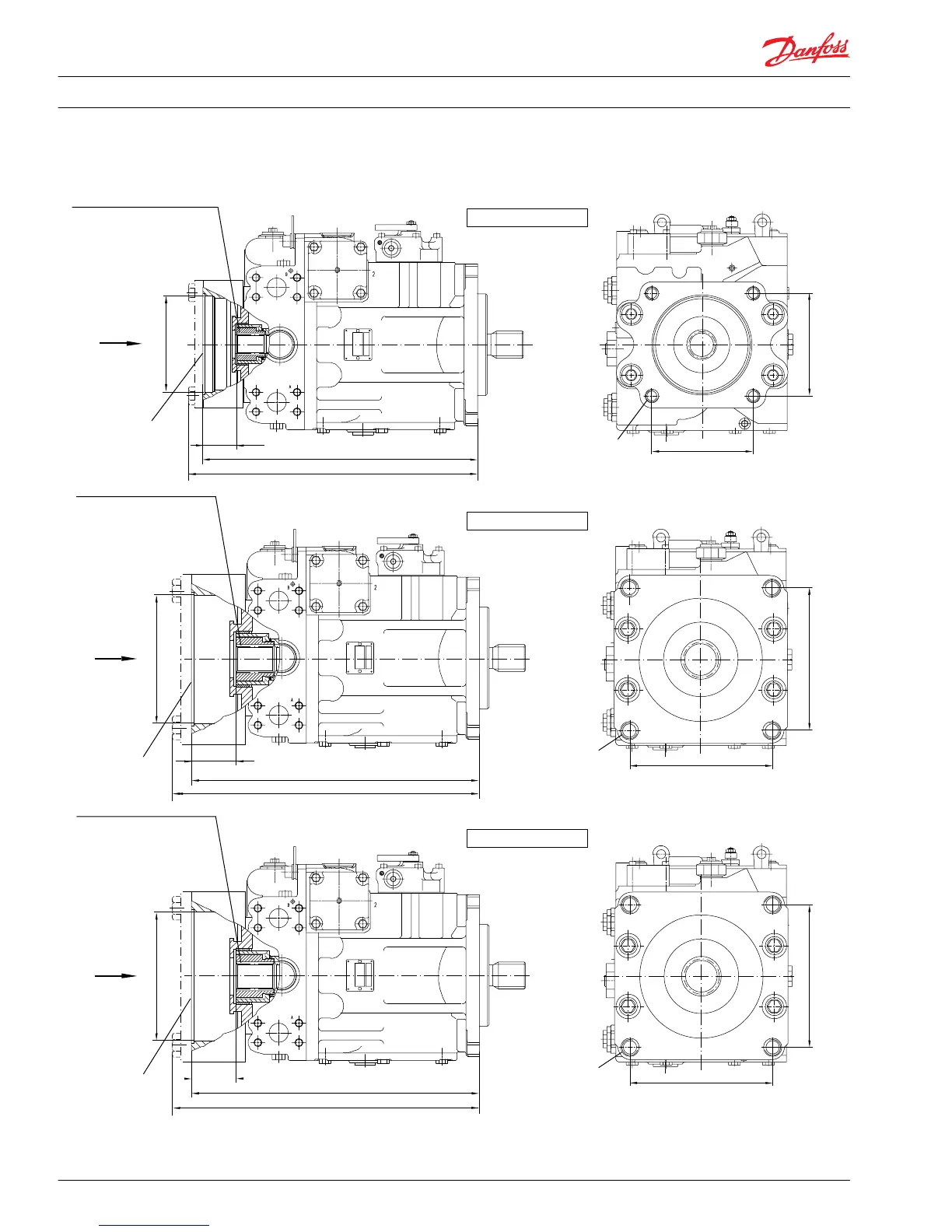

Auxiliary mounting pad - options AB, BC, CD, DE, EF, EG, BB
View "X"
View "X"
SAE E, option EF
View "X"
SAE E, option EG
SAE D, option DE
"X"
464.8
[18.30]
448.1
[17.64]
For O-ring
Ø 153 x 3.0
[Ø 6.02 x 0.118]
Coupling spline data:
Pitch diameter = 41.275 [1.625]
Pressure angle = 30°
Number of teeth = 13
Pitch = 8/16
ANSI B92.1-1970, class 6,
fillet root side fit
Length of spline = 25.9 [1.02]
+ 0.13 - 0.00
[+0.005] [- 0.000]
Ø152.45
[Ø 6.002]
49.9
[1.96]
For O-ring
Ø 158.42 x 2.62
[6.24 x 0.10]
"X"
Coupling spline data:
Pitch diameter = 41.275 [1.625]
Pressure angle = 30°
Number of teeth = 13
Pitch = 8/16
ANSI B92.1-1970, class 6,
fillet root side fit
Length of spline = 25.9 [1.02]
46.5
[1.83]
Ø 165.15
[Ø 6.501]
+ 0.13 - 0.00
[+0.005]
[- 0.000]
448.1
[17.64]
For O-ring
Ø 164.77 x 2.62
[Ø 6.48 x 0.10]
"X"
Coupling spline data:
Pitch diameter = 42.862 [1.687]
Pressure angle = 30°
Number of teeth = 27
Pitch = 16/32
ANSI B92.1-1970, class 6,
fillet root side fit
Length of spline = 28.5 [1.12]
49.9
[1.96]
Ø 165.15
[Ø 6.501]
+ 0.13 - 0.00
[+0.005]
[- 0.000]
473.1
[18.63]
P102 059
224.5
[8.84]
224.5
[8.84]
4 threads
3/4-10UNC-2B
41 [1.61] deep
224.5
[8.84]
224.5
[8.84]
4 threads
3/4-10UNC-2B
41 [1.61] deep
161]6
[6.36]
161.6
[6.36]
4 threads
3/4-10UNC-2B
41 [1.61] deep
448.1
[17.64]
473.1
[18.63]
Technical Information Series 90 Axial Piston Pumps
Installation Drawings
76 520L0603 • Rev 0804 • March 2016
