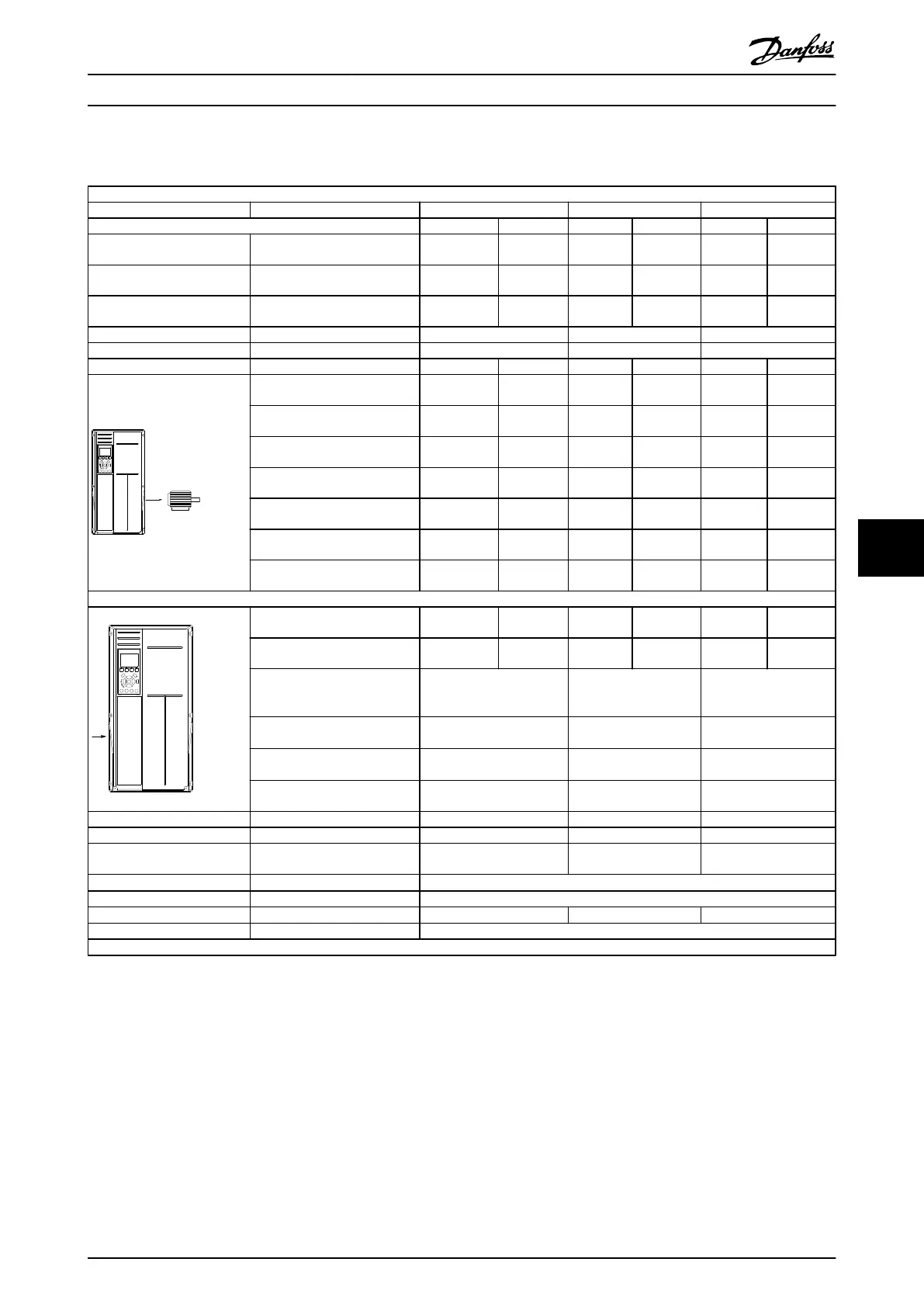

8.1.1 Mains Supply 3x380-480 V AC - High Power
Mains Supply 3x380-480 VAC
P132 P160 P200
High/ Normal Load* HO NO HO NO HO NO
Typical Shaft output at 400 V
[kW]
132 160 160 200 200 250
Typical Shaft output at 460 V
[HP]
200 250 250 300 300 350
Typical Shaft output at 480 V
[kW]
160 200 200 250 250 315
Enclosure IP21 D13 D13 D13
Enclosure IP54 D13 D13 D13
Output current
Continuous
(at 400 V) [A]
260 315 315 395 395 480
Intermittent (60 s overload)
(at 400 V) [A]
390 347 473 435 593 528
Continuous
(at 460/ 480 V) [A]
240 302 302 361 361 443
Intermittent (60 s overload)
(at 460/ 480 V) [A]
360 332 453 397 542 487
Continuous KVA
(at 400 V) [KVA]
180 218 218 274 274 333
Continuous KVA
(at 460 V) [KVA]
191 241 241 288 288 353
Continuous KVA
(at 480 V) [KVA]
208 262 262 313 313 384
Max. input current
Continuous
(at 400 V ) [A]
251 304 304 381 381 463
Continuous
(at 460/ 480 V) [A]
231 291 291 348 348 427
Max. cable size, mains motor,
brake and load share [mm
2
(AWG
2)
)]
2x185
(2x300 mcm)
2x185
(2x300 mcm)
2x185
(2x300 mcm)
Max. external mains fuses [A]
1
400 500 630
Estimated motor power loss
at 400 V [W]
4)
4029 5130 5621
Estimated motor power loss
at 460 V [W]
3892 4646 5126
Estimated filter losses, 400 V 4954 5714 6234
Estimated filter losses, 480 V 5279 5819 6681
Weight,
enclosure IP21, IP54 [kg]
380 380 406
Efficiency
4)
0.96
Output frequency 0-800 Hz
Heatsink overtemp. trip 110° C 110° C 110° C
Power card ambient trip 60° C
* High overload = 160% torque during 60 s, Normal overload = 110% torque during 60 s
Table 8.1
