Mains Supply 3x380-480 VAC
P250 P315 P355 P400
High/ Normal Load* HO NO HO NO HO NO HO NO
Typical Shaft output at
400 V [kW]
250 315 315 355 355 400 400 450
Typical Shaft output at
460 V [HP]
350 450 450 500 500 600 550 600
Typical Shaft output at
480 V [kW]
315 355 355 400 400 500 500 530
Enclosure IP21 E9 E9 E9 E9
Enclosure IP54 E9 E9 E9 E9
Output current
Continuous
(at 400 V) [A]
480 600 600 658 658 745 695 800
Intermittent (60 s
overload)
(at 400 V) [A]
720 660 900 724 987 820 1043 880
Continuous
(at 460/ 480 V) [A]
443 540 540 590 590 678 678 730
Intermittent (60 s
overload)
(at 460/ 480 V) [A]
665 594 810 649 885 746 1017 803
Continuous KVA
(at 400 V) [KVA]
333 416 416 456 456 516 482 554
Continuous KVA
(at 460 V) [KVA]
353 430 430 470 470 540 540 582
Continuous KVA
(at 480 V) [KVA]
384 468 468 511 511 587 587 632
Max. input current
Continuous
(at 400 V ) [A]
472 590 590 647 647 733 684 787
Continuous
(at 460/ 480 V) [A]
436 531 531 580 580 667 667 718
Max. cable size, mains,
motor and load share
[mm
2
(AWG
2)
)]
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
Max. cable size, brake
[mm
2
(AWG
2)
)
2x185
(2x350 mcm)
2x185
(2x350 mcm)
2x185
(2x350 mcm)
2x185
(2x350 mcm)
Max. external mains
fuses [A]
1
700 900 900 900
Estimated motor power
loss
at 400 V [W]
4)
6704 7528 8671 9469
Estimated motor power
loss
at 460 V [W]
5930 6724 7820 8527
Estimated filter losses,
400 V
6607 7049 7725 8234
Estimated filter losses,
460 V
6670 7023 7697 8099
Weight,
enclosure IP21, IP54 [kg]
596 623 646 646
Efficiency
4)
0.96
Output frequency 0-600 Hz
Heatsink overtemp. trip 110° C
Power card ambient trip 68° C
* High overload = 160% torque during 60 s, Normal overload = 110% torque during 60 s

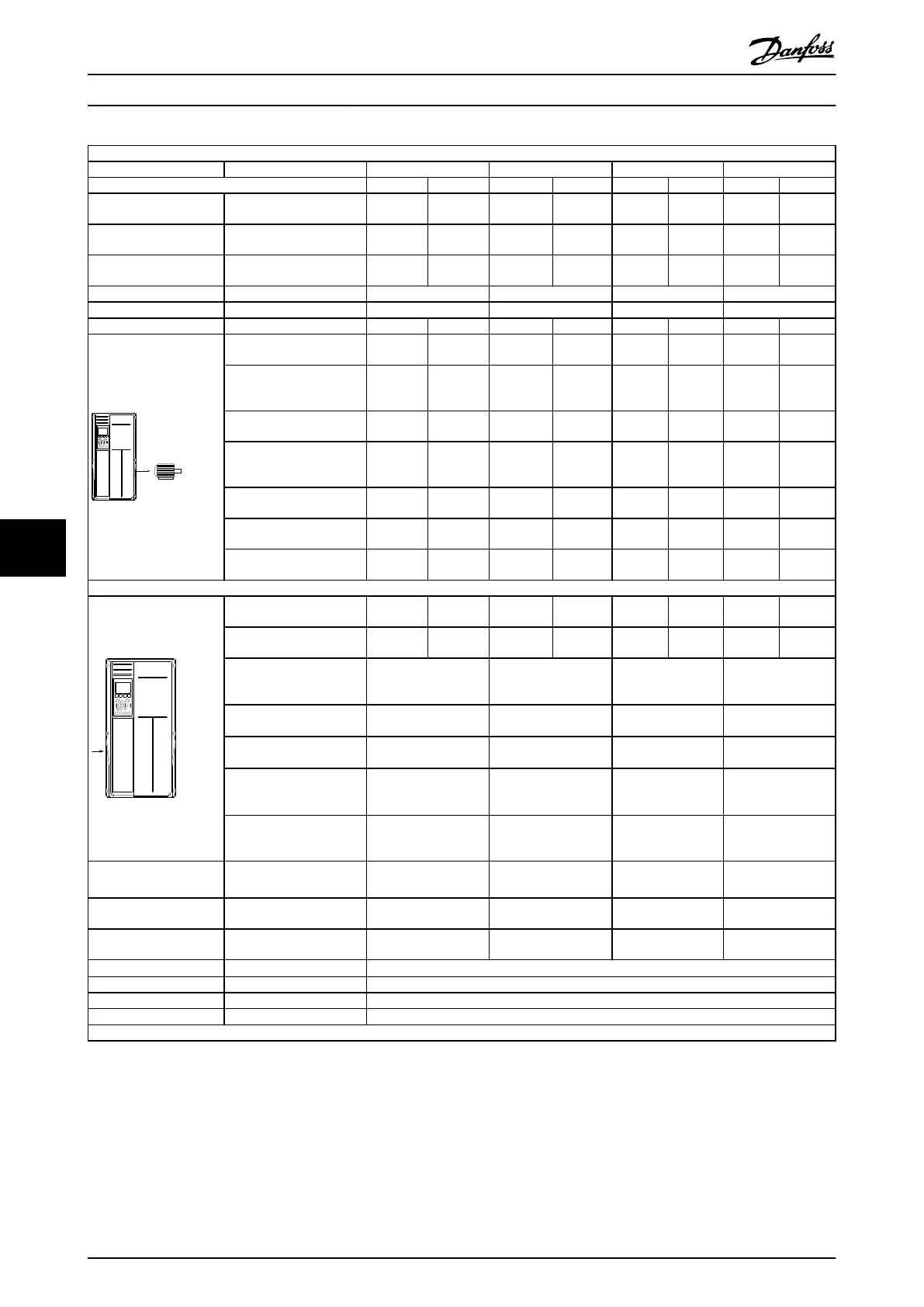

Table 8.2
General Specifications VLT Automation Low Harmonic Drive Operating Instructions
