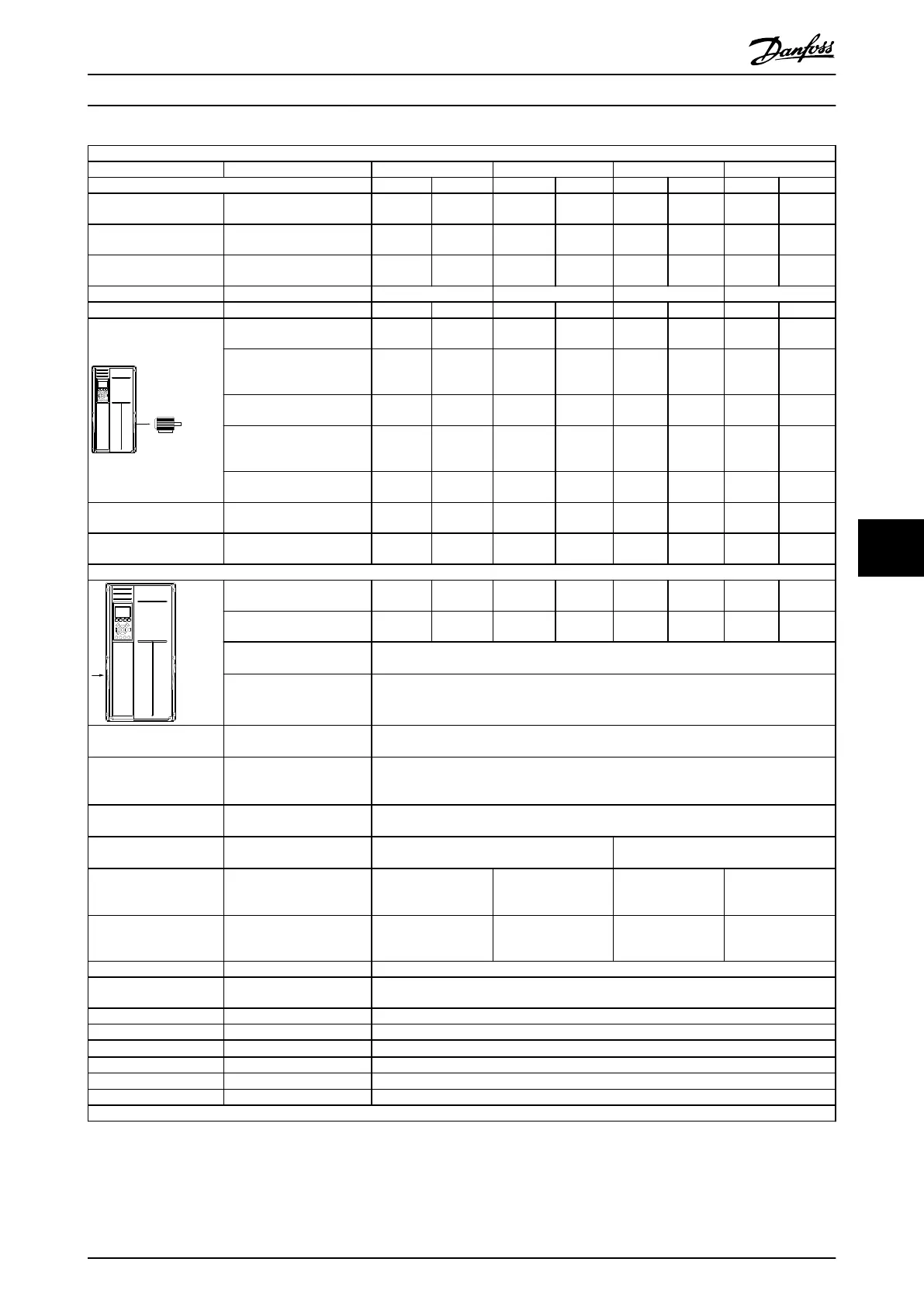

Danfoss VLT AutomationDrive FC 300 User Manual

Mains Supply 3x380-480 V AC
P450 P500 P560 P630
High/ Normal Load* HO NO HO NO HO NO HO NO
Typical Shaft output at
400 V [kW]
450 500 500 560 560 630 630 710
Typical Shaft output at
460 V [HP]
600 650 650 750 750 900 900 1000
Typical Shaft output at
480 V [kW]
530 560 560 630 630 710 710 800
EnclosureIP21, 54 F18 F18 F18 F18
Output current
130BA230.10
Continuous
(at 400 V) [A]
800 880 880 990 990 1120 1120 1260
Intermittent (60 s
overload)
(at 400 V) [A]
1200 968 1320 1089 1485 1232 1680 1386
Continuous
(at 460/ 480 V) [A]
730 780 780 890 890 1050 1050 1160
Intermittent (60 s
overload)
(at 460/ 480 V) [A]
1095 858 1170 979 1335 1155 1575 1276
Continuous KVA
(at 400 V) [KVA]
554 610 610 686 686 776 776 873
Continuous KVA
(at 460 V) [KVA]
582 621 621 709 709 837 837 924
Continuous KVA
(at 480 V) [KVA]
632 675 675 771 771 909 909 1005
Max. input current
130BA229.10
Continuous
(at 400 V ) [A]
779 857 857 964 964 1090 1090 1227
Continuous (at 460/ 480
V) [A]
711 759 759 867 867 1022 1022 1129
Max. cable size,motor
[mm
2
(AWG
2)
)]
8x150
(8x300 mcm)
Max. cable size,mains
F1/F2 [mm
2
(AWG
2)
)]
8x240
(8x500 mcm)
Max. cable size,mains
F3/F4 [mm
2
(AWG
2)
)]
8x456
(8x900 mcm)
Max. cable size,
loadsharing [mm
2
(AWG
2)
)]
4x120
(4x250 mcm)
Max. cable size, brake
[mm
2
(AWG
2)
)
4x185
(4x350 mcm)
Max. external mains fuses
[A]
1
1600 2000
Estimated motor power
loss
at 400 V [W]
4)
10647 12338 13201 15436
Estimated motor power
loss
at 460 V [W]
9414 11006 12353 14041
Max. panel options losses 400
Weight,
enclosure IP21, IP54 [kg]
2009
Weight drive section [kg] 1004
Weight filter section [kg] 1005
Efficiency
4)
0.96
Output frequency 0-600 Hz
Heatsink overtemp. trip 95° C
Power card ambient trip 68° C
* High overload = 160% torque during 60 s, Normal overload = 110% torque during 60 s
Table 8.3
1) For type of fuse see
4.6.14 Fuses.
2) American Wire Gauge.
3) Measured using 5 m screened motor cables at
rated load and rated frequency.
