1
2
3
4
5
130BC208.10

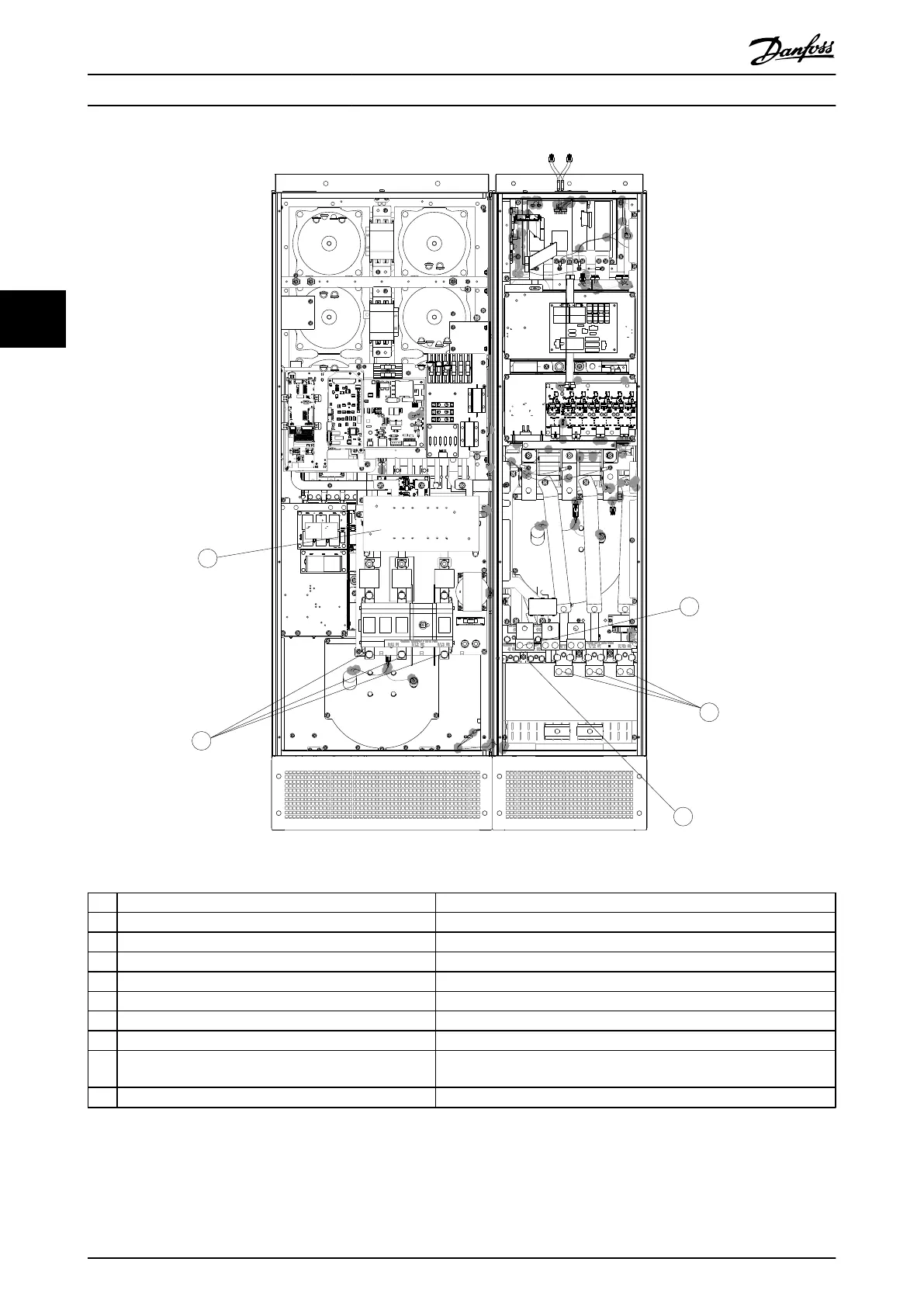

Illustration 4.25 Frame size D13
1)
RFI 4) Motor
2) Line U V W
R S T 96 97 98
L1 L2 L3 T1 T2 T3
3) Brake option 5) Load sharing option
-R +R -DC +DC
81 82 88 89
6) AUX Fan
100 101 102 103
L1 L2 L1 L2
Table 4.15
How to Install VLT Automation Low Harmonic Drive Operating Instructions
36 MG34O202 - VLT
®
