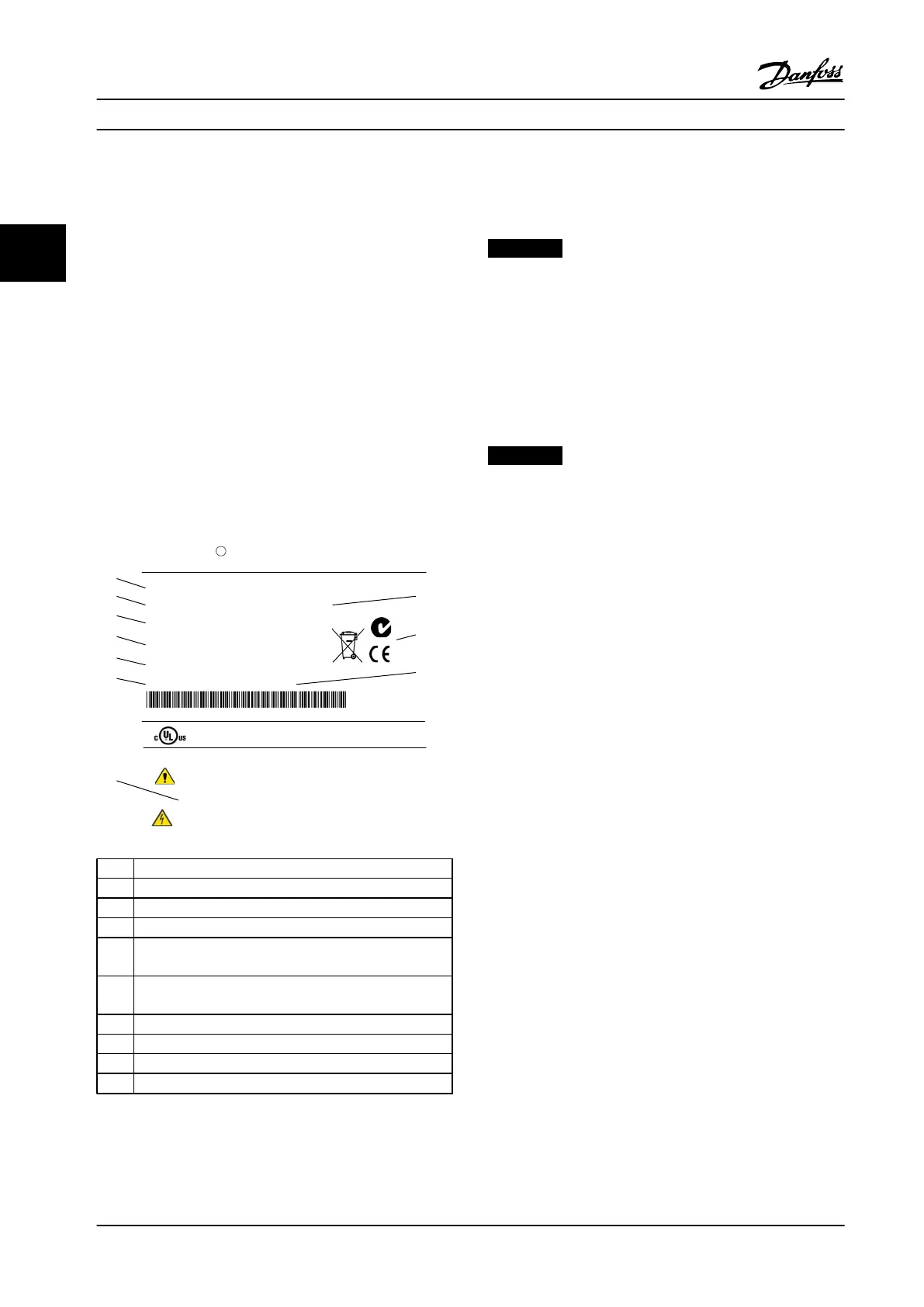

Danfoss VLT AutomationDrive FC 301 Instruction Manual

3 Mechanical Installation
3.1 Unpacking
3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure the items supplied and the
information on the nameplate correspond to the
order confirmation.
•
Check the packaging and the adjustable
frequency drive visually for damage caused by
inappropriate handling during shipment. File any
claim for damage with the carrier. Retain
damaged parts for clarification.
130BD600.10
CHASSIS/ IP20 Tamb.50 C/122 F
V LT
MADE IN DENMARK
R
P/N: 131X3537 S/N: 010122G430
0.37kW/ 0.50HP
IN: 3x200-240V 50/60Hz 2.2A
OUT: 3x0-Vin 0-1000Hz 2.4A
o
CAUTION:
See manual for special condition/mains fuse
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 4 min.
Charge residuelle, attendez 4 min.
* 1 3 1
X
3 5 3 7 0 1 0 1 2 2 G 4 3 0 *
`
Automation Drive
www.danfoss.com
T/C: FC-302PK37T2E20H1BGXXXXSXXXXA6BKC4XXXD0
Listed 76X1 E134261 Ind. Contr. Eq.
o
`
1
2
4
5
6
7
8
9
10
3
1 Type code
2 Order number
3 Serial number
4 Power rating
5
Input voltage, frequency and current (at low/high
voltages)
6
Output voltage, frequency and current (at low/high
voltages)
7 Enclosure type and IP rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)
Figure 3.1 Product Nameplate (Example)
NOTICE!
Do not remove the nameplate from the adjustable
frequency drive (loss of warranty).
3.1.2 Storage
Ensure that the requirements for storage are fulfilled. Refer
to chapter 8.4 Ambient Conditions for further details.
3.2 Installation Environments
NOTICE!
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
the lifetime of the adjustable frequency drive. Ensure
that requirements for air humidity, temperature, and
altitude are met.
Vibration and shock
The adjustable frequency drive complies with requirements
for units mounted on the walls and floors of production
premises, as well as in panels bolted to walls or floors.
For detailed ambient conditions specifications, refer to
chapter 8.4 Ambient Conditions.
Mechanical Installation Instruction Manual
10 Danfoss A/S © Rev. 09/2014 All rights reserved. MG33AP22
33
