NOTICE!
During start-up, the LCP displays the message
INITIALIZING. When this message is no longer displayed,
then the adjustable frequency drive is ready for
operation. Adding or removing options can extend the
duration of start-up.
5.3.2 LCP Layout
The LCP is divided into four functional groups (see
Figure 5.1).
A. Display area
B. Display menu keys
C. Navigation keys and LEDs
D. Operation keys and reset
130BD598.10
Auto
on
Reset
Hand
on
Off
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(1)
36.4 kW
Auto Remote Ramping
0.000
On
Alarm
Warn.
A
7.83 A
799 RPM
B
C
D
53.2 %
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19 20 21

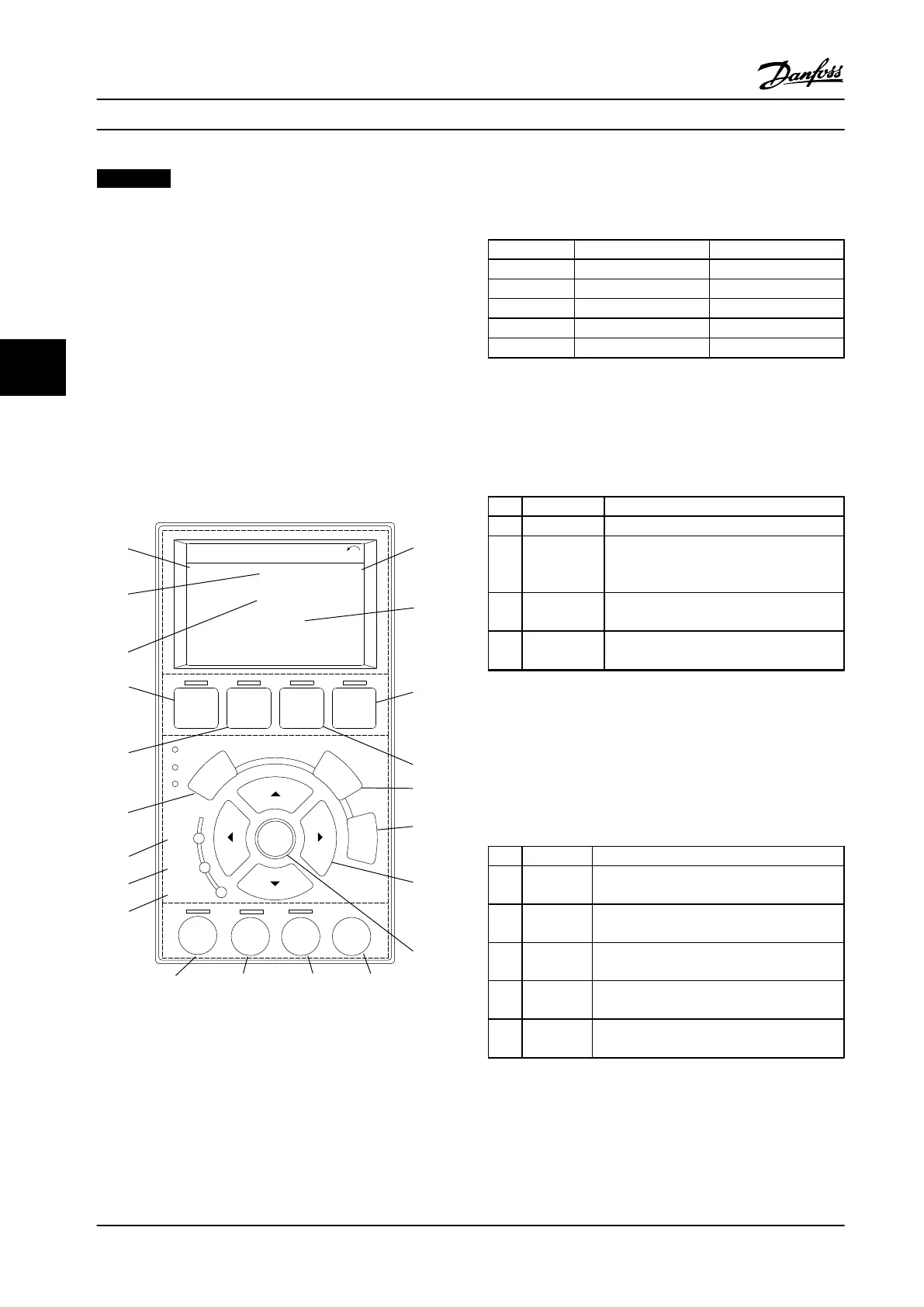

Figure 5.1 Local Control Panel (LCP)
A. Display area
The display area is activated when the adjustable
frequency drive receives power from the AC line voltage, a
DC bus terminal, or an external 24 V DC supply.
The information displayed on the LCP can be customized
for user application. Select options in the Quick Menu
Q3-13 Display Settings.
Display Parameter number Default setting
1 0-20 Speed [RPM]
2 0-21 Motor Current
3 0-22 Power (hp [kW])
4 0-23 Frequency
5 0-24 Reference [%]
Table 5.1 Legend to Figure 5.1, Display Area
B. Display menu keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key Function
6
Status
Shows operational information.
7
Quick Menu
Allows access to programming parameters
for initial set-up instructions and many
detailed application instructions.
8
Main Menu
Allows access to all programming
parameters.
9
Alarm Log
Displays a list of current warnings, the last
ten alarms, and the maintenance log.
Table 5.2 Legend to Figure 5.1, Display Menu Keys
C. Navigation keys and LEDs
Navigation keys are used for programming functions and
moving the display cursor. The navigation keys also
provide speed control in local operation. There are also
three adjustable frequency drive status indicator lights in
this area.
Key Function
10
Back
Reverts to the previous step or list in the
menu structure.
11
Cancel
Cancels the last change or command as long
as the display mode has not changed.
12
Info
Press for a definition of the function being
displayed.
13
Navigation
Keys
Use the four navigation keys to move
between items in the menu.
14
OK
Use to access parameter groups or to enable
a selection.
Table 5.3 Legend to Figure 5.1, Navigation Keys
Commissioning
Instruction Manual
24 Danfoss A/S © Rev. 09/2014 All rights reserved. MG33AP22
