Danfoss VLT AutomationDrive Manual

VLT
®
AutomationDrive EtherNet/IP
MG.90.Jx.02 ver. 5
th
September 2007 – VLT is a registered Danfoss trademark 11
Recommended Design Rules
While designing Ethernet networks special caution regarding active networks components must be
taken.
While designing a network in line topology it is important to notice that a small delay is added with
every switch in the line.

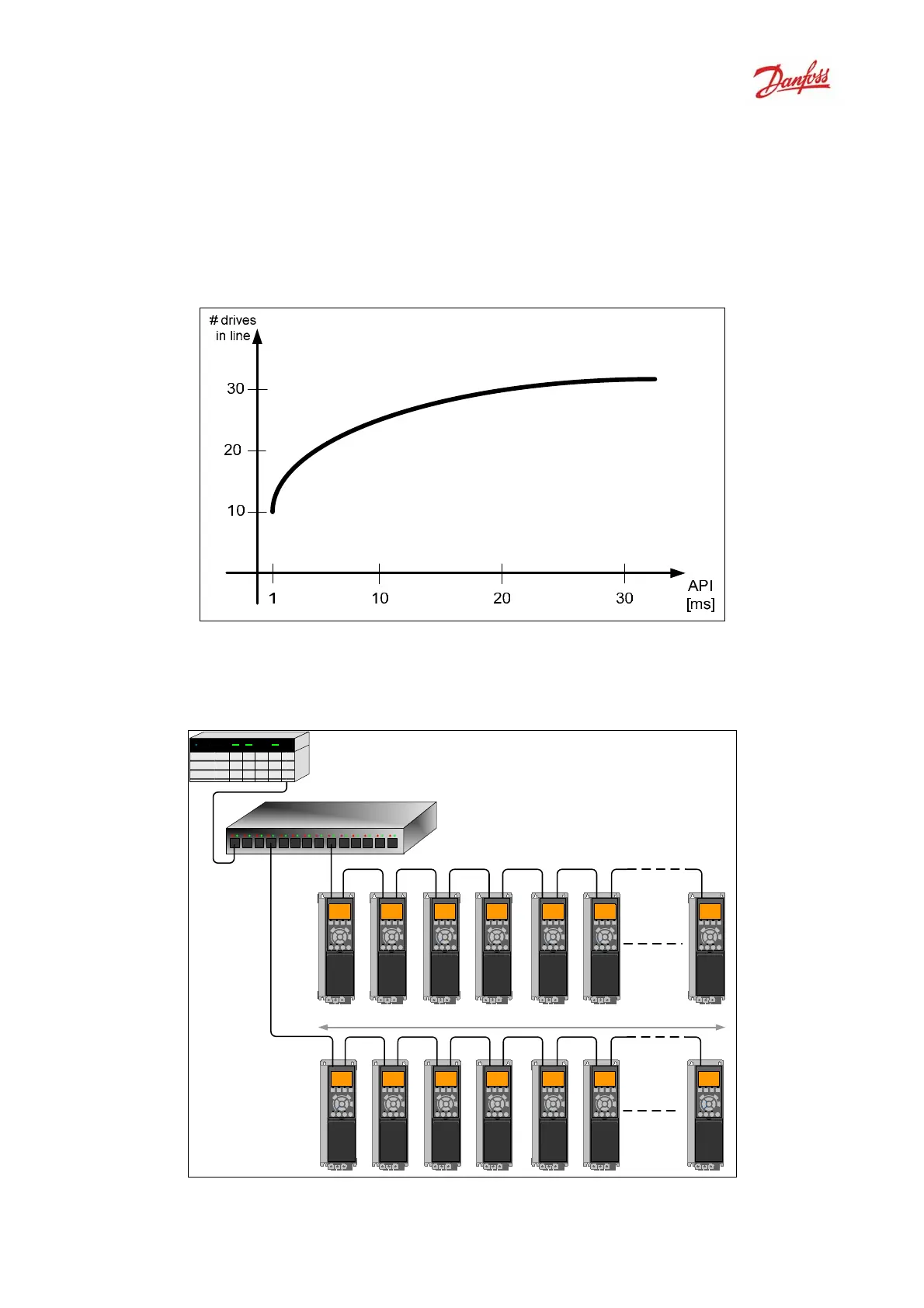

For EtherNet/IP the maximum number of drives in a line is dependent of the API speed of the
connected scanner:
According to the graph above, the network should thus be segmented with the use of external
Ethernet switches.
It is not recommended to connect more than 32 drives in a line at any API.
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
AutomationDrive
VLT
Max. 32 drives

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
