How to Control the FC 300
I/O Assembly Instances
I/O Assembly Instances are a number of defined process control objects with defined content
comprising control and status information.
Unlike DeviceNet it is possible to run with asymmetrical instances. E.g. 101/153 = 8 bytes/20 bytes.
It is not possible to mix instances across profiles, e.g. 20/100.
Assembly instances must consistent to the profile: ODVA or FC profile
The controlling instance can be read in par. 12-20 Control Instance.

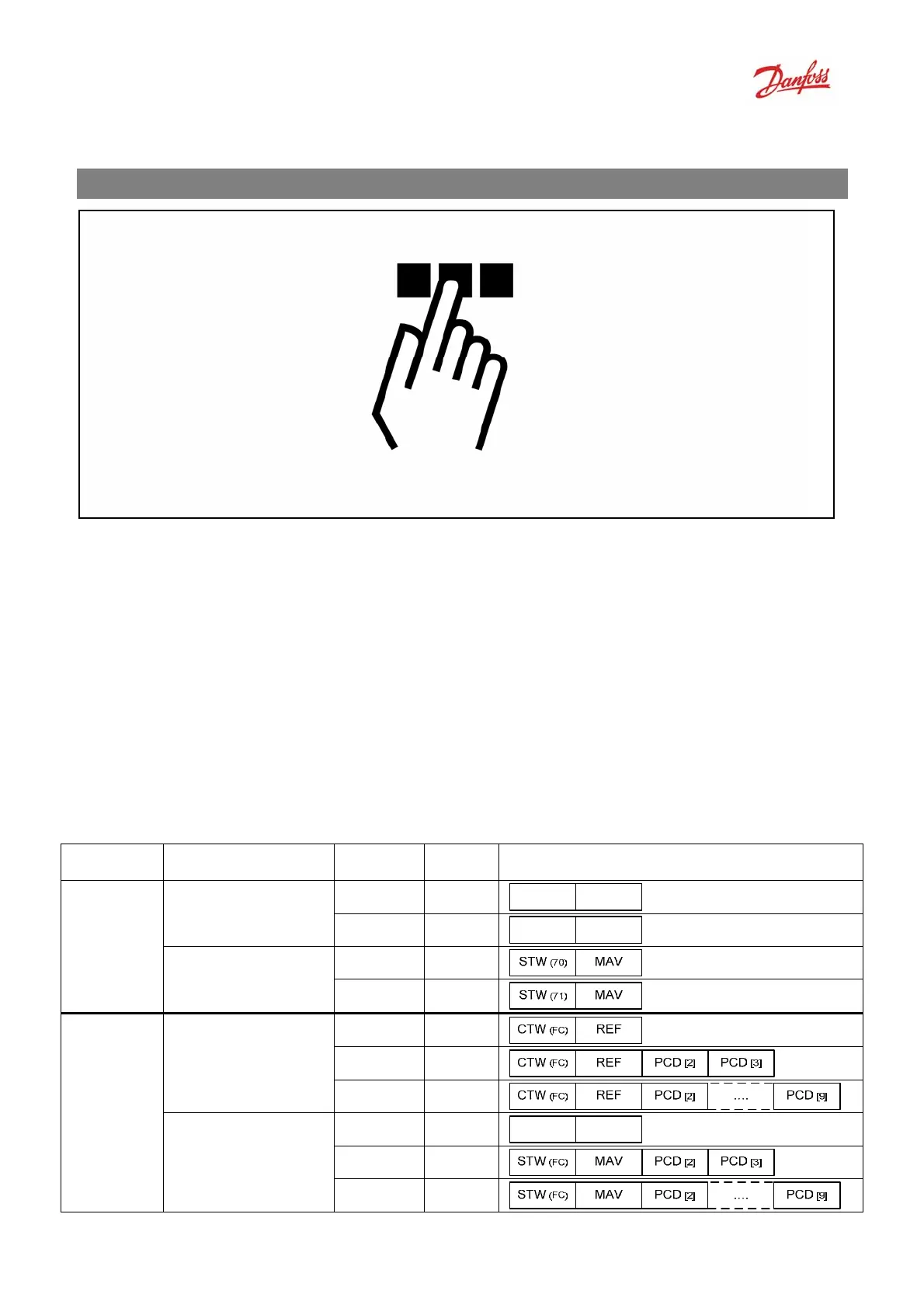

The figure below shows the I/O Assembly Instance options for controlling and monitoring the FC 300
drive.
Profile
(par. 8-10)
Direction
Instance
(decimal)
Size
(bytes)
Data
20 4
CTW (20) REF
Originator -> Target
21 4
CTW (21) REF
70 4
ODVA
Target -> Originator
71 4
100 4
101 8
Originator -> Target
103 20
150 4
STW (FC) MAV
151 8
FC
Target -> Originator
153 20

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
