5 How to Program
5.1 How to Program on the Graphical LCP
5.1.1 Control Panel
The following instructions are valid for the graphical LCP
(LCP 102):
The control panel is divided into four functional groups:
1. Graphical display with Status lines. All data is
displayed in a graphical LCP display, which can
show up to ve items of operating data while
displaying [Status].
2. Menu keys and indicator lights - changing
parameters and switching between display
functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Auto
on
Reset
Hand
on
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(0)
1234rpm 10,4A 43,5Hz
Run OK
43,5Hz
On
Alarm
Warn.
130BA018.13
1
2
3
4
b
a
c

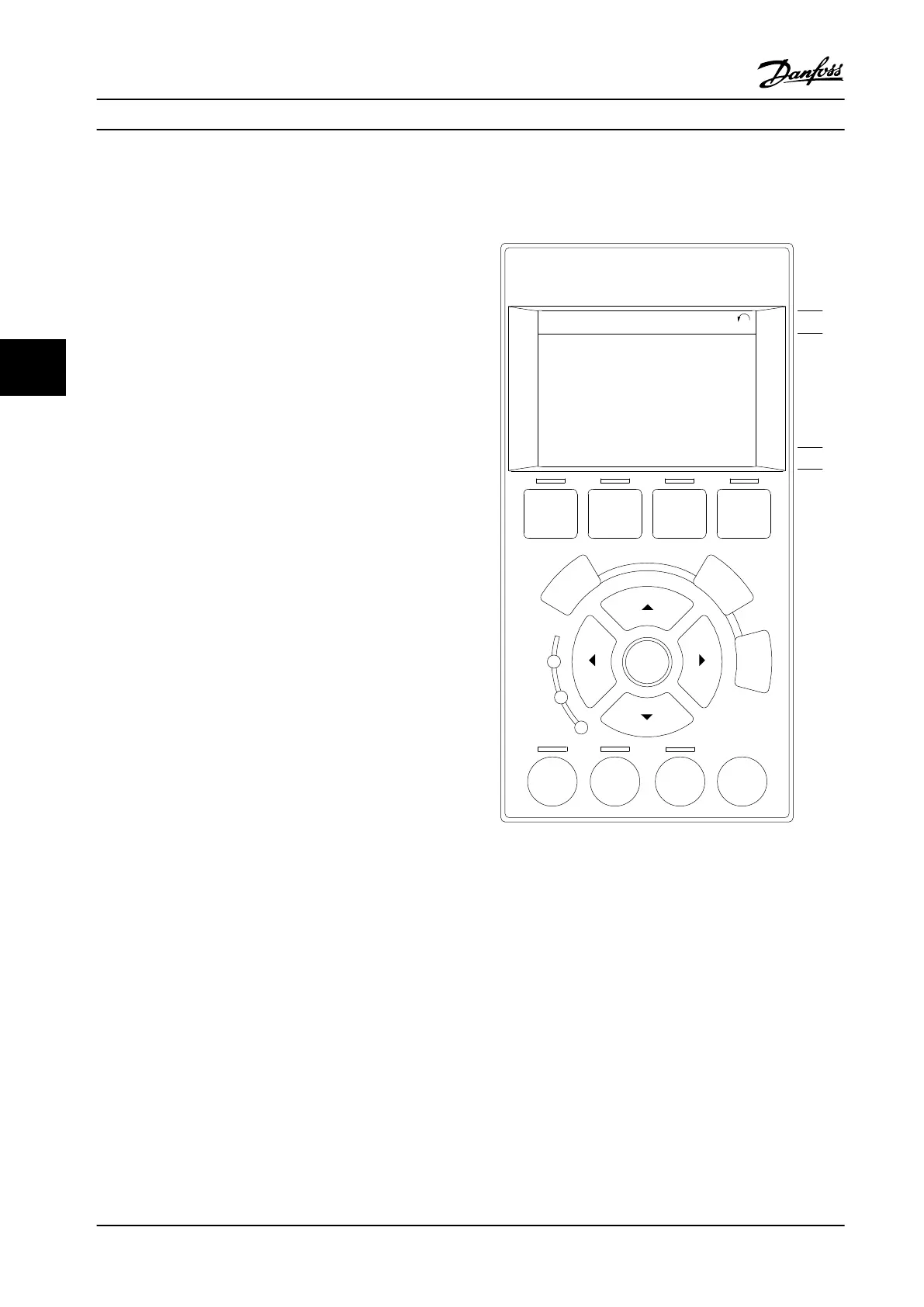

Figure 5.1 Overview of LCP
5.1.2 Display Lines
a. Status line:
Status messages displaying icons and graphic.
b. Line 1-2:
Operator data lines displaying data dened or chosen by
the user. By pressing the [Status] key, up to one extra line
can be added.
c. Status line:
Status messages displaying text.
5.1.3 Display Contrast Adjustment
Press [Status] and [
▼
] for darker display
Press [Status] and [
▲
] for brighter display
How to Program
VLT
®
Compressor Drives CDS 302/CDS 303
40 Danfoss A/S © Rev. 2013-07-03 All rights reserved. MG34M422
55
