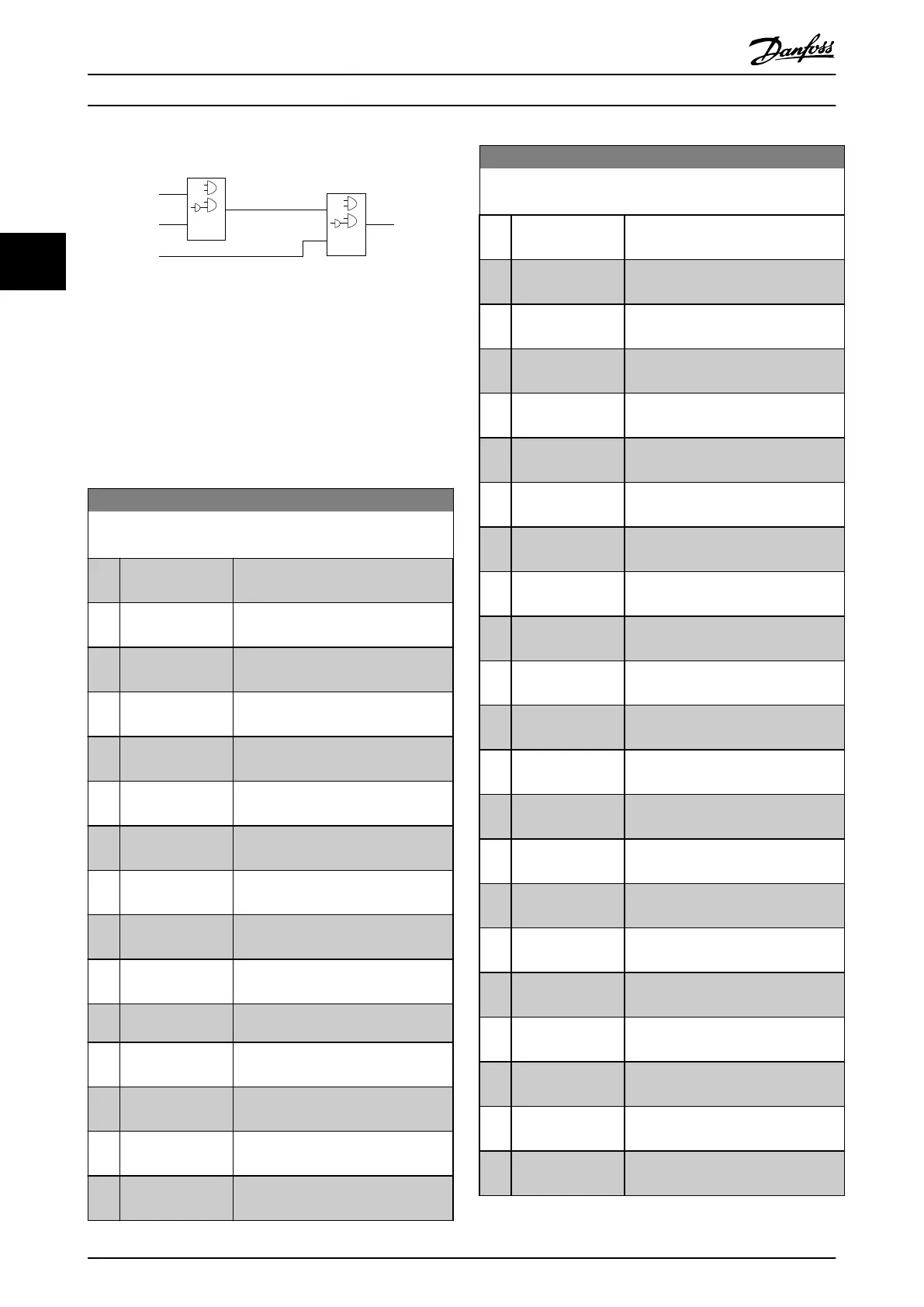

Danfoss VLT FC 103 Programming Guide

. . .
. . .
. . .
. . .
Par. LC-43
Logic Rule Operator 2
Par. LC-41
Logic Rule Operator 1
Par. LC-40
Logic Rule Boolean 1
Par. LC-42
Logic Rule Boolean 2
Par. LC-44
Logic Rule Boolean 3
130BB673.10
Illustration 3.32
Priority
of calculation
The results of 13-40 Logic Rule Boolean 1, 13-41 Logic Rule
Operator 1 and 13-42 Logic Rule Boolean 2 are calculated
first. The outcome (TRUE/FALSE) of this calculation is
combined with the settings of 13-43 Logic Rule Operator 2
and 13-44 Logic Rule Boolean 3, yielding the final result
(TRUE/FALSE) of the logic rule.
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
[0] * False Enters the fixed value of FALSE in the
logic
rule.
[1] True Enters the fixed value TRUE in the
logic
rule.
[2] Running See parameter group 5-3* for further
description.
[3] In range See parameter group 5-3* for further
description.
[4] On reference See parameter group 5-3* for further
description.
[5] Torque limit See parameter group 5-3* for further
description.
[6] Current Limit See parameter group 5-3* for further
description.
[7] Out of current
range
See parameter group 5-3* for further
description.
[8] Below I low See parameter group 5-3* for further
description.
[9] Above I high See parameter group 5-3* for further
description.
[10] Out of speed
range
[11] Below speed low See parameter group 5-3* for further
description.
[12] Above speed high See parameter group 5-3* for further
description.
[13] Out of feedb.
range
See parameter group 5-3* for further
description.
[14] Below feedb. low See parameter group 5-3* for further
description.
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
[15] Above feedb. high See parameter group 5-3* for further
description.
[16] Thermal warning See parameter group 5-3* for further
description.
[17] Mains out of range See parameter group 5-3* for further
description.
[18] Reversing See parameter group 5-3* for further
description.
[19] Warning See parameter group 5-3* for further
description.
[20] Alarm (trip) See parameter group 5-3* for further
description.
[21] Alarm (trip lock) See parameter group 5-3* for further
description.
[22] Comparator 0 Use the result of comtor 0 in the logic
rule.
[23] Comparator 1 Use the result of comtor 1 in the logic
rule.
[24] Comparator 2 Use the result of comtor 2 in the logic
rule.
[25] Comparator 3 Use the result of comtor 3 in the logic
rule.
[26] Logic rule 0 Use the result of logic rule 0 in the
logic
rule.
[27] Logic rule 1 Use the result of logic rule 1 in the
logic
rule.
[28] Logic rule 2 Use the result of logic rule 2 in the
logic
rule.
[29] Logic rule 3 Use the result of logic rule 3 in the
logic
rule.
[30] SL Time-out 0 Use the result of timer 0 in the logic
rule.
[31] SL Time-out 1 Use the result of timer 1 in the logic
rule.
[32] SL Time-out 2 Use the result of timer 2 in the logic
rule.
[33] Digital input DI18 Use the value of DI18 in the logic rule
(High
= TRUE).
[34] Digital input DI19 Use the value of DI19 in the logic rule
(High
= TRUE).
[35] Digital input DI27 Use the value of DI27 in the logic rule
(High
= TRUE).
[36] Digital input DI29 Use the value of DI29 in the logic rule
(High
= TRUE).
Parameter Description
VLT
®
Refrigeration Drive Programming Guide
88 MG16H102 - VLT
®
is a registered Danfoss trademark
33
