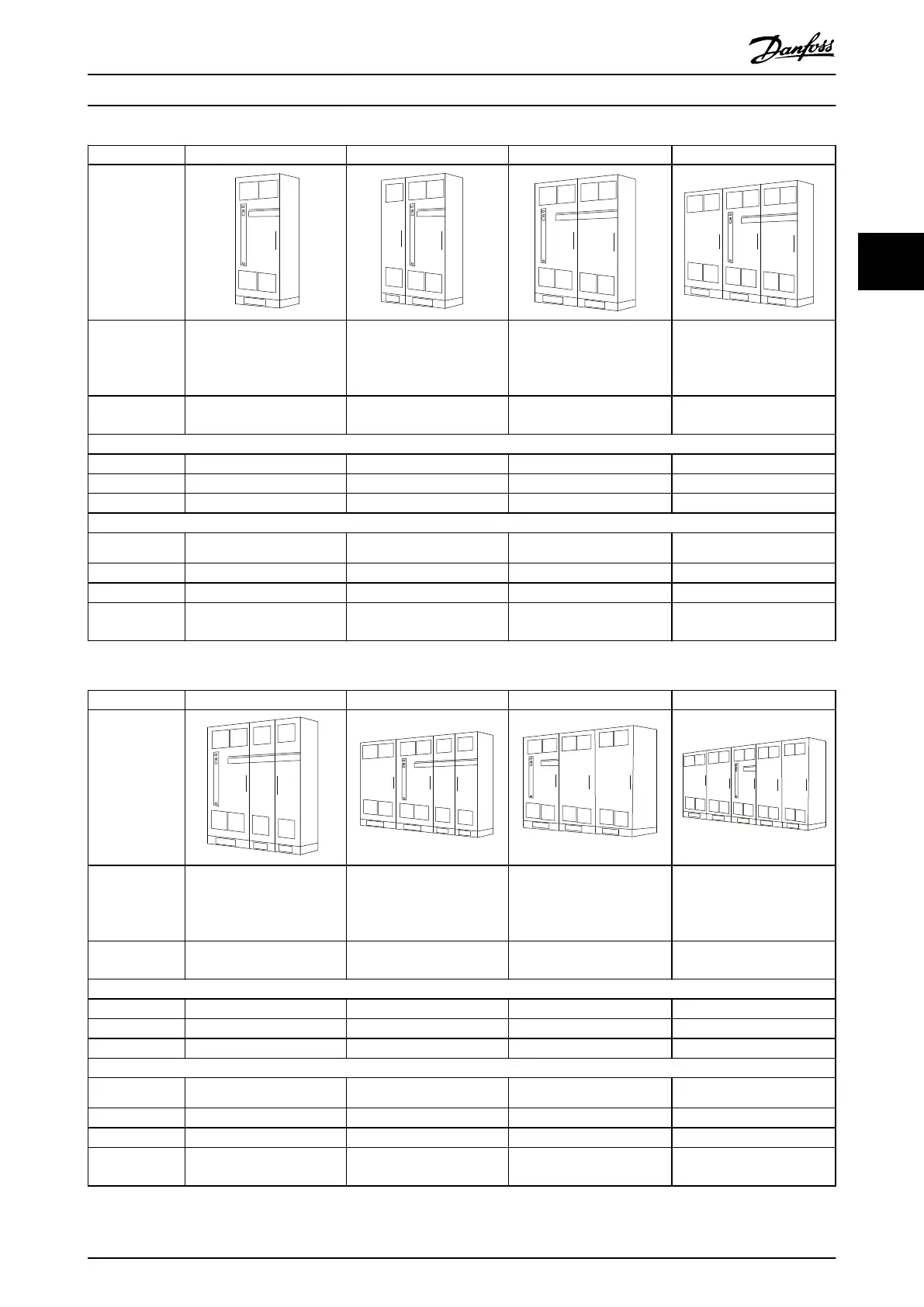

Danfoss VLT series User Manual

Enclosure size F8 F9 F10 F11
130BE142.10
130BE144.10
130BE145.10
130BE146.10
High overload
rated power –
150% overload
torque
250–400 kW (380–500 V)
355–560 kW (525–690 V)
250–400 kW (380–500 V)
355–56 kW (525–690 V)
450–630 kW (380–500 V)
630–800 kW (525–690 V)
710–800 kW (380–500 V)
900–1200 kW (525–690 V)
IP
NEMA
21, 54
12
21, 54
12
21, 54
12
21, 54
12
Shipping dimensions [mm (in)]
Height 2324 (91.5) 2324 (91.5) 2324 (91.5) 2324 (91.5)
Width 970 (38.2) 1568 (61.7) 1760 (69.3) 2559 (100.7)
Depth 1130 (44.5) 1130 (44.5) 1130 (44.5) 1130 (44.5)
Frequency converter dimensions [mm (in)]
Height
2204 (86.8) 2204 (86.8) 2204 (86.8) 2204 (86.8)
Width 800 (31.5) 1400 (55.1) 1600 (63.0) 2400 (94.5)
Depth 606 (23.9) 606 (23.9) 606 (23.9) 606 (23.9)
Max weight
[kg (lb)]
440 (970) 656 (1446) 880 (1940) 1096 (2416)
Table 3.6 Mechanical Dimensions, Enclosure Sizes F8–F11
Enclosure size F12 F13 F14 F15
130BE147.10
130BE148.10
130BE149.11
130BE150.10
High overload
rated power –
150% overload
torque
450–630 kW (380–500 V)
630–800 kW (525–690 V)
710–800 kW (380–500 V)
900–1200 kW (525–690 V)
1400–1800 kW (525–690 V) 1400–1800 kW (525–690 V)
IP
NEMA
21, 54
12
21, 54
12
21, 54
12
21, 54
12
Shipping dimensions [mm (in)]
Height 2324 (91.5) 2324 (91.5) 2324 (91.5) 2324 (91.5)
Width 2160 (85.0) 2960 (116.5) 2578 (101.5) 3778 (148.7)
Depth 1130 (44.5) 1130 (44.5) 1130 (44.5) 1130 (44.5)
Frequency converter dimensions [mm]
Height
2204 (86.8) 2204 (86.8) 2204 (86.8) 2204 (86.8)
Width 2000 (78.7) 2800 (110.2) 2400 (94.5) 3600 (141.7)
Depth 606 (23.9) 606 (23.9) 606 (23.9) 606 (23.9)
Max weight
[kg (lb)]
1022 (2253) 1238 (2729) 1410 (3108) 1626 (3585)
Table 3.7 Mechanical Dimensions, Enclosure Sizes F12–F15
How to Install Operating Instructions
MG34Q402 Danfoss A/S © 04/2016 All rights reserved. 17
3 3
