Danfoss VLT series User Manual

F15 IP21/54 – NEMA 1/12
800 (31.5)
IP21/NEMA1 2800 m3/Hr 2472 CFM IP21/NEMA12 3150 m3/Hr 1854 CFM
7883 m3/Hr 4640 CFM
800 (31.5)
800 (31.5)
3600 (141.7)
600 (23.6)
600 (23.6)
130BE181.10
2280 (89.9)
2205 (86.8)
1497 (58.9)
All dimensions in mm (in)

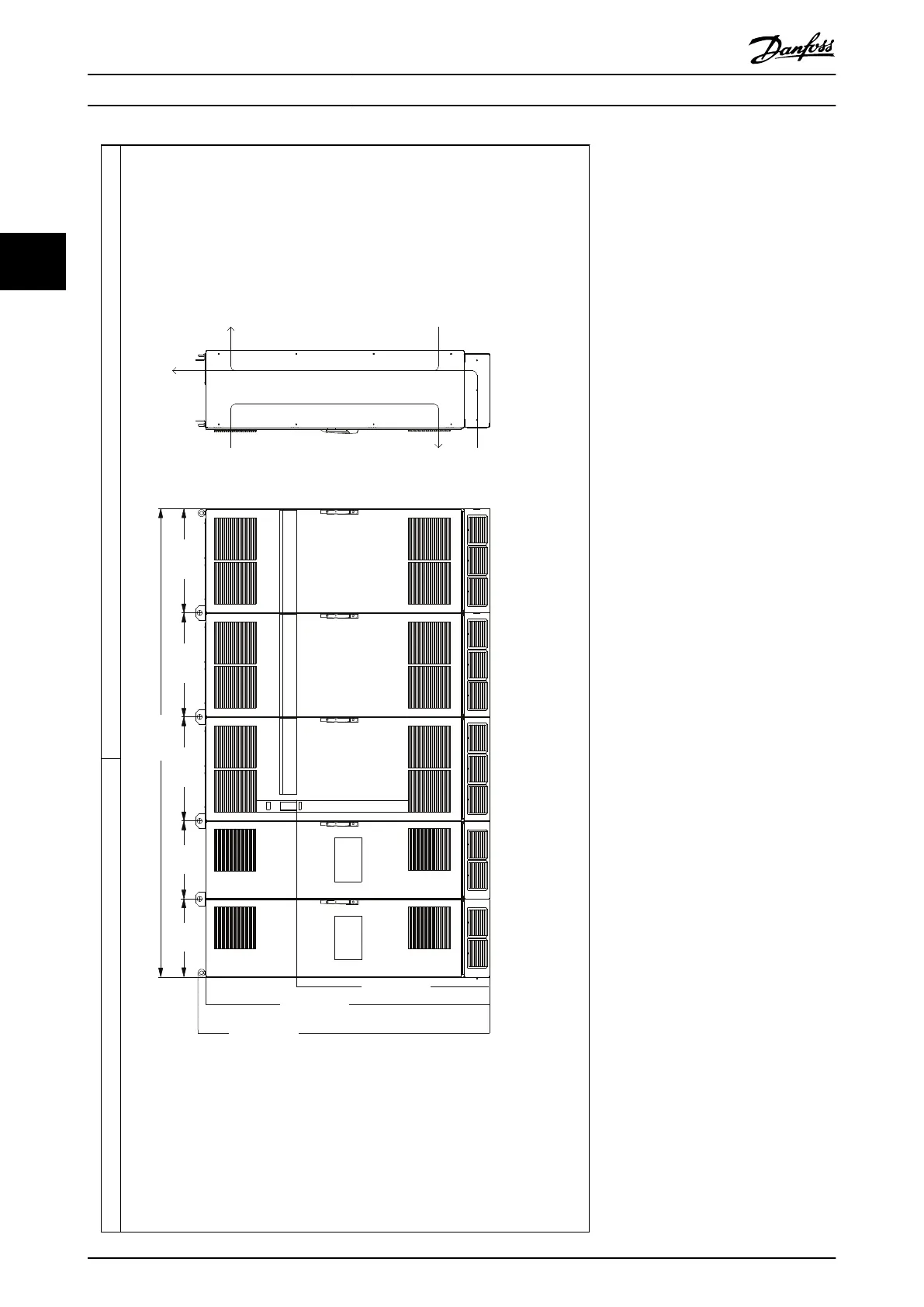

Table 3.5 Mechanical Dimensions, Enclosure Size F15
How to Install
VLT
®
AutomationDrive FC 302
16 Danfoss A/S © 04/2016 All rights reserved. MG34Q402
33
