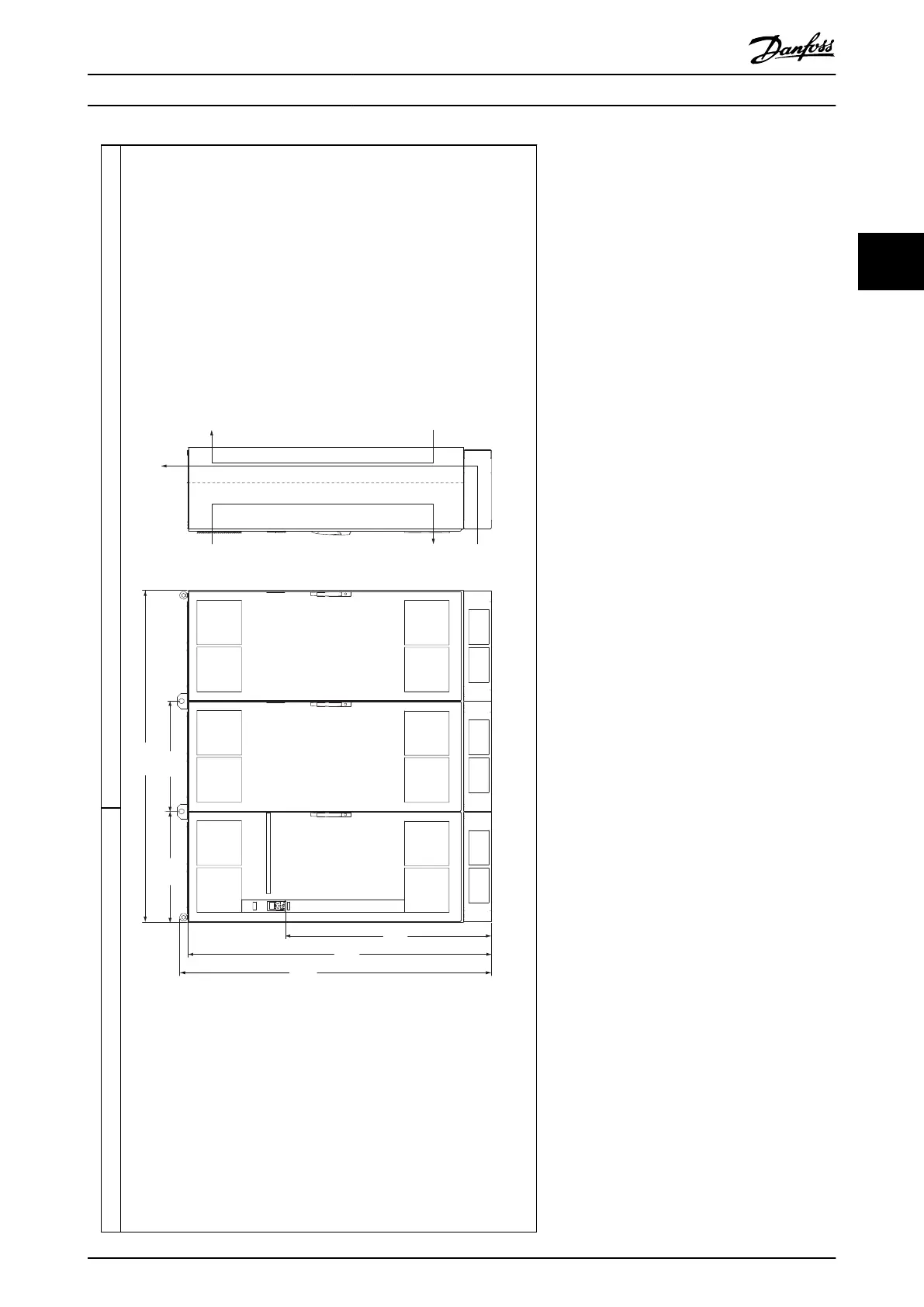

Danfoss VLT series

F14 IP21/54 – NEMA 1/12
130BC150.12
800 [31.5]
800 [31.5]
2400 [94.5]
2280 [89.8]
2205 [86.8]
1497 [58.9]
7883 m
3
/h
(4680 cfm)
IP/21 NEMA 1 2800 m
3
/h
(2472 cfm) IP/54 NEMA 12 3150 m
3
/h
(1854 cfm)
All dimensions in mm (in)
Table 3.4 Mechanical Dimensions, Enclosure Size F14
