Danfoss VLT series User Manual

130BB699.11
R/L1 91 S/L2 92 T/L3 93
R/L1 91 S/L2 92 T/L3 93
CFD30J3
6
5
4
3
2
1
7
1 Safety relay coil fuse with Pilz relay
See chapter 3.4.14 Fuse Tables for part numbers.
2 Pilz relay terminal
3 RCD or IRM terminal
4 Mains fuses (6 pieces)
See chapter 3.4.14 Fuse Tables for part numbers.
5 2x3-phase manual disconnect
6 Mains L1-2 (R2), L2-2 (S2), L3-2 (T2)
7 Mains L1-1 (R1), L2-1 (S1), L3-1 (T1)

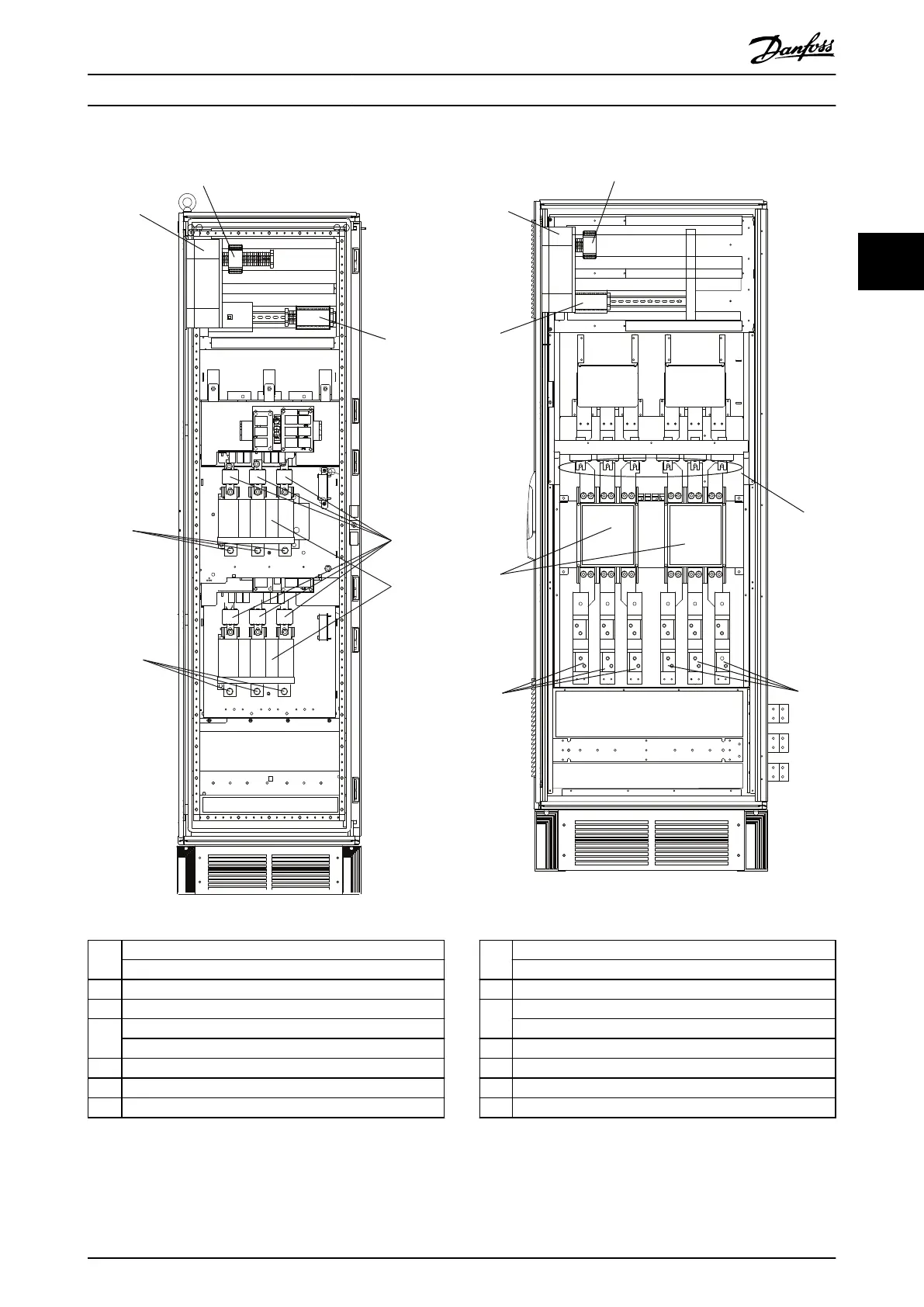

Illustration 3.41 Options Cabinet, Enclosure Size F9
130BB700.11
4
2
5
6
3
1
7
1 Safety relay coil fuse with Pilz relay
See chapter 3.4.14 Fuse Tables for part numbers.
2 Pilz relay terminal
3 Mains fuses
See chapter 3.4.14 Fuse Tables for part numbers.
4 Mains L1-2 (R2), L2-2 (S2), L3-2 (T2)
5 Mains L1-1 (R1), L2-1 (S1), L3-1 (T1)
6 2x3-phase manual disconnect
7 RCD or IRM terminal
Illustration 3.42 Options Cabinet, Enclosure Sizes F11 and F13
How to Install Operating Instructions
MG34Q402 Danfoss A/S © 04/2016 All rights reserved. 43
3 3

Danfoss VLT series Specifications

General

Series	VLT
Category	DC Drives
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit, Ground Fault
Communication Interfaces	Profibus, CANopen
Enclosure Rating	IP20, IP21, IP55, IP66
Cooling Method	Forced Air Cooling, Convection Cooling
Control Mode	Sensorless Vector, Closed Loop Vector
Ambient Temperature	-10°C to +50°C (14°F to 122°F)
