Datakom DKM-411 - Rs-485 Port

DKM-411 User Manual Rev_01 Firmware V-1.0
K46D03-EN - 22 -
Structure:
RS-485, isolated.
Isolation voltage:
1000VAC, 1 minute
Connection:
3 wires (A-B-GND). Half duplex.
Baud rate:
2400-115200 bauds, selectable
Data type:
8 bit data, no parity, 1 bit stop
Termination:
External 120 ohms required
Common mode voltage:
-0.5 VDC to +7VDC, internally clamped by transient suppressors.
Max distance:
1200m @ 9600 bauds (with 120 ohms balanced cable)
200m @ 115200 bauds (with 120 ohms balanced cable)
The RS-485 port features MODBUS-RTU protocol. Multiple modules (up to 128) can be paralleled on the
same RS-485 bus for data transfer to automation or building management systems.
The RS-485 port provides also a good solution for distant PC connection where RainbowPlus program
will enable programming, control and monitoring.
For more details about programming, control and
monitoring through RS-485 port please refer to
RainbowPlus user manual.
The Modbus register list is available at Datakom
technical support.

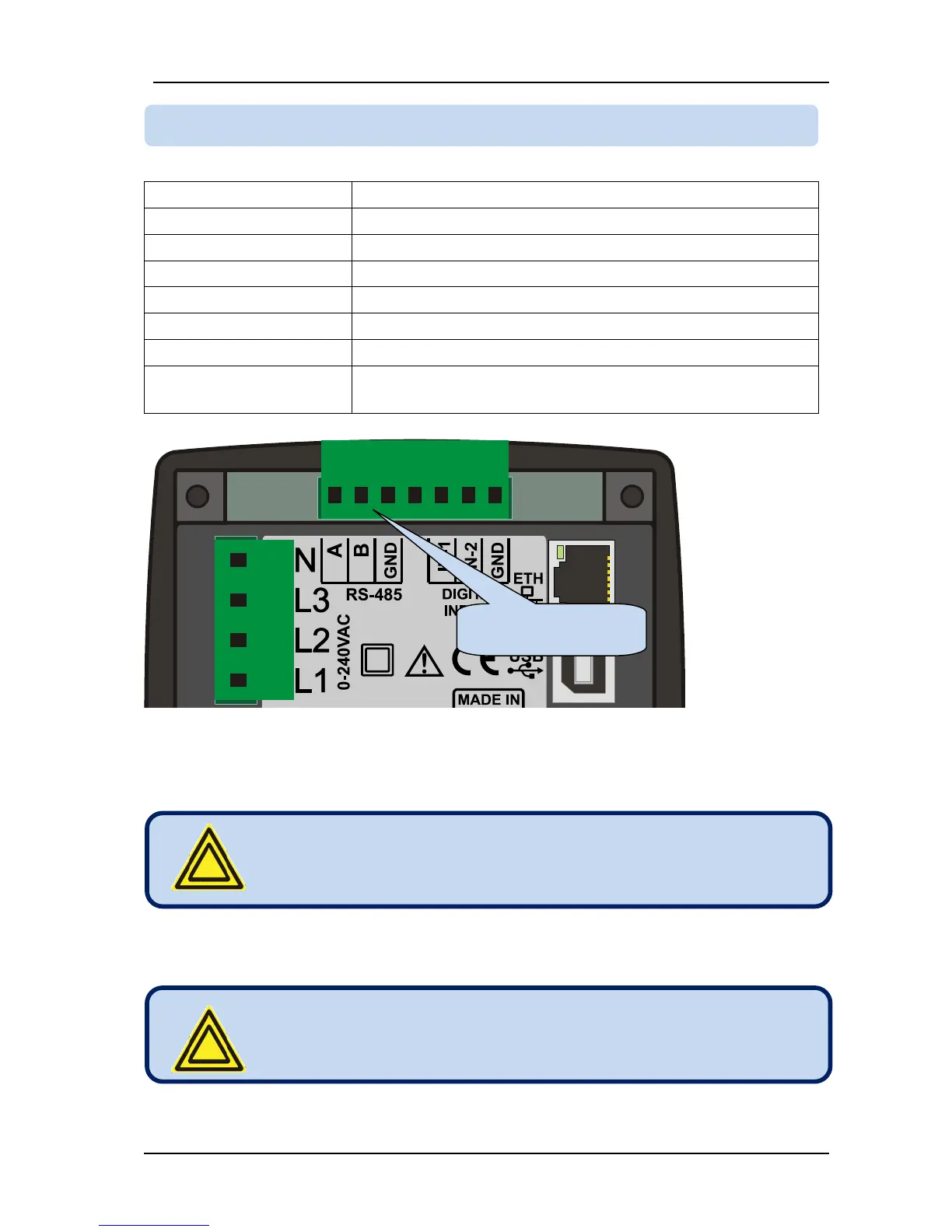

3.6. RS-485 PORT
RS-485 Connector
Terminals
