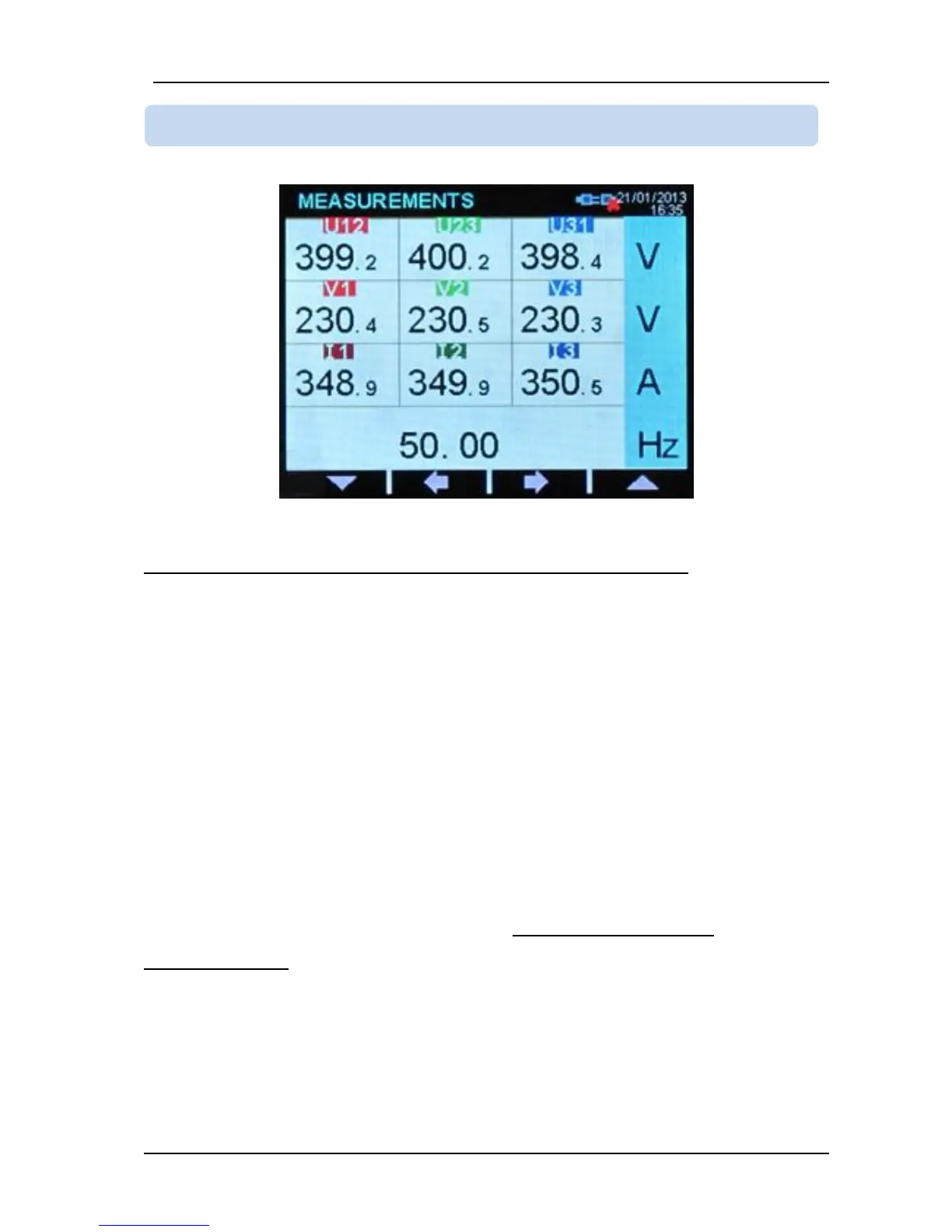

The unit performs a detailed set of AC measurements.
The list of measured parameters is below :
L1-N voltage
L2-N voltage
L3-N voltage
L1-L2 voltage
L2-L3 voltage
L3-L1 voltage
L1 current
L2 current
L3 current
N current
Frequency (Hz)
Total Active Power
Total Reactive Power
Total Apparent Power
Total Power Factor
Total tangent(teta) %
Average Voltage
Average Current
Voltage Unbalance %
Current Unbalance %
The phasor diagram:
Phase angle L1 voltage
Phase angle L2 voltage
Phase angle L3 voltage
Phase angle L1 current
Phase angle L2 current
Phase angle L3 current
L1 active power (kW)
L2 active power (kW)
L3 active power (kW)
L1 reactive power (kVAr)
L2 reactive power (kVAr)
L3 reactive power (kVAr)
L1 apparent power (kVA)
L2 apparent power (kVA)
L3 apparent power (kVA)
L1 power factor (pf)
L2 power factor (pf)
L3 power factor (pf)
L1 tangent(teta) %
L2 tangent(teta) %
L3 tangent(teta) %
Harmonic analysis channels:
L1-N voltage
L2-N voltage
L3-N voltage
L1-L2 voltage
L2-L3 voltage
L3-L1 voltage
L1 current
L2 current
L3 current
Neutral Current
8.4. MEASURED PARAMETERS
