DKM-411 User Manual Rev_01 Firmware V-1.0
K46D03-EN - 46 -

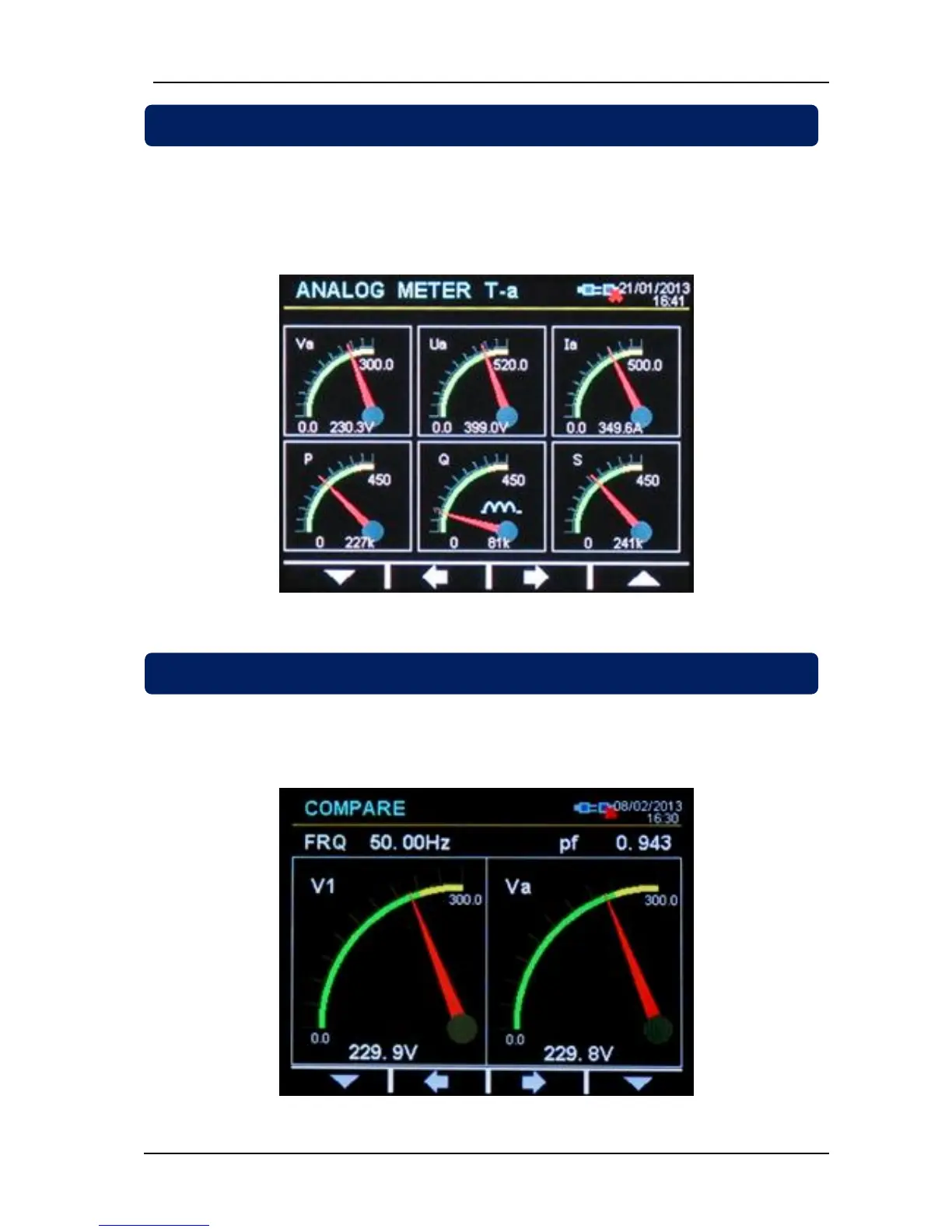

Various analog displays are provided for the ease of reading.
Each analog display page consists of 6 gauges, presented in various combinations.
Yellow and green zones in gauges are directly picked up from warning and alarm levels, providing check-
up at a glance.
Comparaison displays screen consists on two analog gauges, where any measured parameter may be
visualized in each gauge. Therefore any couple of measurements may be compared visually.
12. COMPARING MEASUREMENTS
11. ANALOG DISPLAYS
