The device offers a powerful user screen design tool through programming menu.
The user can freely design his own screen for the most specialized functionality. Any measured value
may be set on the display, using 2 different possible font sizes.
The display has 6 lines of large characters or 12 lines of small characters. When small characters are
used, 2 columns are permitted. The capacity of the screen therefore becomes 6 large size values or 24

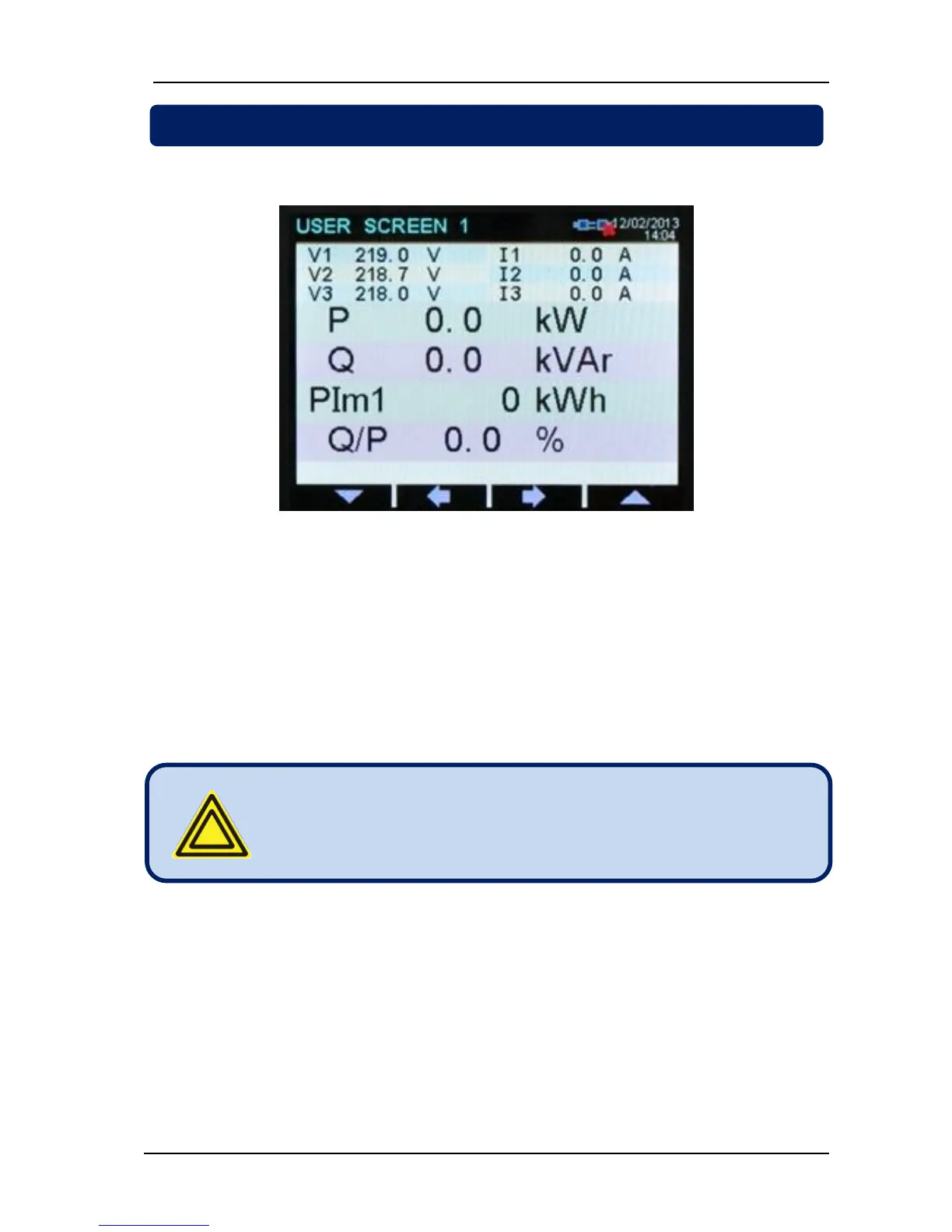

small size values or any combination of them. Above is a sample user defined screen.
The device offers 4 independent user defined screens, totalizing the amount of possible parameters to 96
items.
User screen names are also editable for additional flexibility.
For more details about user screen configuration
please rewiev chapter CONFIGURING USER DISPLAY
SCREENS at the PROGRAMMING section of this
manual.
