Datakom DKM-411 User Manual

DKM-411 User Manual Rev_01 Firmware V-1.0
K46D03-EN - 38 -

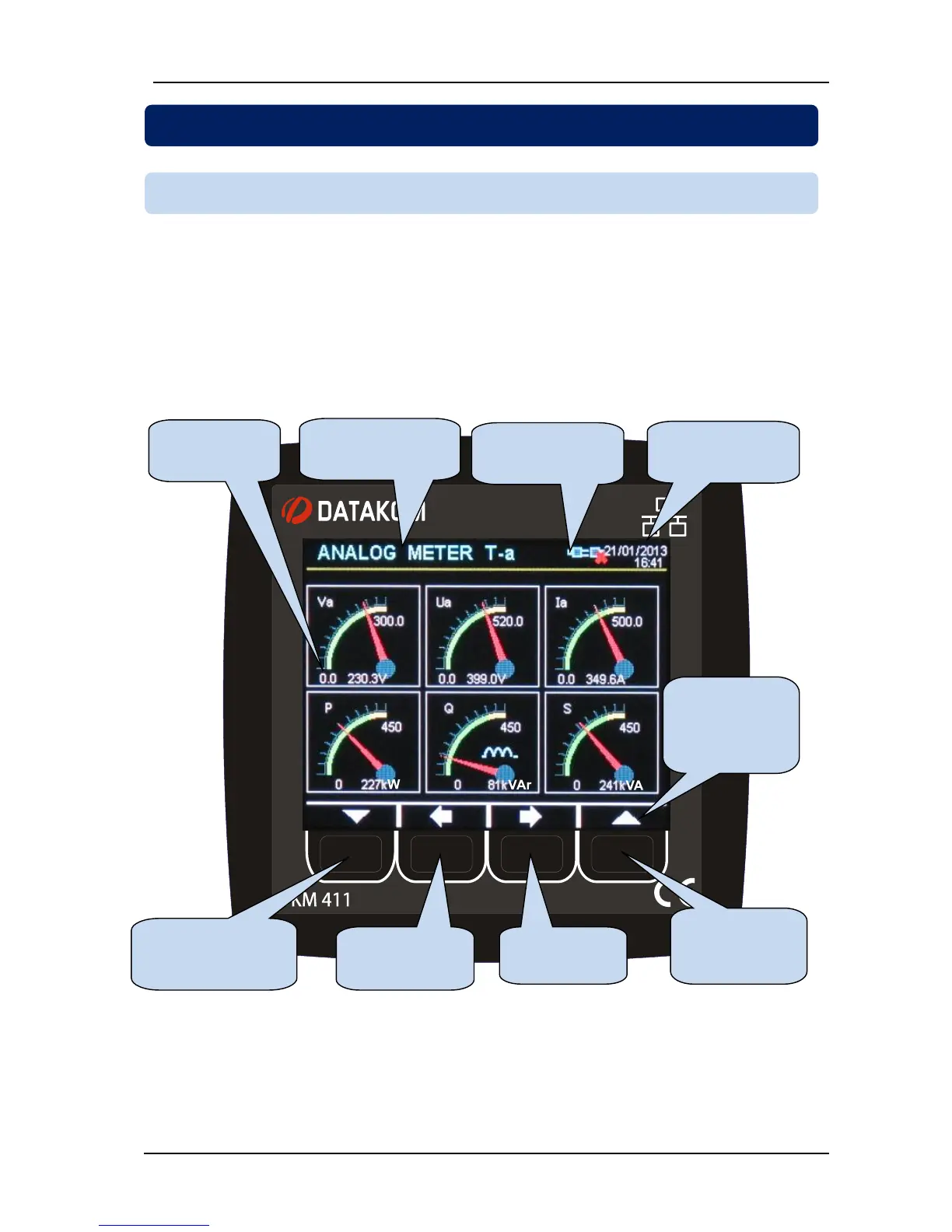

The front panel comprises a 320x240 pixels 3.5” color LCD display and 4 multi-function pushbutton keys.
The top section of the display is reserved for menu and status indications. This area displays the active
menu, internet connection status and date-time information.
The function of the pushbuttons may vary following the active menu item and is dynamically indicated at
the bottom section of the graphic display. Generally pushbuttons function as arrow keys to the 4 basic
directions. Left-right arrow keys change the menu group. Up-down arrow keys navigate inside the same
menu group.
8.1. FRONT PANEL FUNCTIONALITY
8. DESCRIPTION OF CONTROLS
Graphic
LCD screen
Next screen in
the same group
Previous
display group
Next display
group
Previous
screen in the
same group
IP connection
status area
Parameter
group indication
Date & Time
indicaiton
Pushbotton
functionality
is indicated
in this area
