DKM-411 User Manual Rev_01 Firmware V-1.0
K46D03-EN - 70 -

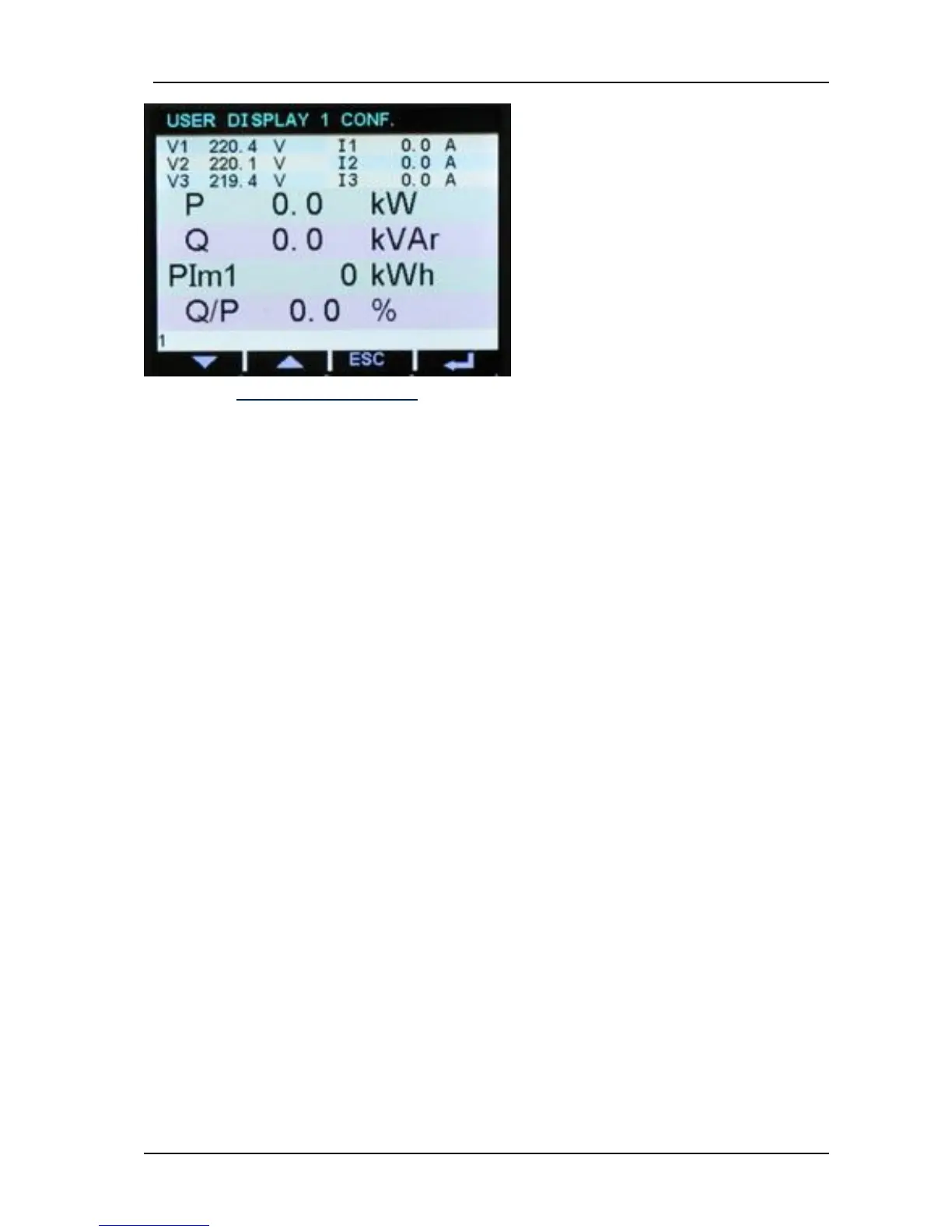

A sample user screen
The screen header is also programmable
through “USER INPUT STRINGS” menu.
LIST OF SELECTABLE PARAMETERS
L1-N Voltage
THD L1-N Voltage
Maximum L2-3 Voltage
L2-N Voltage
THD L2-N Voltage
Maximum L3-1 Voltage
L3-N Voltage
THD L3-N Voltage
Maximum I1 Current
L1-2 Voltage
THD L1-2 Voltage
Maximum I2 Current
L2-3 Voltage
THD L2-3 Voltage
Maximum I3 Current
L3-1 Voltage
THD L3-1 Voltage
Maximum Ia Average Current
L1 Current
THD L1 Current
Maximum Frequency
L2 Current
THD L2 Current
Maximum kW Import
L3 Current
THD L3 Current
Maximum kW Export
Neutral Current
THD Neutral Current
Maximum kVAr Inductive
L1 Active Power
Demand I1 Current
Maximum kVAr Capacitive
L2 Active Power
Demand I2 Current
Input Counter 1
L3 Active Power
Demand I3 Current
Input Counter 2
Total Active Power
Demand Ia Average Current
Average L-N Voltage
L1 Reactive Power
Demand kW
Average L-L Voltage
L2 Reactive Power
Demand kVAr
Average L-N Current
L3 Reactive Power
Minimum L1-N Voltage
L1 Q/P ratio
Total Reactive Power
Minimum L2-N Voltage
L2 Q/P ratio
L1 Apparent Power
Minimum L3-N Voltage
L3 Q/P ratio
L2 Apparent Power
Minimum L1-2 Voltage
Total Q/P ratio
L3 Apparent Power
Minimum L2-3 Voltage
Voltage Unbalance Ratio
Total Apparent Power
Minimum L3-1 Voltage
Current Unbalance Ratio
L1 Power Factor
Minimum I1 Current
Keep Blank
L2 Power Factor
Minimum I2 Current
L3 Power Factor
Minimum I3 Current
Total Power Factor
Minimum Ia Average
Current
Frequency
Minimum Frequency
Import Power 1 Counter
Minimum kW Import
Export Power 1 Counter
Minimum kW Export
Inductive Reactive Power 1 Counter
Minimum kVAr Inductive
Capacitive Reactive Power 1 Counter
Minimum kVAr Capacitive
Import Power 2 Counter
Maximum L1-N Voltage
Export Power 2 Counter
Maximum L2-N Voltage
Inductive Reactive Power 2 Counter
Maximum L3-N Voltage
Capacitive Reactive Power 2 Counter
Maximum L1-2 Voltage
L2 Power Factor
L3 Power Factor
Total Power Factor
