Introduction
4 Gryphon™ I GD44XX/GBT4400/GM440X
The BC40xx™ Radio Base
Base LEDs
LEDs on the Gryphon Base provide information about the Base’s status, as

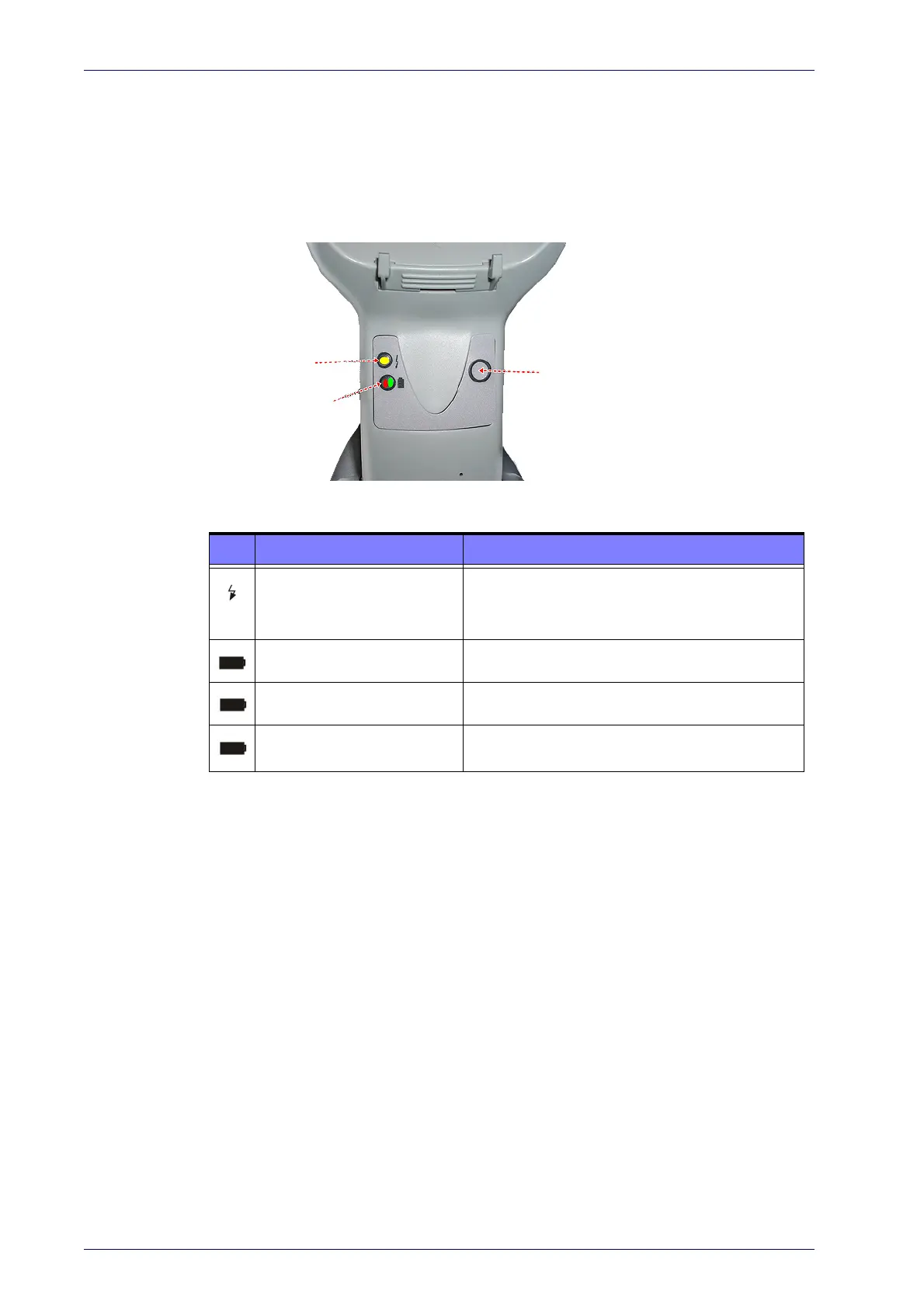

shown in Figure 1.
Figure 1
YELLOW LED
RED LED /
GREEN LED
BUTTON
. Gryphon Base LEDs
The following table describes the significance of each LED:
LED STATUS
Power on / Data
Yellow On = Base is powered
Yellow Blinking = Base receives data and

commands from the Host or the Reader.
Charging Red On = Battery charging is in progress.
Charge completed Green On = the Battery is completely charged.
Charging + Charge completed
Red and Green Blinking together = the Reader is
n
ot correctly placed onto the Base.
See "Base Station Indications (Cordless Models ONLY)" on page 318 for more
specific details on the LEDs.
Base Button
The Base contains a button which is used primarily to perform a paging
function. Pressing the button causes a sound signal to be emitted by all
scanners linked with this Base, as long as the scanner is awake (see "Power-
down Timeout" on page 266) and reception is en
abled (see "LED and Beeper
Indicators" on page 104). The button can also be used
to "force device con-
nection" via the Datalogic Aladdin Software tool (available for free download
fr
om the Datalogic website). See the Aladdin Online Help for details.
See "Base Station Button Indicators" on page A-318 for further information
on Base Button functions.

Datalogic Gryphon I GD4400 Specifications

General

Environmental Sealing	IP52
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Connectivity Technology	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Ambient Light Immunity	0 to 100, 000 lux
ESD Protection	16 kV
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Resolution	4 mils
Drop Resistance	Withstands drops from 1.8 m / 5.9 ft to concrete
Weight	195 g / 6.88 oz
Decode Capability	1D Codes, 2D Codes, Postal Codes, Stacked Codes
Scan Rate	Up to 60 frames per second
