BC40XX UV Counterfeit Detection
The BC40XX Radio Base is available with a UV Counterfeit Money Detector,
typically used to verify the authenticity of bank notes. Other uses for coun-
terfeit detection are passport, ticket, credi
t card, travelers’ check and similar
applications where it is possible to detect fluorescent marks with UV light.

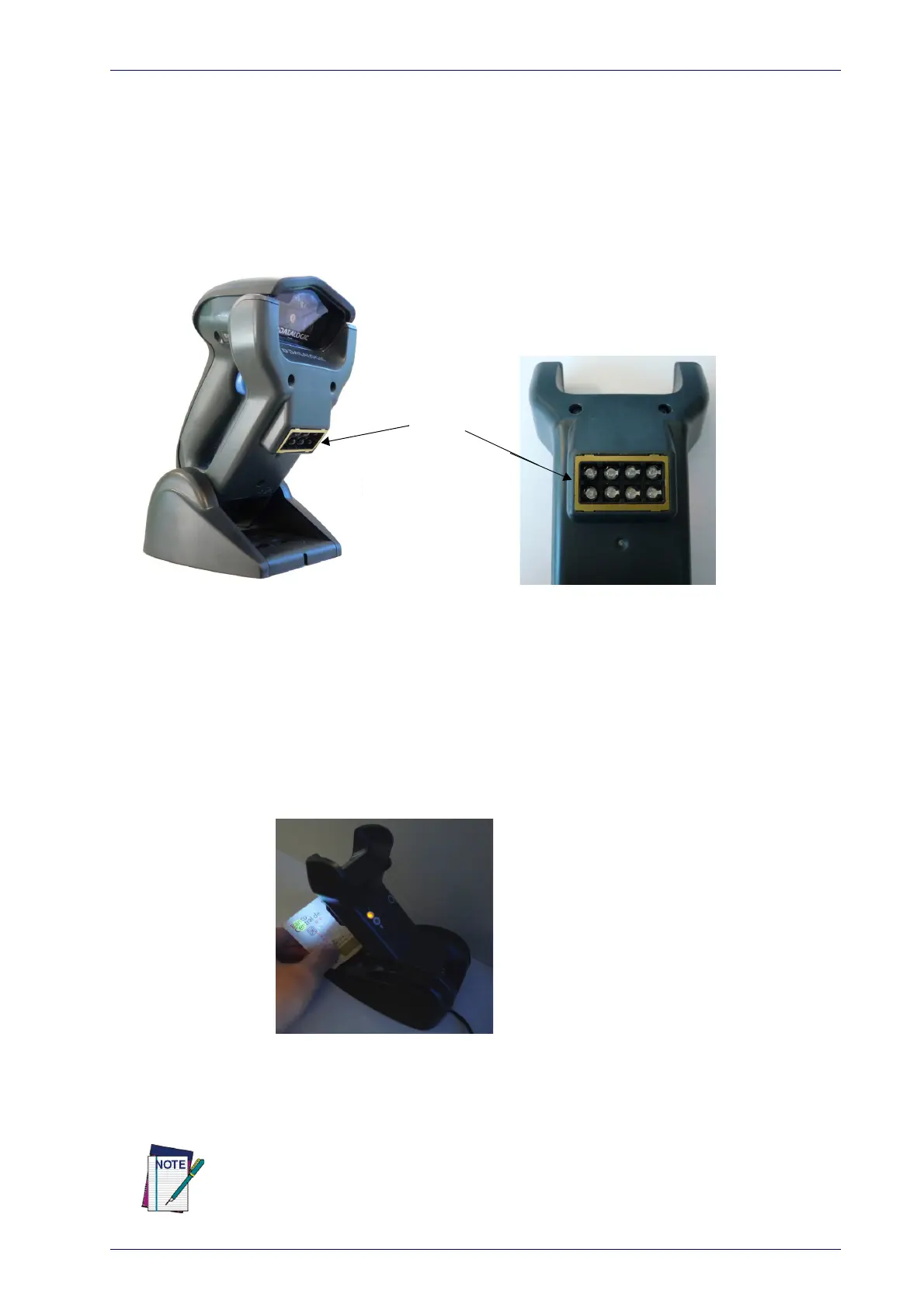

The detector contains eight special UV LEDs, as shown below:
UV LEDs
The Counterfeit Detector is based on UV fluorescent emission. Real
banknotes under ultraviolet rays usually absorb the UV light and will show
special marks made with fluorescent inks. On the other hand, most counter-
feit banknotes only reflect the UV lig
hts, without showing fluorescent marks.
To use:
1. Quickly press the Base button to light the UV LEDs.
2. Hold the item to be verified under
the LED lights to ensure that the
special fluorescent marks are visible.
3. The LEDs are set to switch off automatically after about 2 minutes.
To keep the UV LEDs in always-on mode, quickly press the Base
button a second time within 10 seconds of the first press. To switch
them off, simply press the button again.
An external power supply is necessary for full functionality of the Base station
with UV Counterfeit Detector. Use only the recommended AC adapter 12Vdc.

Datalogic Gryphon I GD4400 Specifications

General

Environmental Sealing	IP52
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Connectivity Technology	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Ambient Light Immunity	0 to 100, 000 lux
ESD Protection	16 kV
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Resolution	4 mils
Drop Resistance	Withstands drops from 1.8 m / 5.9 ft to concrete
Weight	195 g / 6.88 oz
Decode Capability	1D Codes, 2D Codes, Postal Codes, Stacked Codes
Scan Rate	Up to 60 frames per second
