Datalogic Gryphon I GD4400 User Manual

1D Code Selection Enter/Exit Programming Mode
Product Reference Guide 213
Plessey Set Length 1
This feature specifies one of the bar code lengths for Plessey Length Con-
trol. Length 1 is the minimum label length if in Variable Length Mode, or the
first fixed length if in Fixed Length Mode. Length includes the bar code’s
data characters only. The length can be set
from 01 to 50 characters.
Table 23 provides some examples for setting Length 1. See page 283 for
detailed instructions on setting this feature.

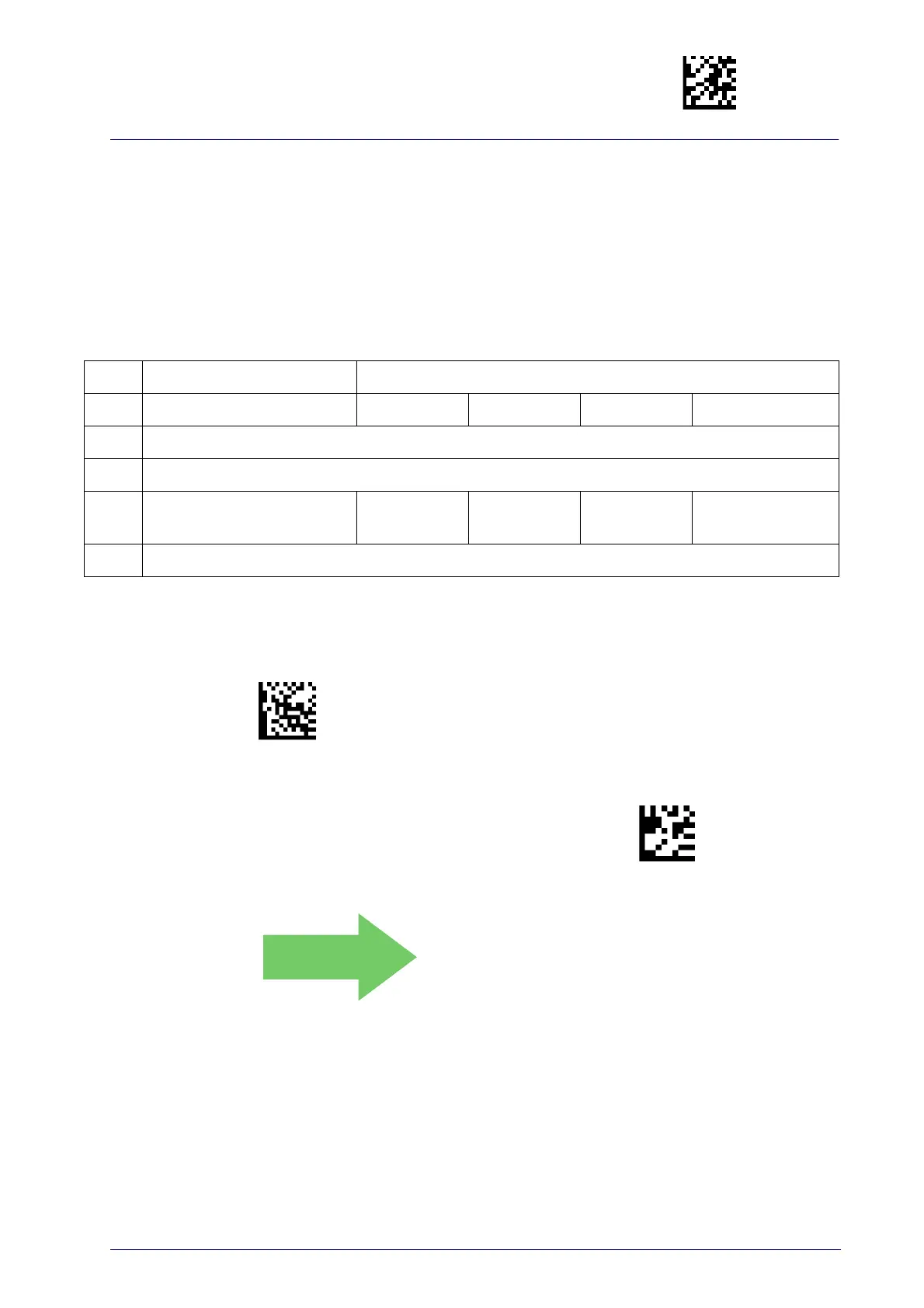

Table 23. Plessey Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT Plessey LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CPLL1
Select Plessey Set Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and not
save the entry string. You can then start again at the beginning.
~
CANCEL
DEFAULT
01 = Length 1 is 1 Character

Datalogic Gryphon I GD4400 Specifications

General

Environmental Sealing	IP52
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Connectivity Technology	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Ambient Light Immunity	0 to 100, 000 lux
ESD Protection	16 kV
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Resolution	4 mils
Drop Resistance	Withstands drops from 1.8 m / 5.9 ft to concrete
Weight	195 g / 6.88 oz
Decode Capability	1D Codes, 2D Codes, Postal Codes, Stacked Codes
Scan Rate	Up to 60 frames per second
