Datalogic Gryphon I GD4400 User Manual

Setup
20 Gryphon™ I GD44XX/GBT4400/GM440X

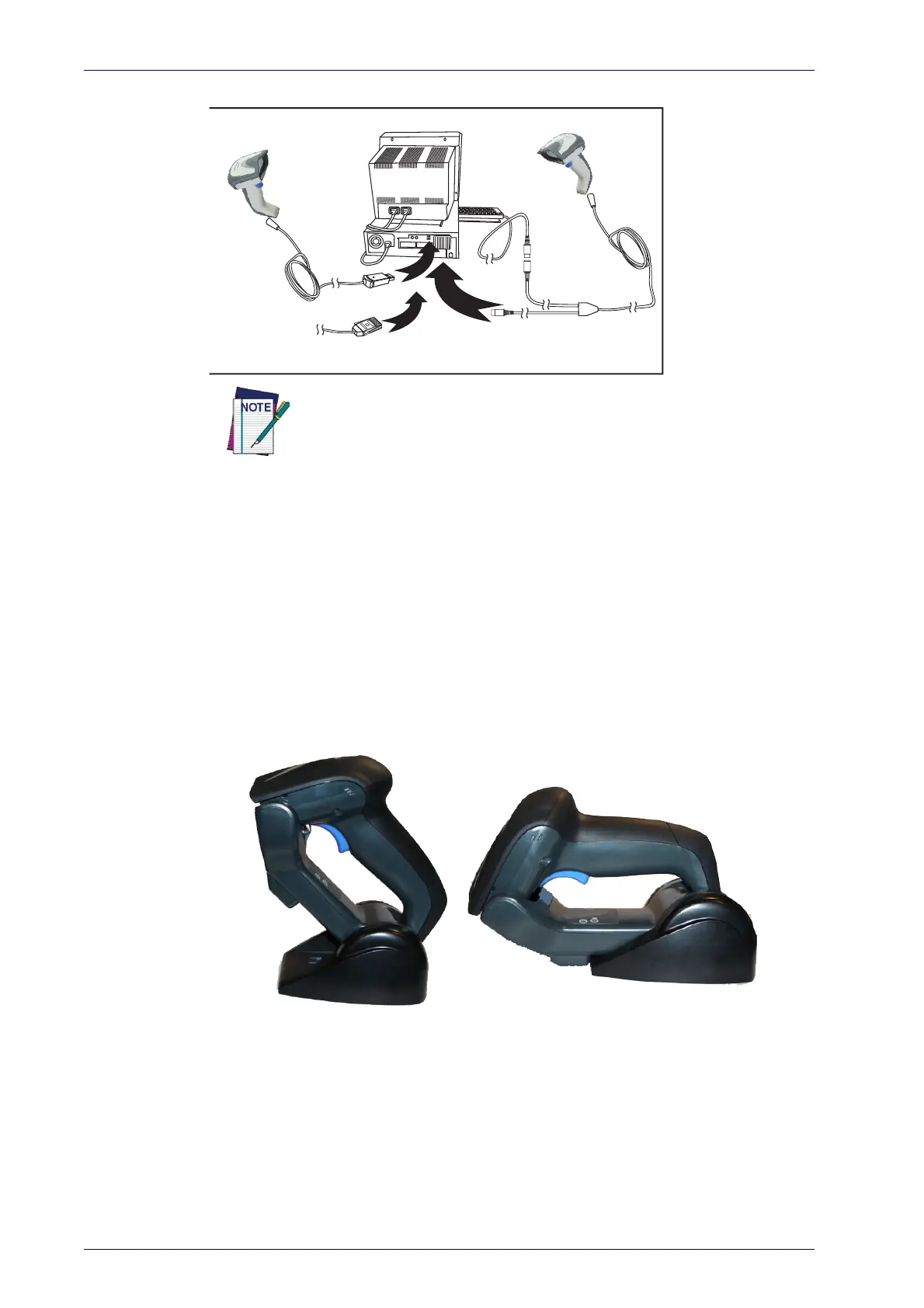

Figure 6. Other Interface Connections
W
a
n
d
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
or...
or...
Specific cables are required for connection to different hosts. The con-
nectors illustrated above are examples only. Actual connectors may
va
ry from those illustrated, but the steps to connect the reader remain
the same.
RF Models
The power supply connects directly to the base (not on the cable's jack) for
all configurations. For all interfaces (except RS-232) a power supply is rec-
ommended but not necessary, because the
base can be powered from the
Host. When the base is powered from the Host, select a slow charge rate.
Configuring the Base Station
The base charger/station may be configured in desk application to hold the
reader in two different positions, either a horizontal or standing position, in
order to provide the most comfortable use depending on needs.
Standing
Horizontal

Datalogic Gryphon I GD4400 Specifications

General

Environmental Sealing	IP52
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Connectivity Technology	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Ambient Light Immunity	0 to 100, 000 lux
ESD Protection	16 kV
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Resolution	4 mils
Drop Resistance	Withstands drops from 1.8 m / 5.9 ft to concrete
Weight	195 g / 6.88 oz
Decode Capability	1D Codes, 2D Codes, Postal Codes, Stacked Codes
Scan Rate	Up to 60 frames per second
