Datalogic Gryphon I GD4400 User Manual

Installing the Interface Cable
Product Reference Guide 19
Keyboard Wedge
Connection
The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect
the female to the male end from the keyboard and the remaining end at the
keyboard port at the terminal/PC. Reference Figure 4.

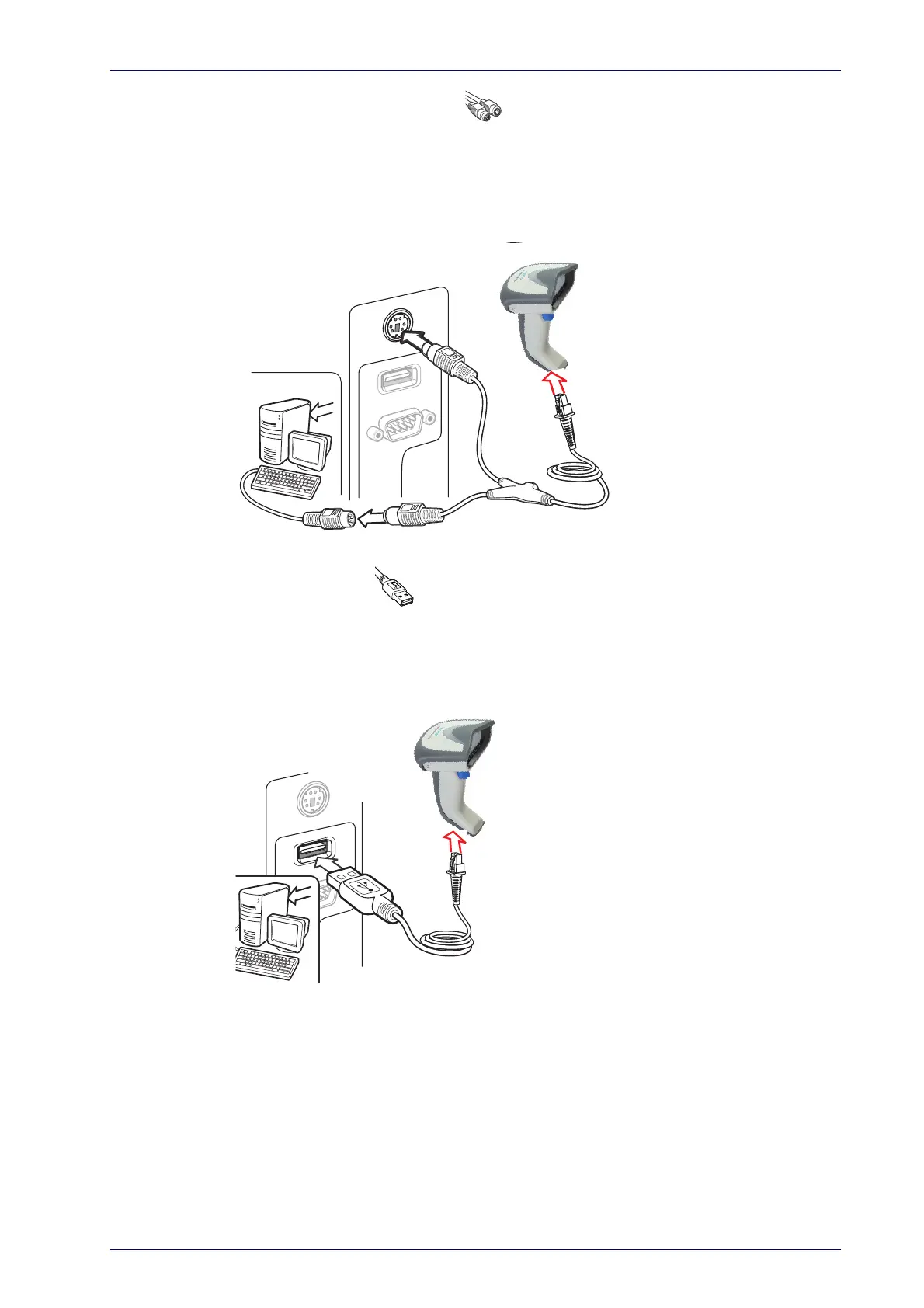

Figure 4. Keyboard Wedge Interface connection
USB
Connection
Connect the reader to a USB port on the terminal/PC using the correct USB
cable for the interface type you ordered. Reference Figure 5.
Figure 5. USB connection
Other connection types are described below and illustrated in Figure 6.

Datalogic Gryphon I GD4400 Specifications

General

Environmental Sealing	IP52
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Connectivity Technology	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Ambient Light Immunity	0 to 100, 000 lux
ESD Protection	16 kV
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Resolution	4 mils
Drop Resistance	Withstands drops from 1.8 m / 5.9 ft to concrete
Weight	195 g / 6.88 oz
Decode Capability	1D Codes, 2D Codes, Postal Codes, Stacked Codes
Scan Rate	Up to 60 frames per second
