3.2.3 2D (Bi-dimensional) Codes

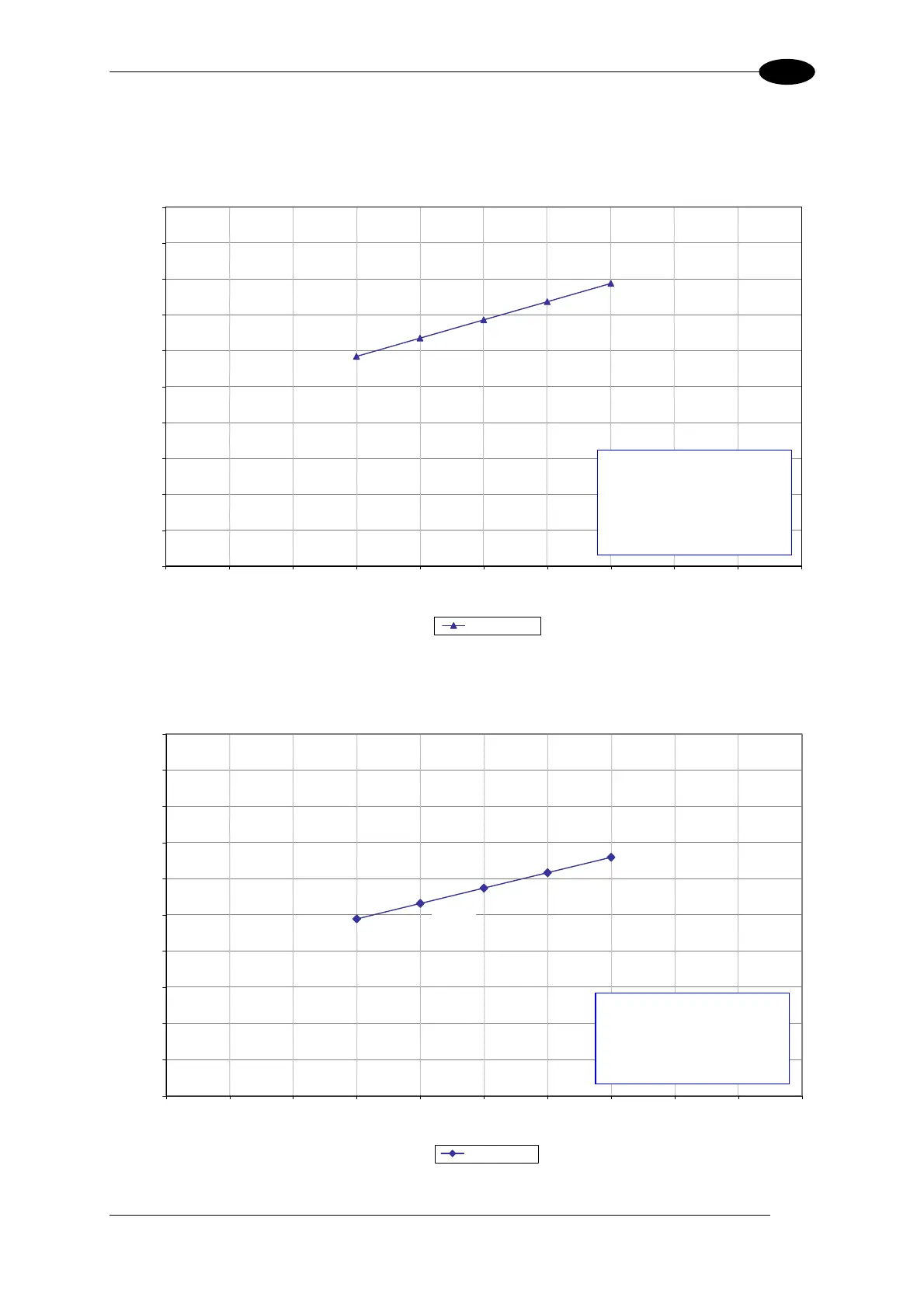

2D Codes – Matrix 400 400-0x0 (SXGA)
16 mm
0
10
20
30
40
50
60
70
80
90
100
50 60 70 80 90 100 110 120 130 140 150
Reading Distance (mm)
Horizontal FOV (mm)
SXGA - 16 mm
0.35 mm
0.38 mm
0.33 mm
0.30 mm
0.27 mm
Code Resolution Conversion
0.27 mm (11 mils)
0.30 mm (12 mils)
0.33 mm (13 mils)
0.35 mm (14 mils)
0.38 mm (15 mils)
2D Codes – Matrix 400 600-0x0 (UXGA)
16 mm
0
10
20
30
40
50
60
70
80
90
100
50 60 70 80 90 100 110 120 130 140 150
Reading Distance (mm)
Horizontal FOV (mm)
UXGA - 16 mm
0.22 mm
0.23 mm
0.18 mm
0.20 mm
0.25 mm
Code Resolution Conversion
0.18 mm (7 mils)
0.20 mm (8 mils)
0.23 mm (9 mils)
0.25 mm (10 mils)
