MATRIX 400™ CODE QUALITY VERIFIER SOLUTION
4
4 EXTERNAL LIGHTING SYSTEMS
4.1 INTRODUCTION
A series of accessory illuminators are available which cover a variety of applications.
The LT-100 Cone Lighting System provides a circular symmetrical light source designed for
the following applications:
• with uneven or noisy background surfaces
• where dot peening or laser etching codes are directly marked onto metal surfaces or
PCBs and need to be highlighted
• in the presence of highly reflective surfaces (metal, glass, etc.) causing direct reflections

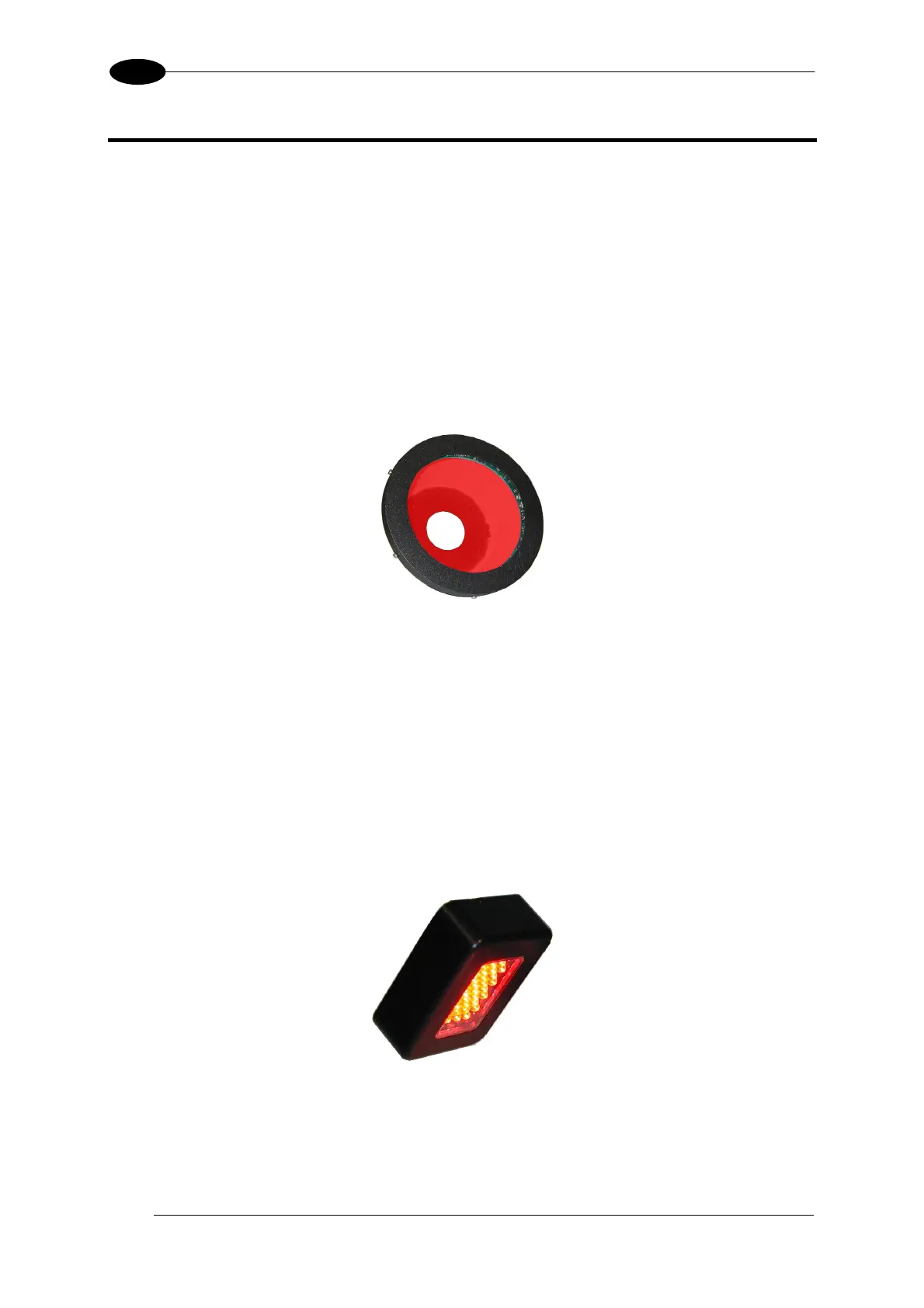

Figure 13 - LT-100 Cone Lighting System
The LT-200 Spot Lighting System provides a high intensity light source designed for the
following applications:
• with uneven, noisy and scratched surfaces
• where dot peening or laser etching codes are directly marked onto metal surfaces or
PCBs and need to be highlighted. Here the use of more than one Spot Light can remove
any shadowing effect.
• in the presence of highly reflective surfaces (metal, glass, etc.) causing direct reflections.
Low light path to surface angles strongly reduce direct reflections.
Figure 14 - LT-200 Spot Lighting System
46
