RAPID CONFIGURATION
1

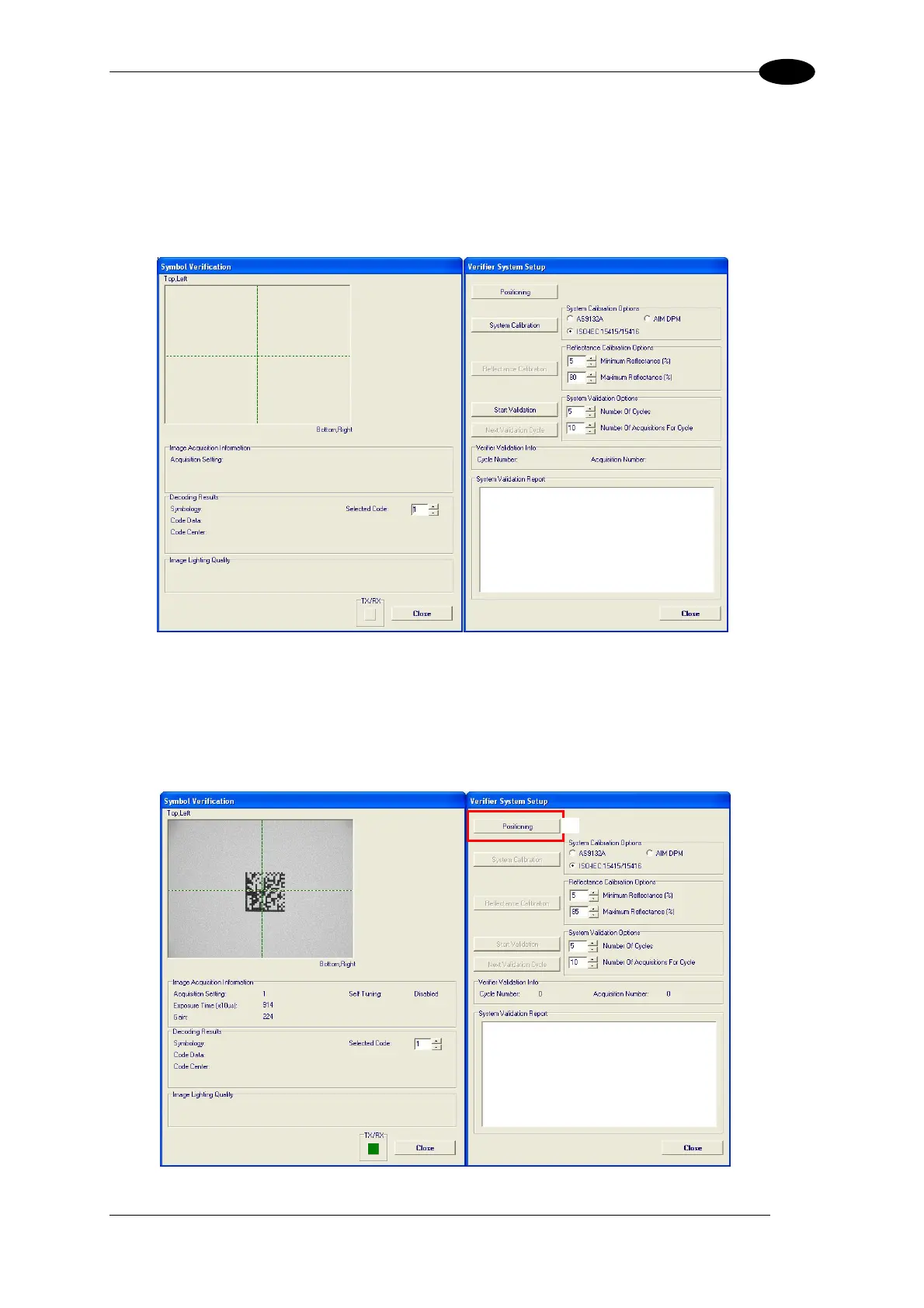

STEP 7 – CALIBRATE VERIFIER SYSTEM
The Verifier Setup option allows system configuration and calibration in a few easy steps.
1. Select the “Symbol Verification” button from the Main menu.
2. Select the “Verifier Setup” button from the Symbol Verification window.
ISO/IEC 15415 AND ISO/IEC 15416 VERIFICATION
3. Place the Data Matrix 24mils calibration symbol printed on the ISO/IEC Calibration
Chart in front of the reader. This reference chart includes also the minimum and
maximum reflectance values for ISO/IEC Reflectance Calibration procedure.
1
17
