MATRIX 400™ CODE QUALITY VERIFIER SOLUTION

4. Press the “Positioning” button. The reader continuously acquires images and gives visual

feedback in the view image window. Move the code to the center of the field of view. The

code must be aligned across the X-axis reference line at the center of the FOV. See

figure above.

Press the “Positioning” button again to stop positioning.

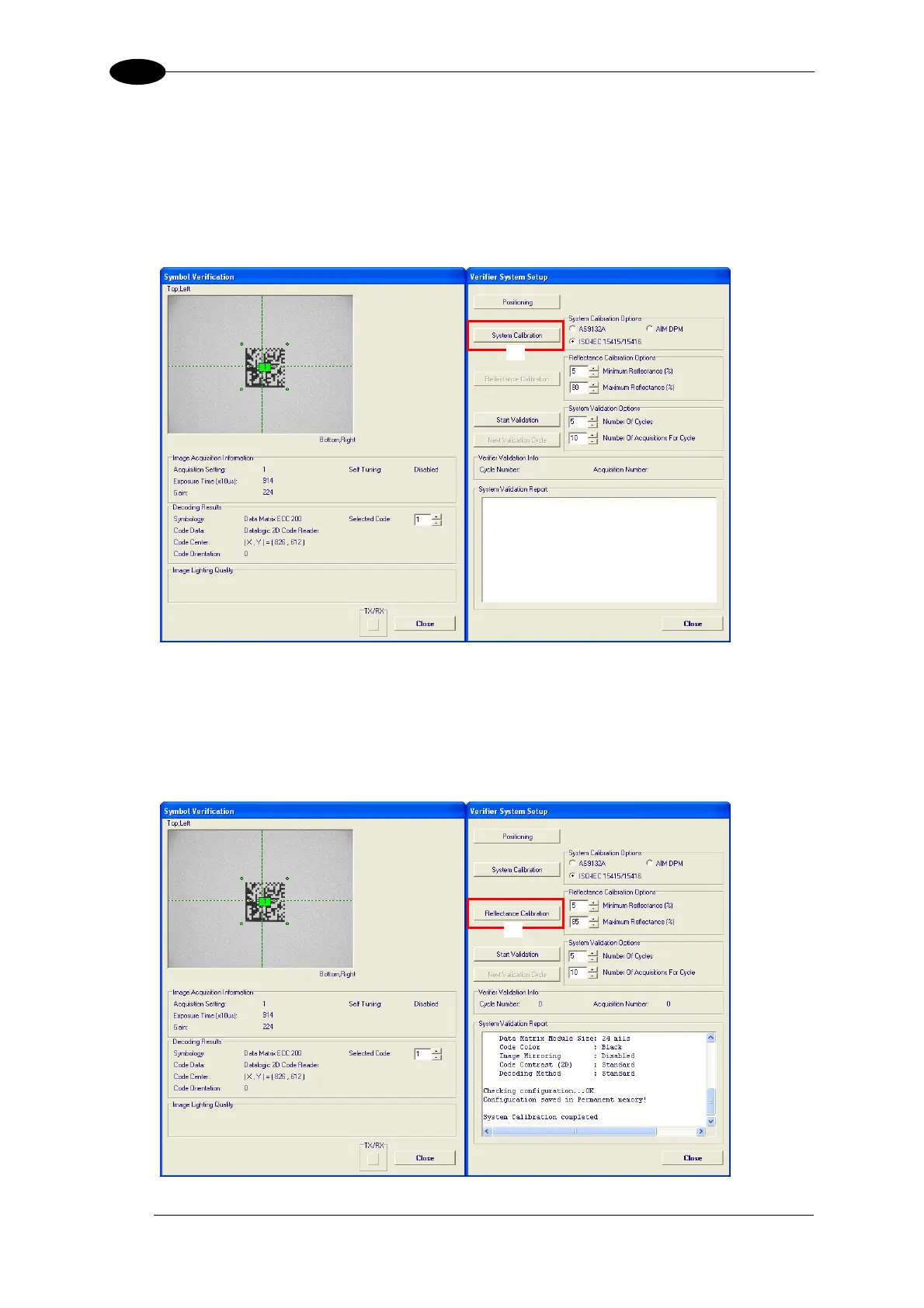

5. Select ISO-IEC 15415/15416 option and press the "System Calibration" button. The

reader flashes once acquiring the image and auto determines the best Exposure and

Gain settings. Moreover, the reader auto determines the best Image Processing and

Decoding parameters.

The System Validation Report section of the Verifier System Setup window shows the

code type results and the calibration settings.
