RAPID CONFIGURATION
1
1 RAPID CONFIGURATION
STEP 1 – CHECK REQUIRED HARDWARE
ISO/IEC 15415 AND ISO/IEC 15416 VERIFICATION
To install the Matrix 400™ reader in an ISO/IEC 15415 or ISO/IEC 15416 symbol verifier
configuration, you need the hardware indicated in Figure 1.
LTC-630 LTC-630
PG 6000 PG 6000
CAB-MS01 CAB-MS01
CBX
Main Interface
CBX
Main Interface
Host
Host
Matrix 400™
Matrix 400™
BK-4990 BK-4990
LT-630 LT-630
Code Surface Code Surface

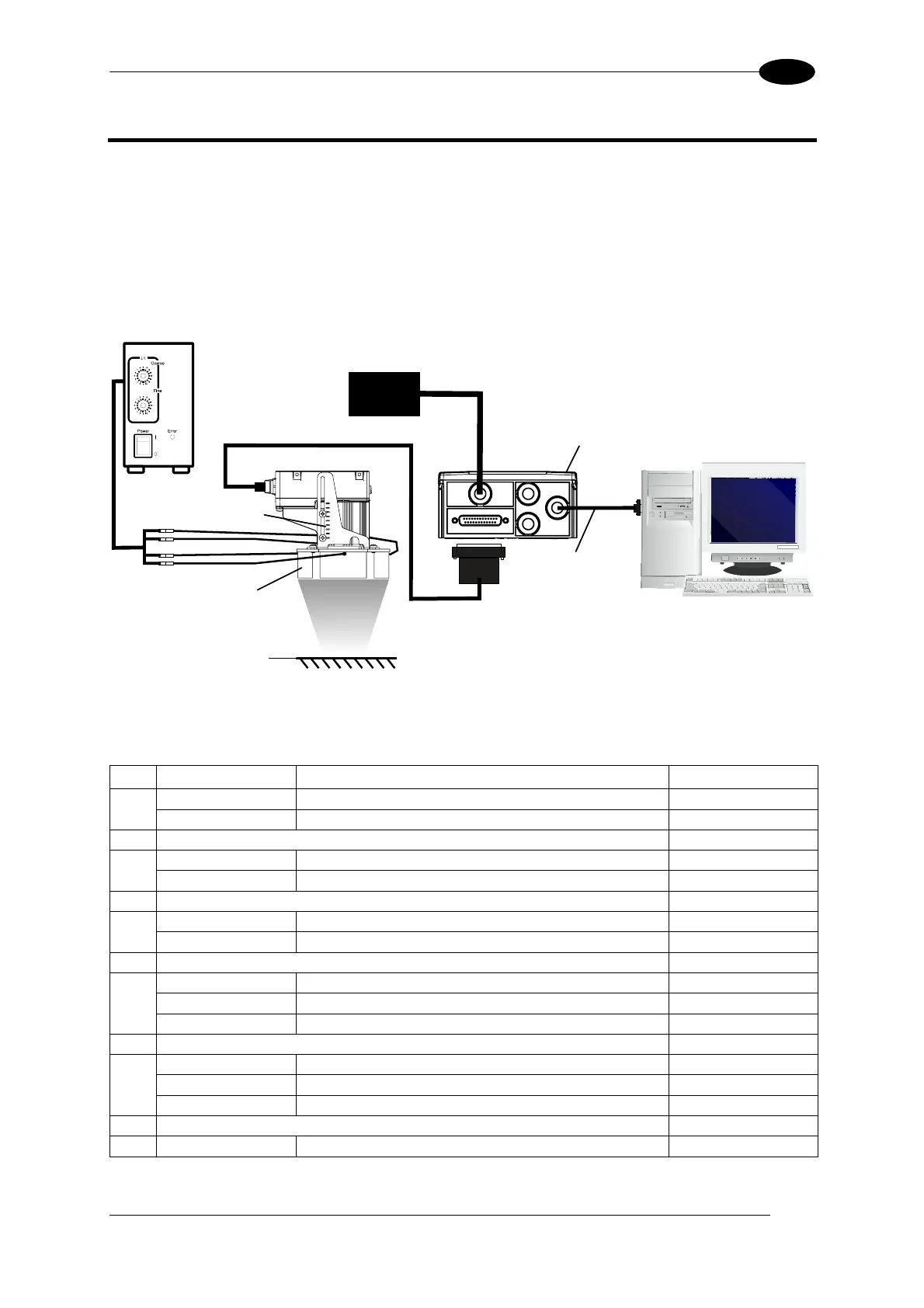

Figure 1 - ISO/IEC 15415 and ISO/IEC 15416 Verifier System Required Hardware
REQUIRED ACCESSORIES:
Item
Accessory
Description Order No.
Matrix 400-x00-0x0 Reader 1
LNS-1116 16 mm C-Mount Lens (Recommended) 93ACC1796
CBX100 Compact Connection Box 93A301067 2
CBX500 Modular Connection Box 93A301068
CAB-MS01 M16-IP67 Cable To CBX (1M) 93A051358 3
CAB-ETH-M01 M12-IP67 Ethernet Cable (1M) (Optional) 93A051346
PG6000 AC/DC Power Supply Unit (US) 93ACC1718
PG6001 AC/DC Power Supply Unit (UK) 93ACC1719
4
PG6002 AC/DC Power Supply Unit (EU) 93ACC1720
LT-630 Four Bar Lighting System 93A401018
LTC-630 Four Bar Lighting System Controller 93ACC1790
5
ISO/IEC Chart Calibration Chart for Code Verifier Solution (*) 93ACC1841
6 BK-4990 Generic LT Bracket Matrix 400 93ACC1805
(*) Also included in the LT-630 Four Bar Lighting System package.
