MATRIX 400™ CODE QUALITY VERIFIER SOLUTION
1
AS9132A AND AIM DPM VERIFICATION:
To install the Matrix 400™ reader in an AS9132A or AIM DPM symbol verifier configuration,
you need the hardware indicated in Figure 2.
PG 6000
CAB-MS01
CBX
Main Interface
Host
Matrix 400™
BK-4410
LT-410
Code Surface
PG 6000
CAB-MS01
CBX
Main Interface
Host
Matrix 400™
BK-4990
LT-511
Code Surface

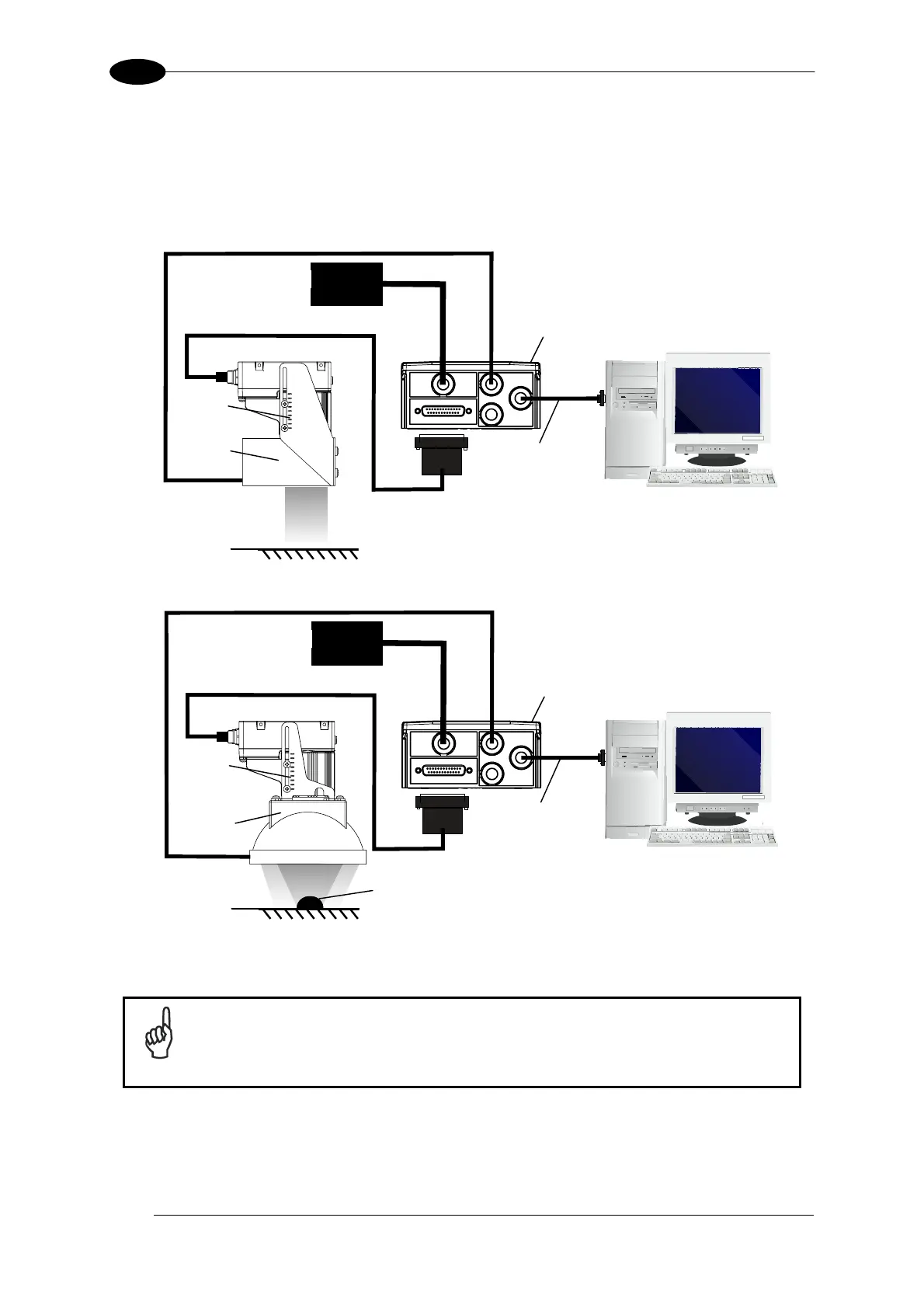

Figure 2 - AS9132 and AIM DPM Verifier System Required Hardware
NOTE
The recommended ISO/15415 and ISO/IEC 15416 lighting environment
(see Figure 1) can be used also for AS9132A and AIM DPM symbol
verification according to your application requirements.
