MATRIX 400™ CODE QUALITY VERIFIER SOLUTION
1
STEP 9 – VERIFY SYMBOL
When the system is configured and calibrated, you can move again to the Symbol
Verification window and perform the selected verification procedure.
1. Select the “Symbol Verification” button from the Main menu.
2. Place the code to be verified in front of the reader.
1

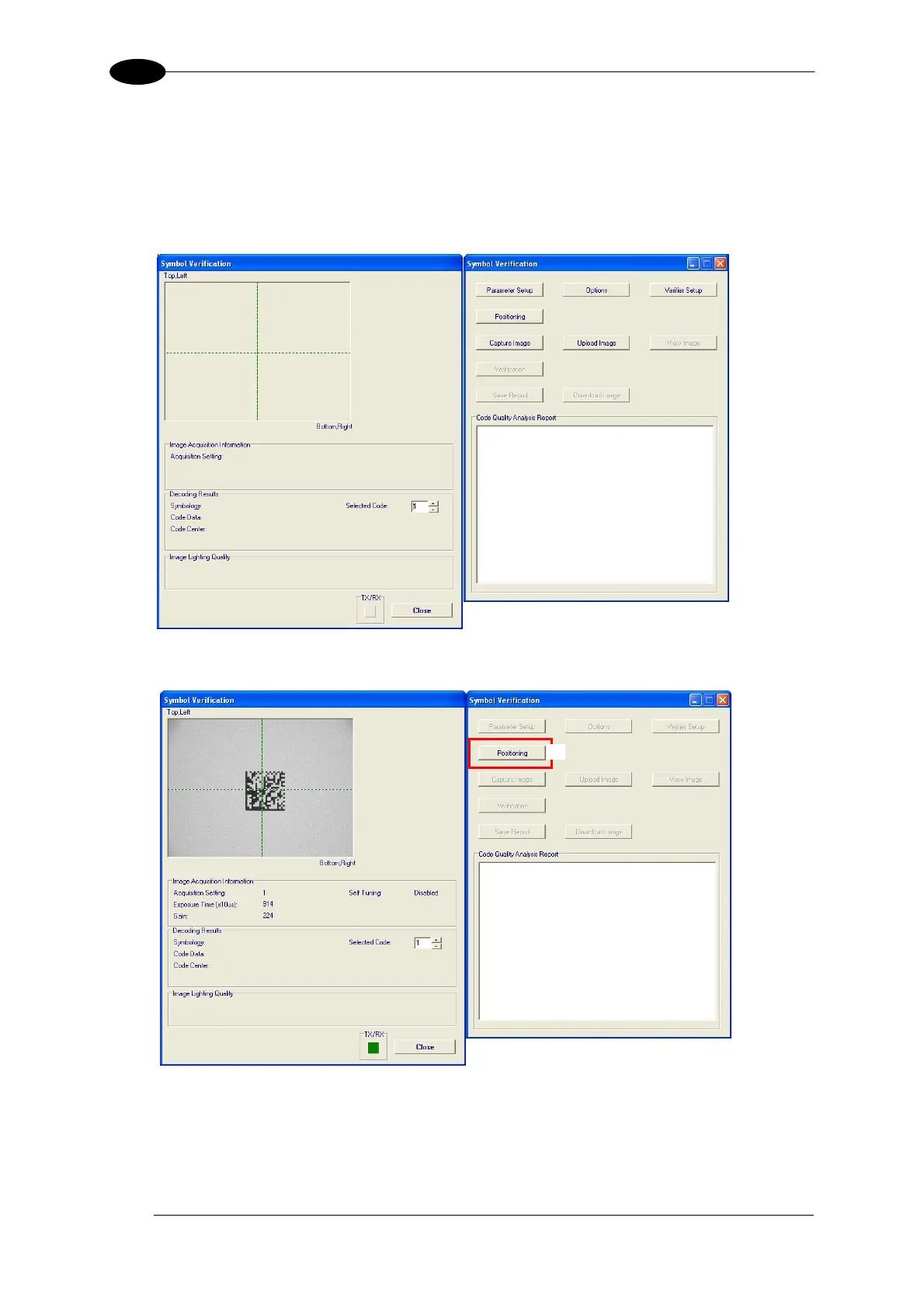

8. Press the "Positioning" button. The reader continuously acquires images and gives visual
feedback in the view image window. Move the code to the center of the field of view. The
code must be aligned across the X-axis reference line at the center of the FOV. See
figure above.
