RAPID CONFIGURATION
1
Repeat steps 3 and 4 rotating clockwise the symbol of approximately 72°, 144°, 216°
and 288° in order to achieve a full 360° rotation. After each rotation press the “Next
Validation Cycle” button. The reader performs the specified number
7.
of image acquisitions
8. Stability window
related to the enabled Standard is showed (see Figure 8 and Figure 9).
and gives visual feedback in the System Validation Report section.
After the final rotation and trigger, the Verifier System Measurement

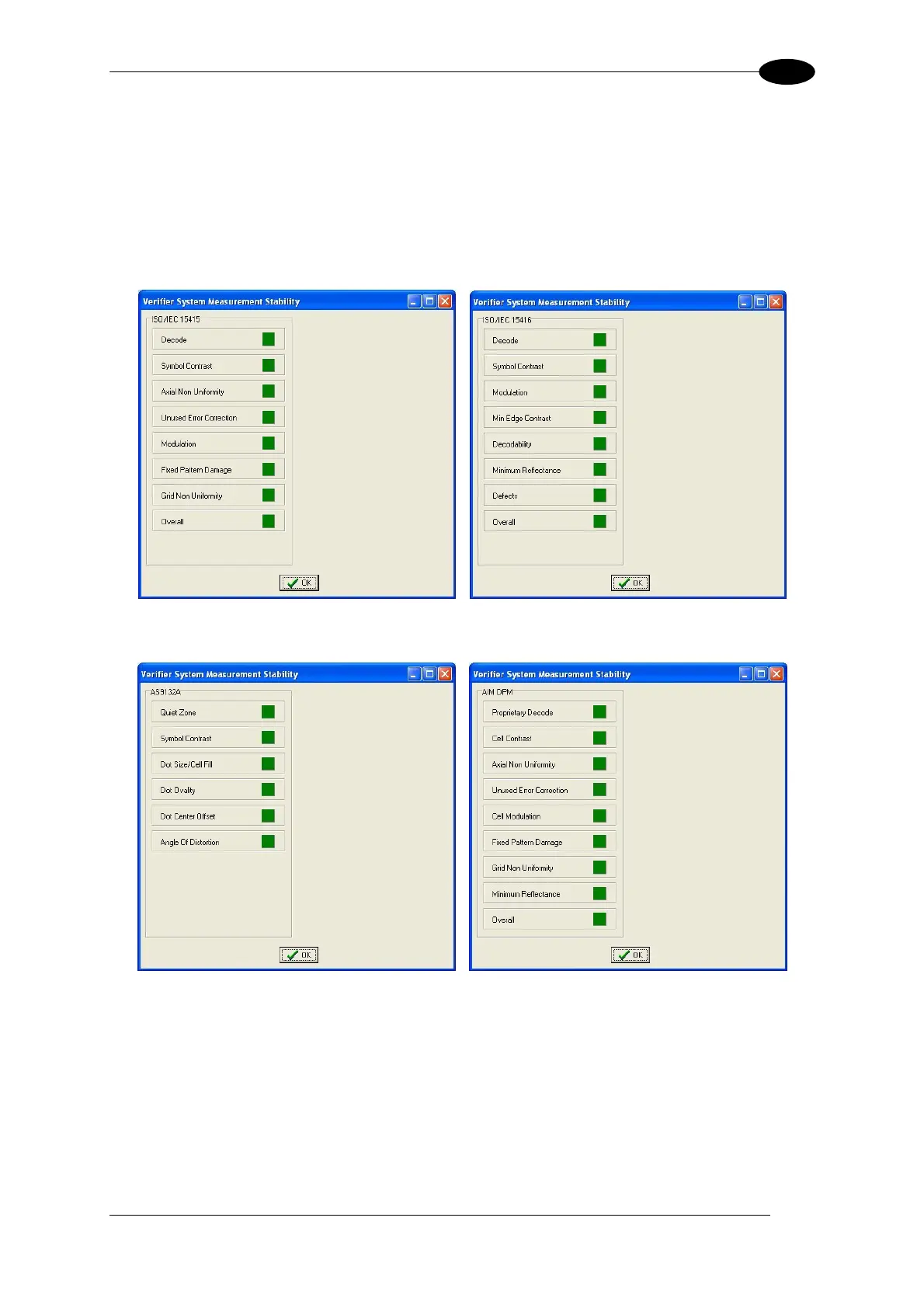

Figure 8 - ISO/IEC 15415 And ISO/IEC 15416 Measurement Stability windows
Figure 9 - AS9132A And AIM DPM Measurement Stability windows
