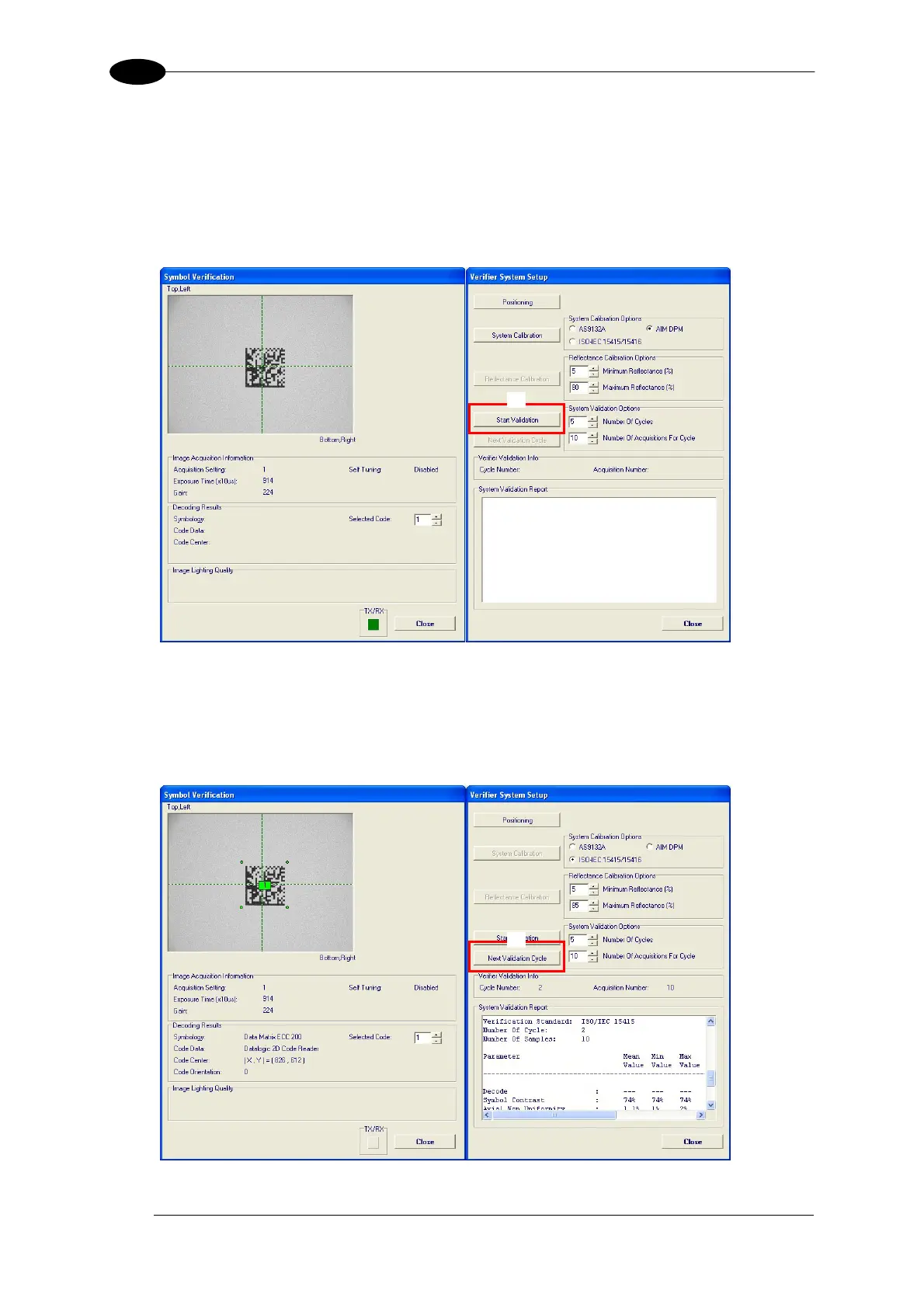

4. Press the "Positioning" button. The reader continuously acquires images and gives visual
feedback in the view image window. Move the code to the center of the field of view. The
code must be aligned across the X-axis reference line at the center of the FOV. See
figure above.
Press the “Positioning” button again to stop positioning.
2
5. Use the spin boxes in the System Validation Options section to set the Number Of Cycles
and the the Number Of Acquisitions For Cycle to be performed (suggested values are
respectively “5” and “10”).
6. Press the “Start Validation” Button. The reader performs the specified number of image
acquisitions and gives visual feedback in the System Validation Report section.
