MATRIX 400™ CODE QUALITY VERIFIER SOLUTION
4

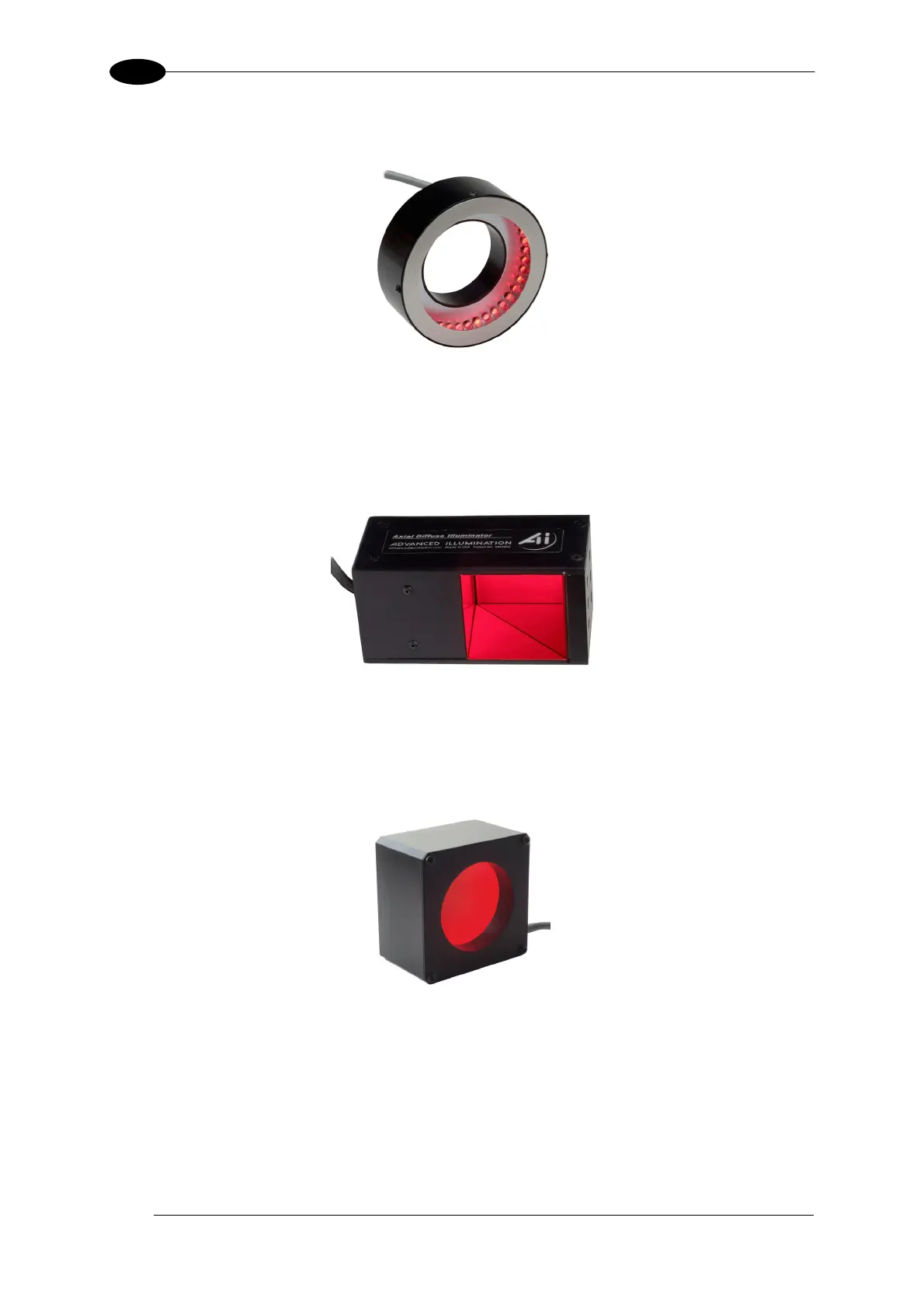

The LT-316 60° Dark Field Ring Lighting System is designed for reading codes produced by
Dot Peening (especially by a 120° stylus) or Laser Etching on flat, reflective parts.
Figure 18 - LT-316 60° Dark Field Ring Lighting System
The LT-410 Coaxial Lighting System is an axial diffuse illuminator designed for reading
codes produced by Dot Peening or Laser Etching on flat parts having a matte, specular or
mixed surface reflectivity.
Figure 19 - LT-410 Coaxial Lighting System
The LT-510 Mini Dome Lighting System is a diffuse mini dome light designed for reading
printed label or Direct Marking codes on small parts with a curved or specular surface.
Figure 20 - LT-510 Mini Dome Lighting System
