3.2 CONNECTION TO USB PERIPHERALS
You can connect the Datalogic Memor to a standard 101-key USB keyboard or to a
standard USB flash memory device. Connect the terminal to a standard A (4 pin
female) to mini A (5 pin male) USB cable. For all these devices maximum current
draw must be less than 100mA.

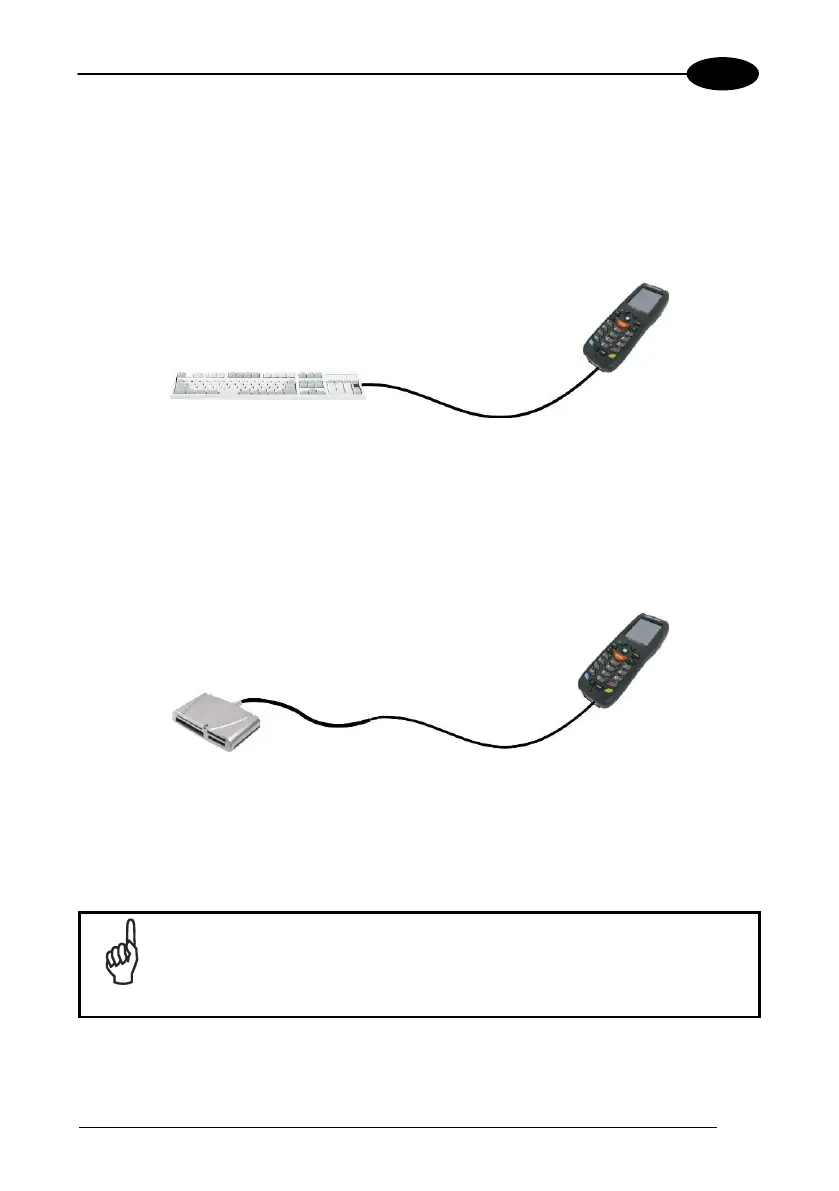

Key:
A Keyboard with USB interface C 94A051024 (Standard A to Mini A USB
cable)
B Datalogic Memor
Key:
A USB hard drive/ external
memory source
C 94A051024 (Standard A to Mini A USB
cable)
B Datalogic Memor
Connect first the USB peripheral to the cable, and then the cable to
the Datalogic Memor.
NOTE
