Datalogic Memor User Manual

CONNECTIONS
21
3

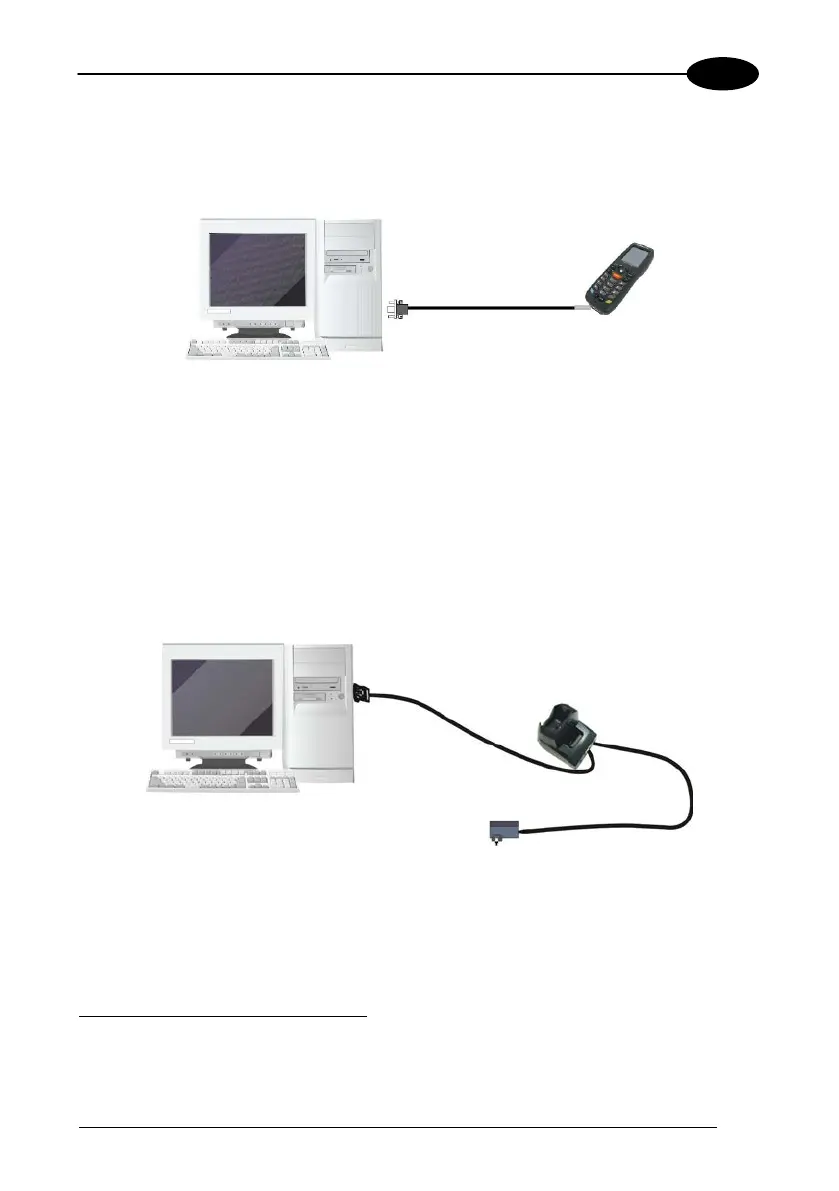

3.3 RS232 CONNECTION
You can use a cable to directly connect the Datalogic Memor to a host computer to
transfer data through the RS232 interface:
Key:
A Host computer C Datalogic Memor
B 94A051022 WIN-NET
(HRS ST40X-18S-CV)
The Single Slot Dock can be connected to the Host by means of a standard null
modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections.
Once the host computer has been turned on, insert the Datalogic Memor mobile
computer into the dock.
Key:
A Host Computer C Single Slot Dock
B 94A051020 CAB-427
RS232 Null Modem Cable
D Power Supply (only necessary for battery
charging)
∗
∗
In this case the power supply is only necessary for battery charging. Insert the power supply
plug into the power jack on the base of the cradle and attach the power supply to a power
outlet.
A
B
C
A
B
C
D

Datalogic Memor Specifications

General

Scan speed	104 sec/page
Wavelength	630 nm
Sensor type	Laser
Decoding standards	UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11, GS1 Databar.
Product color	Black
Internal memory	256 MB
Built-in processor	PXA310
Display resolution	240 x 320 pixels
Processor frequency	624 MHz
Bluetooth	Yes
Standard interfaces	USB, RS-232
Battery type	Li-polymer/Li-ion
Input voltage	5 V
Power consumption	1100 mA
Safety	Class 2
Display	Reflective TFT 64K
Dimensions (WxDxH)	152 x 55 x 40 mm
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	230 g
