4.2.2 Imager Data Capture
The Datalogic Memor Imager captures a picture of the entire bar code. The omni-
directional scanning does not require that the operator orient the bar code to align
with the scan pattern.
To read a 1D or 2D code, simply point the Datalogic Memor Imager model onto the
code and press the SCAN Key or the pistol trigger.
The Datalogic Memor Imager uses an intelligent aiming system pattern, similar to
those on cameras, indicating the field of view, which should be positioned over the
code:

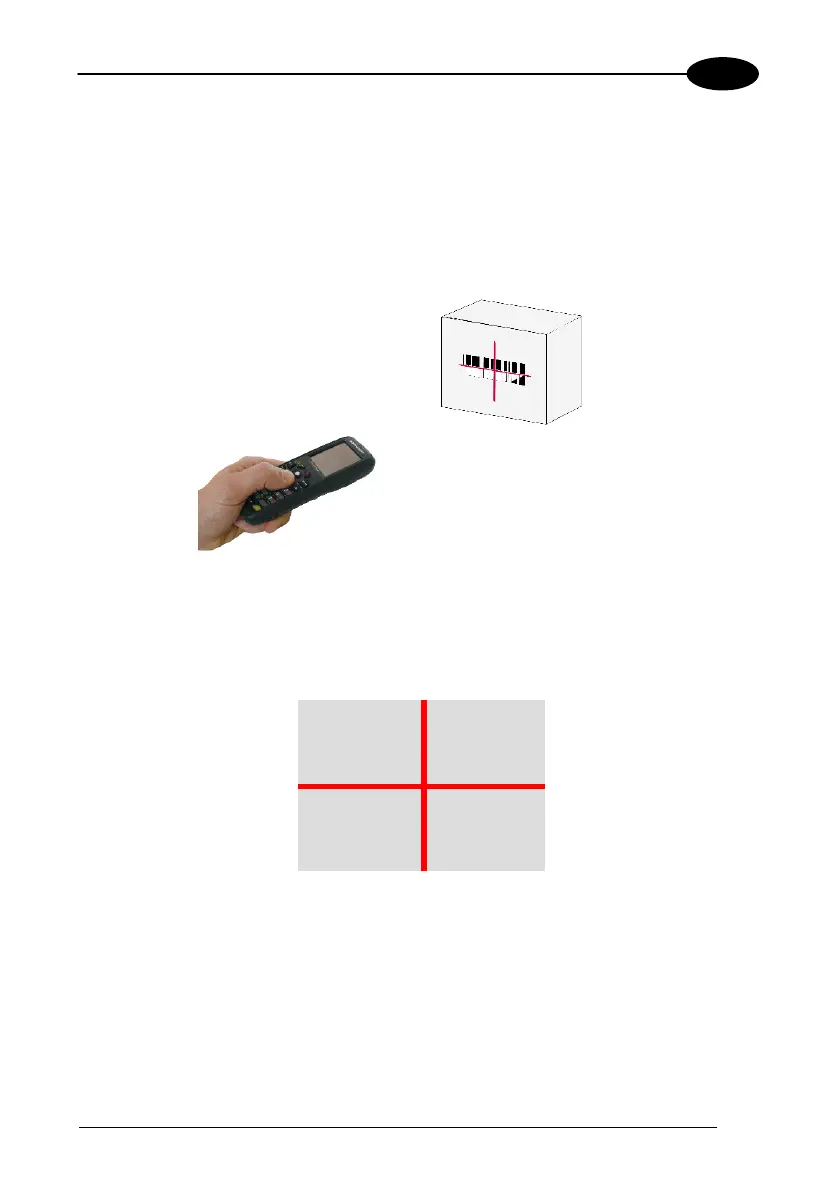

Aiming System
If the aiming system pattern is centered over the entire symbology as shown in the
following figure, either wait for the timeout or release the Scan key or the trigger to
capture the image.
A red beam illuminates the code, which is captured and decoded. You will get a good
read.

Datalogic Memor Specifications

General

Scan speed	104 sec/page
Wavelength	630 nm
Sensor type	Laser
Decoding standards	UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11, GS1 Databar.
Product color	Black
Internal memory	256 MB
Built-in processor	PXA310
Display resolution	240 x 320 pixels
Processor frequency	624 MHz
Bluetooth	Yes
Standard interfaces	USB, RS-232
Battery type	Li-polymer/Li-ion
Input voltage	5 V
Power consumption	1100 mA
Safety	Class 2
Display	Reflective TFT 64K
Dimensions (WxDxH)	152 x 55 x 40 mm
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	230 g
