Datalogic Memor User Manual

1 DATALOGIC MEMOR™
54
4
4.5.6 Files Admin
The Files Admin applet enables control of the permanence of files in the Windows
CE System Folder.

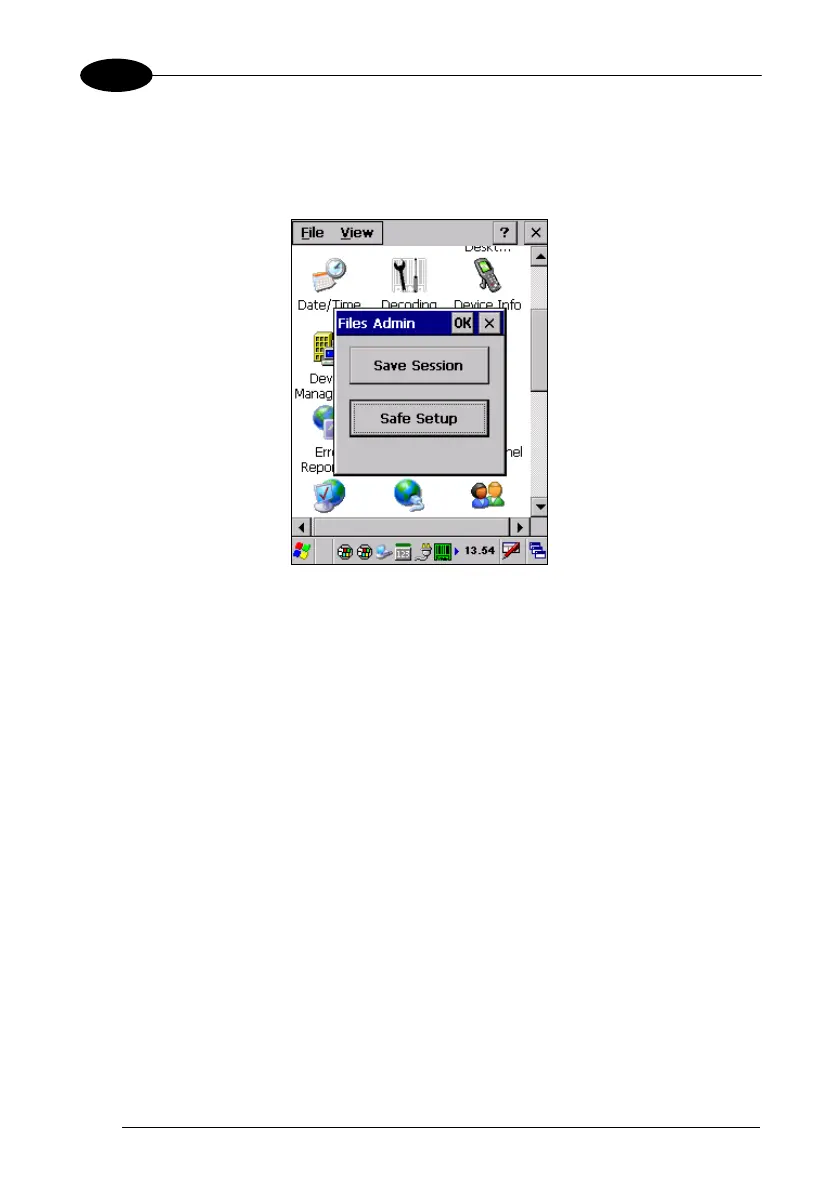

Files Admin Main Window
Two functions are available:
Save Session: with this button all files will be permanently saved in the \Windows
directory in non-volatile memory. This function guarantees the steady maintenance of
every file produced during the current working session - even of sub-directories and
relevant files - with the exception of the files belonging to the FLASH image.
These current working session files will be backed-up in the \Backup\Windows
directory.
At the next cold boot, the files previously saved in the \Backup\Windows directory will
be restored to the Windows directory.
Safe Setup: with this button, the installation of software programs will be saved to
non-volatile memory (Backup directory). Before doing this, it will be checked that the
Backup directory has enough space to save the files. If the directory space is not
enough, an error message will be shown and the program will exit the Safe Setup
function.

Datalogic Memor Specifications

General

Scan speed	104 sec/page
Wavelength	630 nm
Sensor type	Laser
Decoding standards	UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11, GS1 Databar.
Product color	Black
Internal memory	256 MB
Built-in processor	PXA310
Display resolution	240 x 320 pixels
Processor frequency	624 MHz
Bluetooth	Yes
Standard interfaces	USB, RS-232
Battery type	Li-polymer/Li-ion
Input voltage	5 V
Power consumption	1100 mA
Safety	Class 2
Display	Reflective TFT 64K
Dimensions (WxDxH)	152 x 55 x 40 mm
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	230 g
