1 DATALOGIC MEMOR
52
4

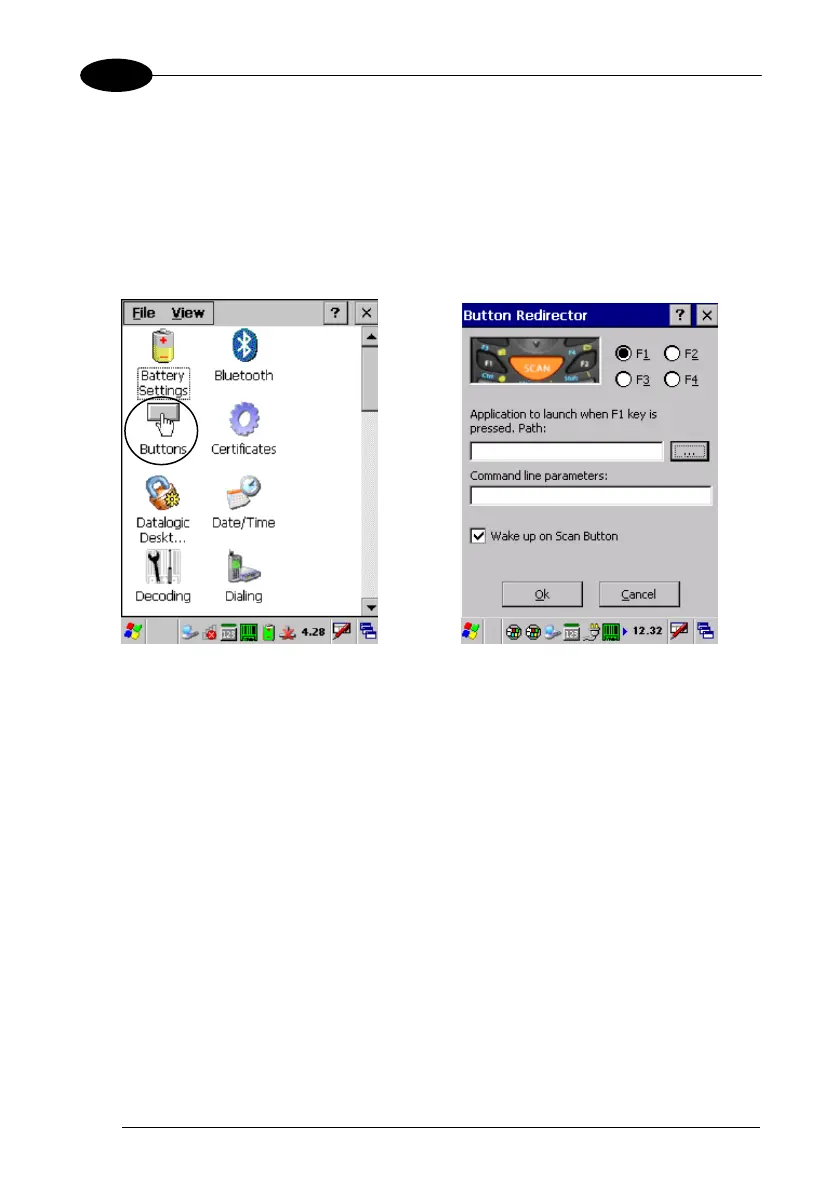

4.5.4 Buttons
You can use the Buttons Tab to associate specific keys, such as <F1>-<F4>, with
specific applications.
From the control panel main window, double tap the DL Buttons icon.
On the Buttons tab, customize the program hardware buttons to launch your most
used applications. Select the button you want to assign a function to, and then
browse to select the application to be assigned.
You can also select to wake up the terminal by the SCAN key.

Table of Contents

Other manuals for Datalogic Memor

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Datalogic Memor and is the answer not in the manual?

Datalogic Memor Specifications

General IconGeneral
Scan speed104 sec/page
Wavelength630 nm
Sensor typeLaser
Decoding standardsUPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11, GS1 Databar.
Product colorBlack
Internal memory256 MB
Built-in processorPXA310
Display resolution240 x 320 pixels
Processor frequency624 MHz
BluetoothYes
Standard interfacesUSB, RS-232
Battery typeLi-polymer/Li-ion
Input voltage5 V
Power consumption1100 mA
SafetyClass 2
DisplayReflective TFT 64K
Dimensions (WxDxH)152 x 55 x 40 mm
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 50 °C
Weight and Dimensions IconWeight and Dimensions
Weight230 g
