Datalogic Memor User Manual

USE AND FUNCTIONING
45
4

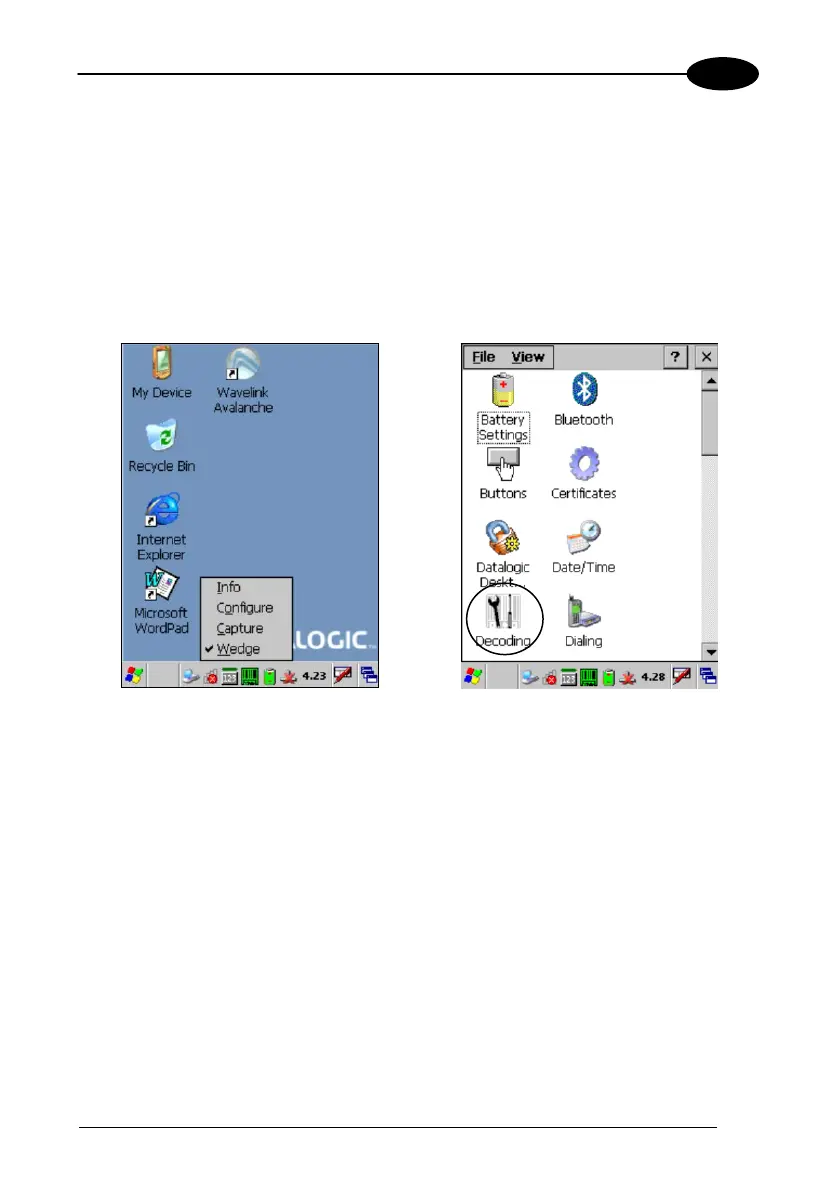

4.5.1 Data Capture Configuration
From the Windows CE Taskbar, tap the "Decoding" icon to open a drop–down menu.
By selecting the Info item from this drop-down menu you can access information
about the Scanner and the Software; the Configure item opens the configuration
applet (Data Capture Configuration Window), while Capture accesses the data
capture applet (Data Capture Window), which enables code reading.
The last menu item (Wedge) enables Wedge Emulation.
Decoding can also be accessed from the Control Panel.

Datalogic Memor Specifications

General

Scan speed	104 sec/page
Wavelength	630 nm
Sensor type	Laser
Decoding standards	UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11, GS1 Databar.
Product color	Black
Internal memory	256 MB
Built-in processor	PXA310
Display resolution	240 x 320 pixels
Processor frequency	624 MHz
Bluetooth	Yes
Standard interfaces	USB, RS-232
Battery type	Li-polymer/Li-ion
Input voltage	5 V
Power consumption	1100 mA
Safety	Class 2
Display	Reflective TFT 64K
Dimensions (WxDxH)	152 x 55 x 40 mm
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	230 g
