Datalogic Memor User Manual

USE AND FUNCTIONING
83
4
Removing a Password
To remove a password:
1. Enter blanks in both “Password” fields.
2. Select/tap “Set Password”.

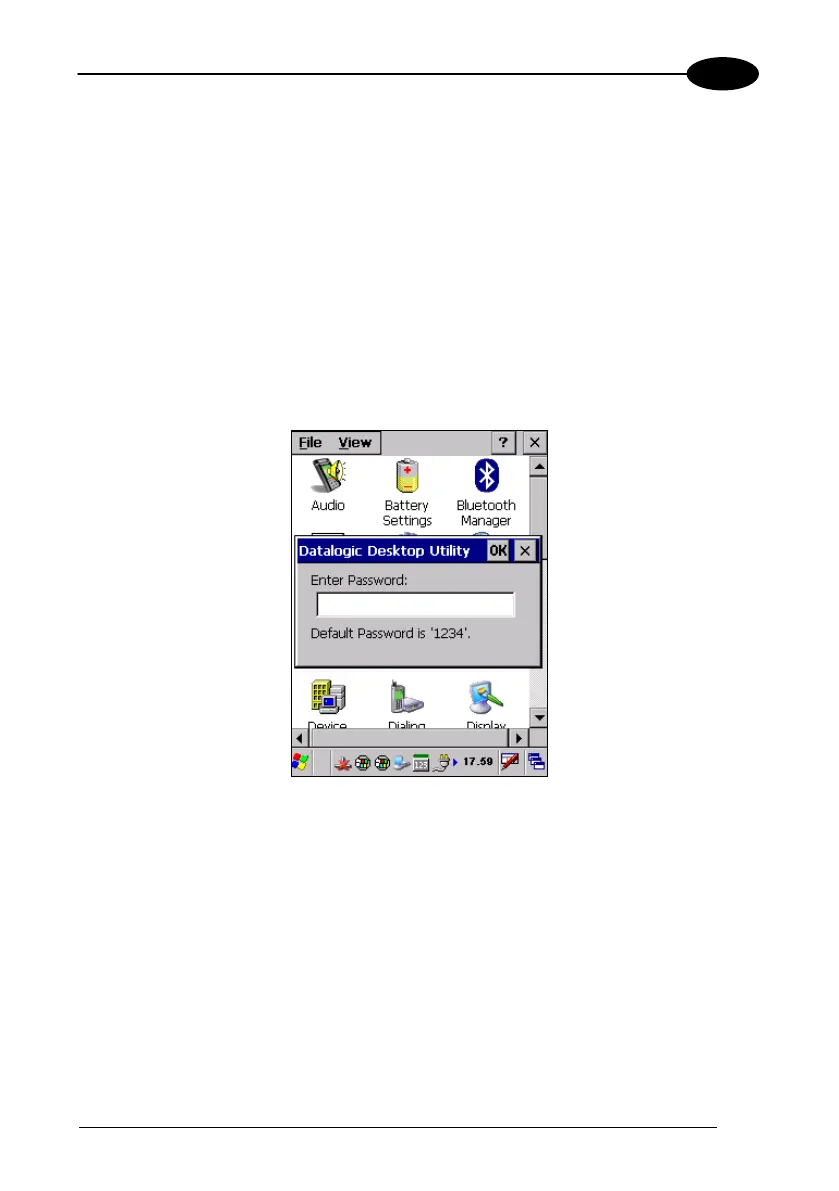

Password Request Dialog Box
Once the password is set, the next time you open the “Datalogic Desktop Utility”, the
DDU Password dialog box opens.
This dialog box will only open if a password was defined.
1. Type in your password using either the keypad on the unit, or using the stylus on
the soft input panel (SIP).
If you enter an incorrect password, the system will prompt you to input the
correct one.
2. Select/tap “OK” to verify the password. Or tap “X” to cancel.

Datalogic Memor Specifications

General

Scan speed	104 sec/page
Wavelength	630 nm
Sensor type	Laser
Decoding standards	UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11, GS1 Databar.
Product color	Black
Internal memory	256 MB
Built-in processor	PXA310
Display resolution	240 x 320 pixels
Processor frequency	624 MHz
Bluetooth	Yes
Standard interfaces	USB, RS-232
Battery type	Li-polymer/Li-ion
Input voltage	5 V
Power consumption	1100 mA
Safety	Class 2
Display	Reflective TFT 64K
Dimensions (WxDxH)	152 x 55 x 40 mm
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	230 g
