Mounting the BC9xx0 Cradle
Product Reference Guide
11
Mounting for Portable Use
If portability of the cradle is required, the metal plate must be used. There
are two ways this can be done: (1) by first mounting the metal plate on a flat
surface so the cradle can be slid off and on, or (2) mounting the metal plate
onto the back of the base station and then screwing both to the desired sur-
face.
For additional security on wall mounting, it is strongly recommended
that the cradle be secured into place using two auxiliary screws through
the mounting holes on the side.
Mounting the Metal Plate
1. Affix the metal plate onto the desired mounting surface using the two
center screw holes (see Figure 4 on page 11).
2. Remove the adhesive strips protecting the m
o
unting tabs on the cradle,
shown in
Figure 3.
3. Slide the tabs on the back of the cradle onto the metal plate as shown
in Figure 4.
4.
After aligning the tabs, push up to lock into place.

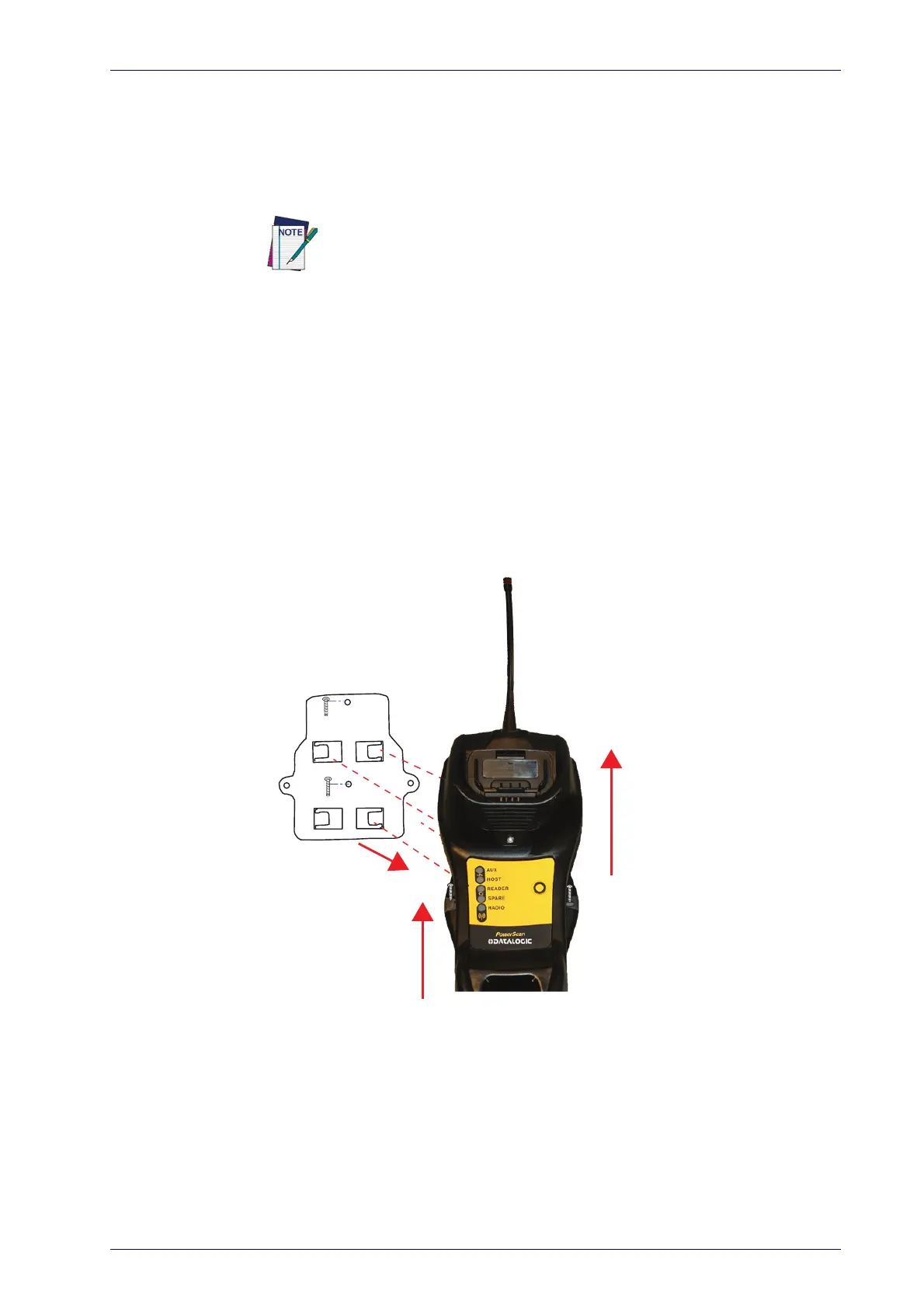

Figure 4. Mounting Plate on Wall
