To Next Page

To Previous Page

Enter/Exit Programming Mode

226

PowerScan™ PD9530/PBT9500/PM9500

OTHER BLUETOOTH FEATURES

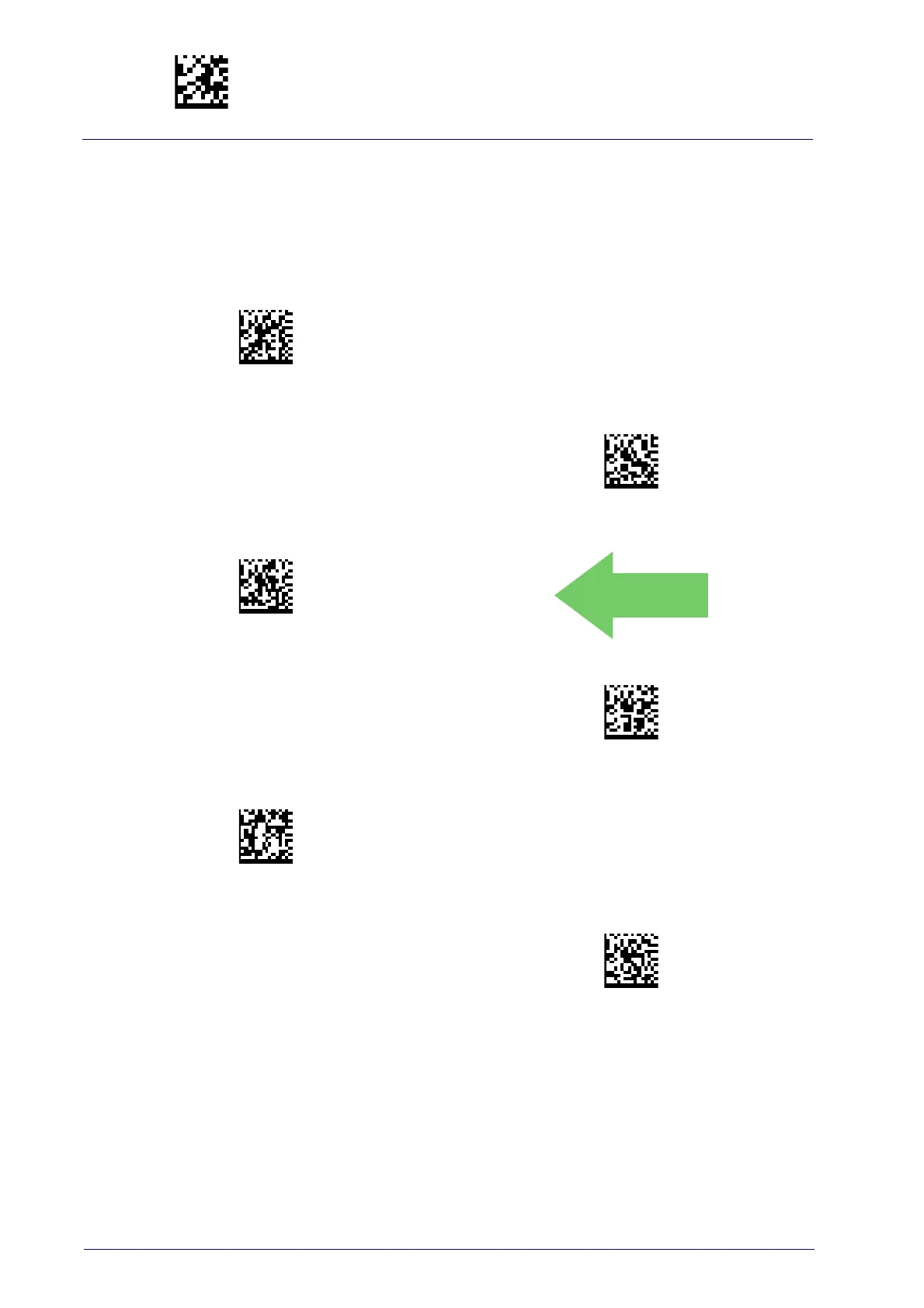

Bluetooth Poll Rate

This feature specifies the time between Bluetooth polls.

$CBTST00(CR)

Bluetooth Poll Rate = Maximum Bluetooth Poll Rate

$CBTST01(CR)

Bluetooth Poll Rate = 10 ms

$CBTST02(CR)

Bluetooth Poll Rate = 20 ms

DEFAULT

$CBTST05(CR)

Bluetooth Poll Rate = 50 ms

$CBTST0A(CR)

Bluetooth Poll Rate = 100 ms

$CBTST14(CR)

Bluetooth Poll Rate = 200 ms

Table of Contents3
Introduction11
About this Manual11
Overview11
Manual Conventions12
References12
Technical Support12
Datalogic Website Support12
Reseller Technical Support12
Telephone Technical Support12
About the Reader13
PM8500 Compatible Mode13
The Bc9Xx0™ Base Station/Charger14
Battery Safety15
Programming the Reader16
Configuration Methods16
Setup17
Unpacking17
Setting up the Reader17
Connecting the Cable (Corded Versions)18
Configuring the Base Station19
Mounting the Bc9Xx0 Cradle19
Mounting Brackets19
Permanent Mounting20
Mounting for Portable Use21
System Connections22
Connecting and Disconnecting the Interface Cable23
Bc9Xx0 Configuration24
Interface Selection24
Setting the Interface24
Customizing Configuration Settings27
Configure Interface Settings27
Global Interface Features27
Configuring Other Features27
Software Version Transmission27
Self Test and Statistics27
Resetting the Product Configuration to Defaults28
Set Date and Time28
Linking the Reader29
Link Datalogic RF Devices to Base29
Linking to a Bluetooth Adapter in Serial Port Profile (Slave) Mode29
Linking to a Bluetooth Adapter in HID Mode29
Power off30
Configuration Using Bar Codes31
Configuration Parameters31
Global Interface Features33
Host Commands - Obey/Ignore33
USB Suspend Mode33
Only Interface2535
Baud Rate36
Data Bits37
Stop Bits37
Parity38
Handshaking Control39
RS-232/USB-Com Interfaces3040
Intercharacter Delay41
Beep on ASCII BEL41
Beep on Not on File42
ACK NAK Options42
ACK Character43
NAK Character43
ACK NAK Timeout Value44
ACK NAK Retry Count44
ACK NAK Error Handling45
Indicate Transmission Failure45
Disable Character46
Enable Character46
Keyboard Settings47
Country Mode48
Send Control Characters51
Wedge Quiet Interval52
Intercode Delay52
Caps Lock State53
Numlock53
USB Keyboard Speed54
USB Keyboard Numeric Keypad55
USB-OEM Interface57
USB-OEM Device Usage58
Interface Options58
Data Format59
Global Prefix/Suffix (Header/Terminator)60
Global AIM ID61
Set AIM ID Individually for GS1-12864
Label ID65
Label ID: Pre-Loaded Sets65
Individually Set Label ID66
Label ID Control66
Label ID Symbology Selection − 1D Symbologies67
Advanced Formatting: User Label Edit71
Case Conversion71
Character Conversion71
Reading Parameters73
Double Read Timeout74
Led and Beeper Indicators76
Power on Alert76
Good Read: When to Indicate76
Good Read Beep Type77
Good Read Beep Frequency77
Good Read Beep Length78
Good Read Beep Volume79
Good Read LED Duration80
Scanning Features81
Scan Mode81
Stand Mode Indication82
Pick Mode82
Stand Mode Sensitivity83
Stand Mode Illumination off Time83
Scanning Active Time84
Stand Illumination Control84
Flash on Time85
Flash off Time85
Aiming Pointer86
Aiming Duration Timer86
Green Spot Duration87
Partial Label Reading Control87
Decode Negative Image88
Image Capture88
Multiple Label Reading89
Multiple Labels Per Frame89
Multiple Labels Ordering by Code Symbology90
Multiple Labels Ordering by Code Length90
1D Symbologies91
Disable All Symbologies92
Code Ean/Upc93
Coupon Control93
Upc-A94
UPC-A Enable/Disable94
UPC-A Check Character Transmission94
Expand UPC-A to EAN-1395
UPC-A Number System Character Transmission95
UPC-A 2D Component96
Upc-E96
UPC-E Enable/Disable96
UPC-E Check Character Transmission97
UPC-E 2D Component97
Expand UPC-E to EAN-1398
Expand UPC-E to UPC-A98
UPC-E Number System Character Transmission99
Gtin Formatting99
Ean 13 (Jan 13)100
EAN 13 Enable/Disable100
EAN 13 Check Character Transmission100
EAN-13 Flag 1 Character101
EAN-13 ISBN Conversion101
EAN-13 2D Component102
Issn102
ISSN Enable/Disable102
Ean 8 (Jan 8)103
EAN 8 Enable/Disable103
EAN 8 Check Character Transmission103
Expand EAN 8 to EAN 13104
EAN 8 2D Component104
Upc/Ean Global Settings105
UPC/EAN Price Weight Check105
UPC/EAN Quiet Zones106
Add-Ons107
Optional Add-Ons107
Optional Add-On Timer108
Optional GS1-128 Add-On Timer110
Code 39113
Code 39 Enable/Disable113
Code 39 Check Character Calculation113
Code 39 Check Character Transmission114
Code 39 Start/Stop Character Transmission115
Code 39 Full ASCII115
Code 39 Quiet Zones116
Code 39 Length Control116
Code 39 Set Length 1117
Code 39 Set Length 2118
Trioptic Code119
Trioptic Code Enable/Disable119
Code 32 (Ital Pharmaceutical Code)119
Code 32 Enable/Disable119
Code 32 Feature Setting Exceptions119
Code 32 Check Character Transmission120
Code 32 Start/Stop Character Transmission120
Code 39 Cip (French Pharmaceutical)121
Code 39 CIP Enable/Disable121
Code 39 Danish Ppt121
Code 39 Danish PPT Enable/Disable121
Code 39 Laposte122
Code 39 Laposte Enable/Disable122
Code 39 Pzn122
Code 39 PZN Enable/Disable122
Code 128123
Code 128 Enable/Disable123
Expand Code 128 to Code 39123
Code 128 Check Character Transmission124
Code 128 Function Character Transmission124
Code 128 Sub-Code Exchange Transmission125
Code 128 Quiet Zones125
Code 128 Length Control126
Code 128 Set Length 1127
Code 128 Set Length 2128
Gs1-128129
GS1-128 Enable129
GS1-128 2D Component129
Code Isbt 128130
ISBT 128 Concatenation130
ISBT 128 Force Concatenation130
ISBT 128 Concatenation Mode131
ISBT 128 Dynamic Concatenation Timeout132
ISBT 128 Advanced Concatenation Options132
Interleaved 2 of 5 (I 2 of 5)133
I 2 of 5 Enable/Disable133
I 2 of 5 Check Character Calculation134
I 2 of 5 Check Character Transmission135
I 2 of 5 Length Control135
I 2 of 5 Set Length 1136
I 2 of 5 Set Length 2137
Interleaved 2 of 5 Cip Hr138
Interleaved 2 of 5 CIP HR Enable/Disable138
Follett 2 of 5138
Follett 2 of 5 Enable/Disable138
Standard 2 of 5139
Standard 2 of 5 Enable/Disable139
Standard 2 of 5 Check Character Calculation139
Standard 2 of 5 Check Character Transmission140
Standard 2 of 5 Length Control140
Standard 2 of 5 Set Length 1141
Standard 2 of 5 Set Length 2142
Industrial 2 of 5143
Industrial 2 of 5 Enable/Disable143
Industrial 2 of 5 Check Character Calculation143
Industrial 2 of 5 Check Character Transmission144
Industrial 2 of 5 Length Control144
Industrial 2 of 5 Set Length 1145
Industrial 2 of 5 Set Length 2146
Code Iata147
IATA Enable/Disable147
IATA Check Character Transmission147
Codabar148
Codabar Enable/Disable148
Codabar Check Character Calculation148
Codabar Check Character Transmission149
Codabar Start/Stop Character Transmission149
Codabar Start/Stop Character Set150
Codabar Start/Stop Character Match150
Codabar Quiet Zones151
Codabar Length Control151
Codabar Set Length 1152
Codabar Set Length 2153
Abc Codabar154
ABC Codabar Enable/Disable154
ABC Codabar Concatenation Mode154
ABC Codabar Dynamic Concatenation Timeout155
ABC Codabar Force Concatenation156
Code 11157
Code 11 Enable/Disable157
Code 11 Check Character Calculation157
Code 11 Check Character Transmission158
Code 11 Length Control158
Code 11 Set Length 1159
Code 11 Set Length 2160
Gs1 Databar™ Omnidirectional161
GS1 Databar™ Omnidirectional Enable/Disable161
GS1 Databar™ Omnidirectional GS1-128 Emulation161
GS1 Databar™ Omnidirectional 2D Component162
Gs1 Databar™ Expanded162
GS1 Databar™ Expanded Enable/Disable162
GS1 Databar™ Expanded GS1-128 Emulation163
GS1 Databar™ Expanded 2D Component163
GS1 Databar™ Expanded Length Control164
GS1 Databar™ Expanded Set Length 1165
GS1 Databar™ Expanded Set Length 2166
Gs1 Databar™ Limited167
GS1 Databar™ Limited Enable/Disable167
GS1 Databar™ Limited GS1-128 Emulation167
GS1 Databar™ Limited 2D Component168
Code 93168
Code 93 Enable/Disable168
Code 93 Check Character Calculation169
Code 93 Check Character Transmission169
Code 93 Length Control170
Code 93 Set Length 1171
Code 93 Set Length 2172
Code 93 Quiet Zones173
Msi173
MSI Enable/Disable173
MSI Check Character Calculation174
MSI Check Character Transmission174
MSI Length Control175
MSI Set Length 1176
MSI Set Length 2177
Plessey178
Plessey Enable/Disable178
Plessey Check Character Calculation178
Plessey Check Character Transmission179
Plessey Length Control179
Plessey Set Length 1180
Plessey Set Length 2181
2D Symbologies183
2D Global Features183
2D Maximum Decoding Time184
2D Structured Append185
2D Normal/Inverse Symbol Control185
Aztec Code186
Aztec Code Enable / Disable186
Aztec Code Length Control186
Aztec Code Set Length 1187
Aztec Code Set Length 2188
China Sensible Code189
China Sensible Code Enable / Disable189
China Sensible Code Length Control189
China Sensible Code Set Length 1190
China Sensible Code Set Length 2191
Data Matrix192
Data Matrix Enable / Disable192
Data Matrix Square/Rectangular Style192
Data Matrix DPM Decoding Safety193
Data Matrix Length Control194
Data Matrix Set Length 1194
Data Matrix Set Length 2195
Maxicode196
Maxicode Enable / Disable196
Maxicode Primary Message Transmission196
Maxicode Length Control197
Maxicode Set Length 1197
Maxicode Set Length 2198
Pdf417199
PDF417 Enable / Disable199
PDF417 Length Control199
PDF417 Set Length 1200
PDF417 Set Length 2201
Micro Pdf417202
Micro PDF417 Enable / Disable202
Micro PDF417 Code 128 GS1-128 Emulation202
Micro PDF417 Length Control203
Micro PDF417 Set Length 1203
Micro PDF417 Set Length 2204
Qr Code205
QR Code Enable / Disable205
QR Code Length Control205
QR Code Set Length 1206
QR Code Set Length 2207
Micro Qr Code207
Micro QR Code Enable/Disable207
Micro QR Code Length Control208
Micro QR Code Set Length 1208
Micro QR Code Set Length 2209
Ucc Composite210
UCC Composite Enable / Disable210
UCC Optional Composite Timer211
Postal Code Selection212
Postnet BB Control213
Motion Features215
Motion Aiming Control215
Motion Sensitivity216
Motionless Timeout216
Wireless Features217
Wireless Beeper Features219
Good Transmission Beep219
Beep Frequency219
Beep Duration220
Beep Volume221
Disconnect Beep221
Docking Beep222
Leash Alarm222
Configuration Updates224
Automatic Configuration Update224
Copy Configuration to Scanner224
Copy Configuration to Base Station224
Batch Features225
Batch Mode225
Send Batch225
Erase Batch Memory226
RF Batch Mode Transmit Delay226
Direct Radio Autolink227
Rf Address Stamping227
Source Radio Address Transmission227
Source Radio Address Delimiter Character228
Real Time Clock (Rtc) Configuration229
Current Date229
Current Time229
Date Tx Format230
Time Tx Format230
Date-Time Separator231
Date-Time Transmission Order232
PBT9500-Only Features233
Bluetooth Security Features233
Bluetooth Security Mode234
Bluetooth PIN Code234
Select PIN Code Length234
Set PIN Code235
Other Bluetooth Features236
Bluetooth Poll Rate236
Power off237
Powerdown Timeout237
Bluetooth HID Variable PIN Code238
Bluetooth HID Alt Mode239
Bluetooth HID Send Unknown ASCII Char239
Bluetooth Max Client240
Bluetooth Friendly Name241
Bluetooth Reconnect Attempt Mode241
HID Country Mode242
PM9500-Only Features245
STAR Radio Protocol Timeout245
STAR Radio Transmit Mode246
Changing System Speed247
Compatibility with PM8500248
Compatibility Mode248
Changing from Normal to Compatible Mode248
Changing from Compatible Mode Back to Normal249
Base Address Stamping250
Base Address Delimiter Character250
Master Header/Terminator ( Prefix/Suffix)251
RS-485 Cradle Address251
RS-485 Slave Minimum Address252
RS-485 Slave Maximum Address252
RS-485 Network Working Mode253
RS-485 Network Warning Message253
RS-485 Transmission Warning Message254
RS-485 Network Baud Rate254
Display and Keyboard Features255
Display Operating Mode255
Display off Timeout256
Backlight Enable256
Display Contrast257
Font Size257
Enable/Disable Buttons258
Configure Actions for Function Keys259
Action Configuration for Function Keys260
Configure Actions for F1260
Configure Actions for F2260
Define Strings261
Set String ID262
Set String Header262
Set String Terminator263
References265
RS-232 Parameters266
RS-232 Only266
RS-232/USB COM Parameters267
Keyboard Interface274
Wedge Quiet Interval274
Intercharacter Delay275
Intercode Delay276
Symbologies277
Datamatrix DPM Decoding Safety277
Set Length277
Data Editing279
Global Prefix/Suffix280
Global AIM ID280
Label ID282
Character Conversion287
Reading Parameters288
Good Read LED Duration288
Scanning Features289
Scan Mode289
Stand Mode off Time290
Scanning Active Time291
Aiming Duration Time292
Flash on Time293
Flash off Time294
Multiple Labels Ordering by Code Symbology295
Motion Features297
Motionless Timeout297
Wireless Features298
Automatic Configuration Update298
RF Address Stamping298
PM9500-Only Features300
Changing System Speed in Normal Mode300
Bluetooth-Only Features300
Message Formatting303
Cursor Control304
Font Selection304
Clearing Display304
LED and Beeper Control305
Setting RTC305
Technical Specifications307
Imager Labeling311
Standard Cable Pinouts312
LED and Beeper Indications313
Error Codes314
Base Station Indications (Cordless Models ONLY)314
Sample Bar Codes315
Standard Defaults319
Keypad333
Scancode Tables335
Control Character Emulation335
Single Press and Release Keys335
Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE336
Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode338
Digital Interface340
Ibm31Xx 102-Key341
Ibm Xt342
Microsoft Windows Codepage 1252343

Brand	Datalogic
Model	PowerScan 9500 Series
Category	Barcode Reader
Language	English

Datalogic PowerScan 9500 Series User Manual

Table of Contents

Questions and Answers:

Datalogic PowerScan 9500 Series Specifications

Related product manuals
