Datalogic PowerScan 9500 Series User Manual

Technical Specifications
302 PowerScan™ PD9530/PBT9500/PM9500
Standard Cable Pinouts
The data below provides standard pinout information for the interface cable.

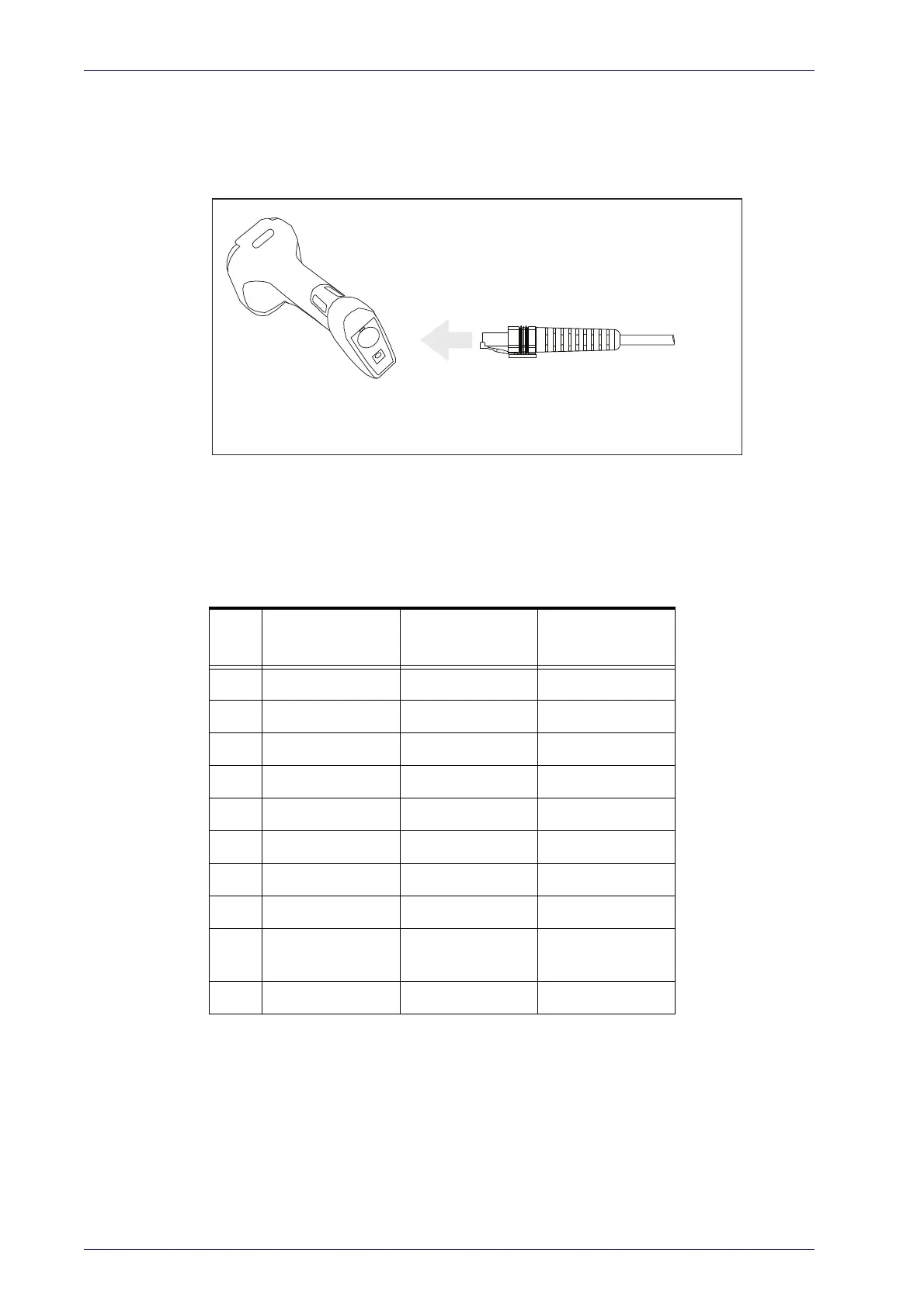

Figure 11. Standard Cable Pinouts: Handheld
The signal descriptions in Table 52 apply to the connector on the reader and
are for reference only.
Table 52. Standard Cable Pinouts
Pin RS-232 USB
Keyboard
Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9
DATAOUT (PC
si
de
)
10 CTS (in)
