Global Prefix/Suffix
Product Reference Guide 99
5. If less than the expected string of 20 characters are selected, scan the ENTER/EXIT bar
code to terminate the string.
6. Scan the ENTER/EXIT bar code once again to exit Programming Mode.
7. The resulting message string would appear as follows:
Scanned bar code data:12345
Resulting message string output: $12345
This option sets up to 20 characters each from the set of ASCII characters or any hex val-
ue from 00 to FF. To configure this feature, scan the ENTER/EXIT bar code to place
the unit in Programming Mode, then the “Set Global Prefix” or “Set Global Suffix,” bar
code followed by the digits (in hex) from the Alphanumeric characters in Appendix E,
Keypad
representing your desired character(s). If less than the expected string of 20 char-
acters are selected, scan the ENTER/EXIT bar code to terminate the string. Reference
the section,
Example: Setting a Prefix on page 98, for more information. Exit program-
ming mode by scanning the ENTER/EXIT bar code once again.

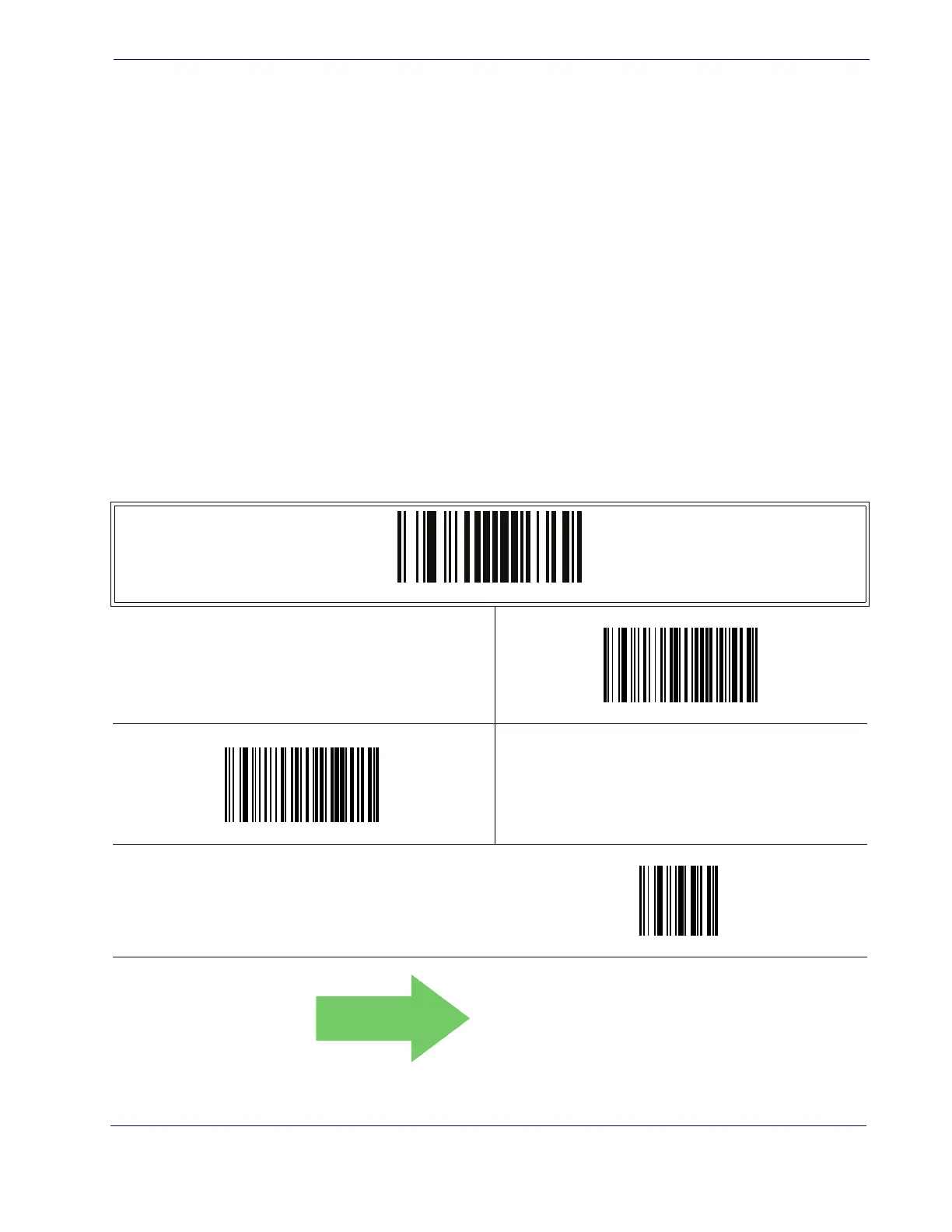

ENTER/EXIT PROGRAMMING MODE
Set Global Prefix
Set Global Suffix
Make a mistake? Scan the CANCEL bar code to abort and
n
ot save the entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
No Global Prefix
Global Suffix = 0x0D (CR)
