To Next Page

To Previous Page

Enter/Exit Programming Mode UPC-E

94 QuickScan™ I QM21X1 / QBT21X1

UPC-E

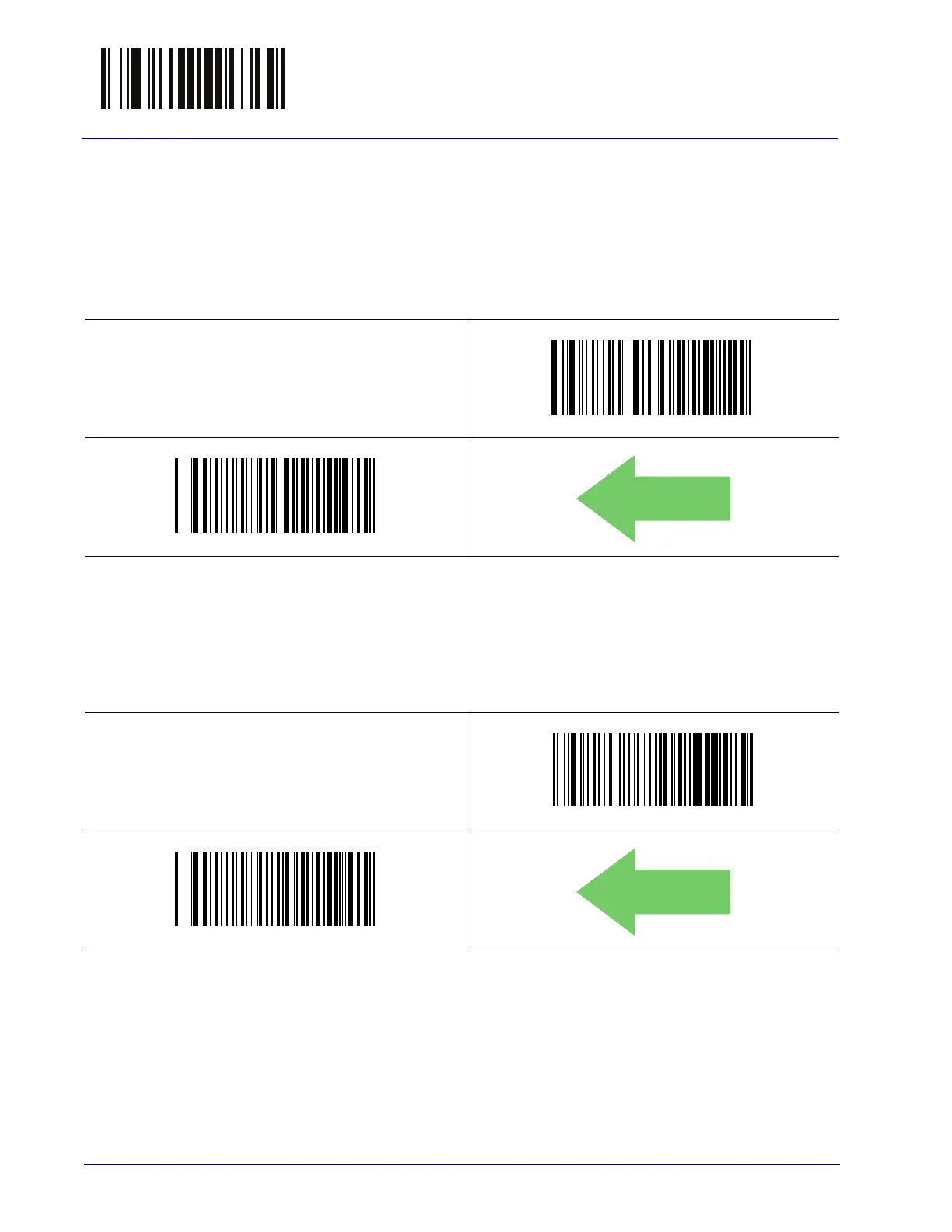

The following options apply to the UPC-E symbology.

UPC-E Enable/Disable

When disabled, the reader will not read UPC-E bar codes.

UPC-E Check Character Transmission

Enable this option to transmit the check character along with UPC-E bar code

data.

$CEBEN00

UPC-E = Disable

$CEBEN01

UPC-E = Enable

DEFAULT

$CEBCT00

UPC-E Check Character Transmission = Don’t Send

$CEBCT01

UPC-E Check Character Transmission = Send

DEFAULT

Default Chapter3
