Symbologies Enter/Exit Programming Mode

Product Reference Guide

213

IATA

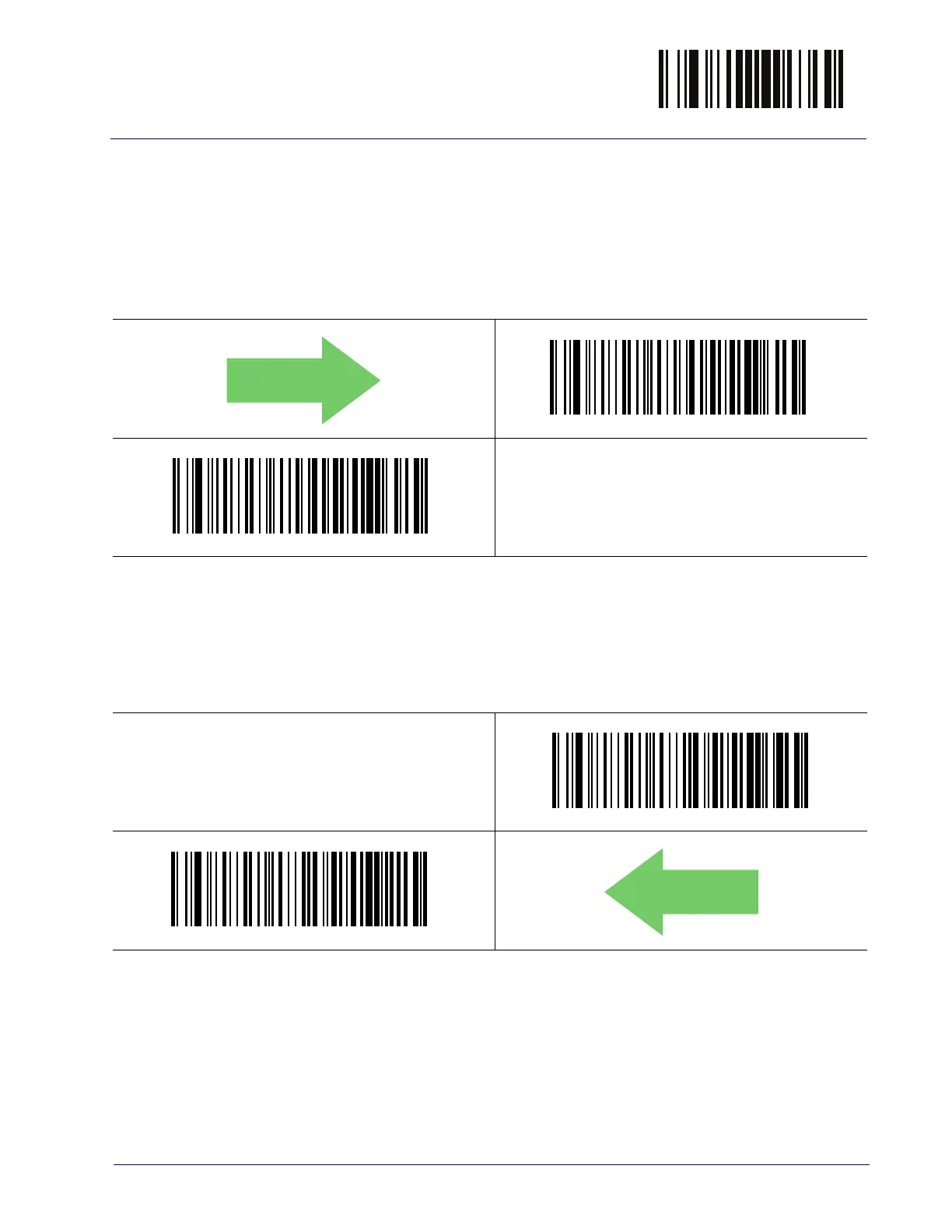

The following options apply to the IATA symbology.

IATA Enable/Disable

Enables/Disables the ability of the reader to decode IATA labels.

IATA Check Character Transmission

Enables/Disables calculation and verification of IATA Industrial 2 of 5 check

character.

$CIAEN00

IATA = Disable

$CIAEN01

IATA = Enable

DEFAULT

$CIACT00

IATA Check Character Transmission = Disable

$CIACT01

IATA Check Character Transmission = Enable

DEFAULT
