The specially punched steel ring has been designed to obtain the most precise rotation
possible in terms of angle calibration, steadiness and consequent absence of torque
between both sides of device.
5 Place a locking washer and then a flat washer onto each knob. Tighten the SC6000
Controller to its bracket by screwing the knobs into their holes – one on each side.

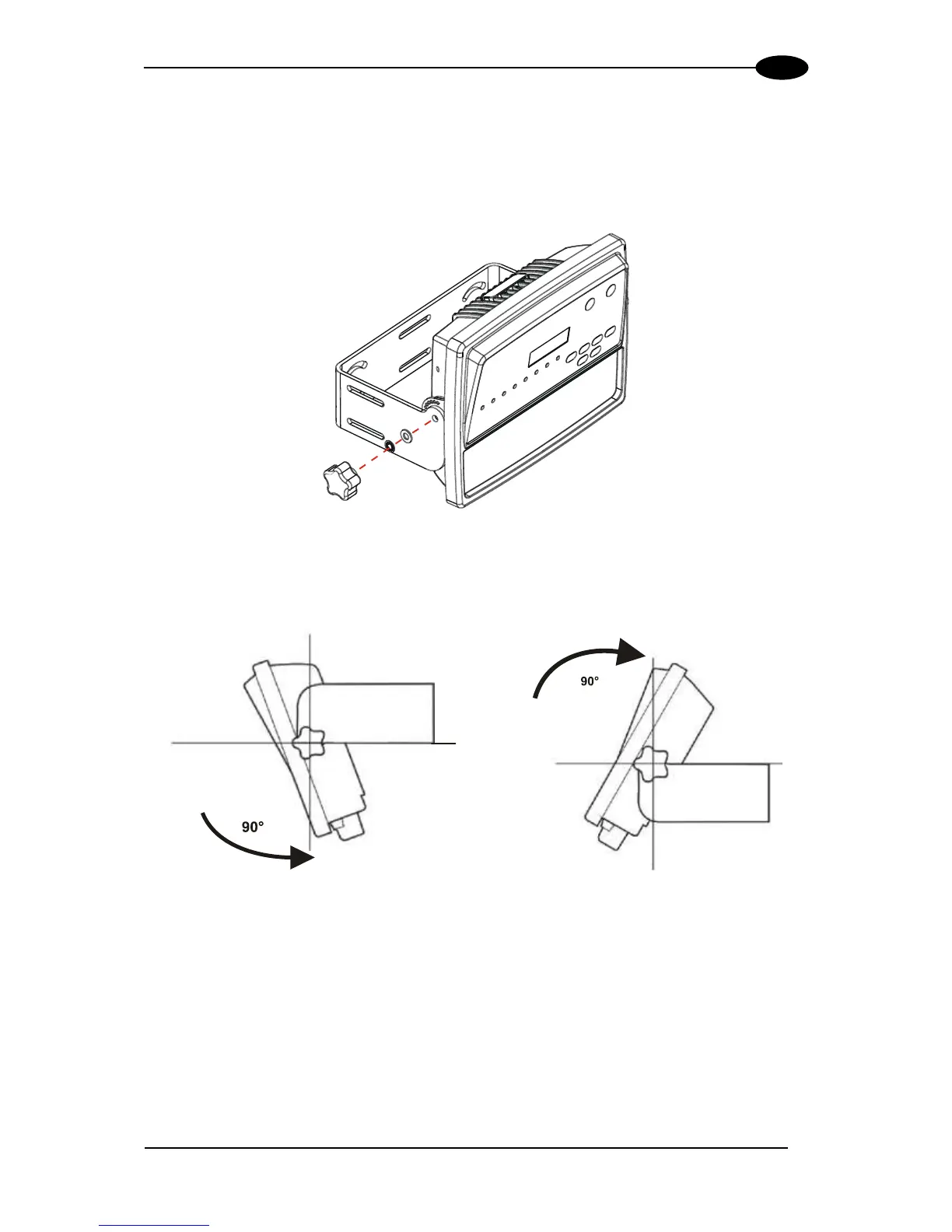

Figure 7 – Mounting the SC6000 Controller on the bracket
The SC6000 Controller can rotate on its mounting bracket up to 90° with respect to the
mounting bracket position. See figure below for suggested positions:
Figure 8 – Suggested Mounting Positions
